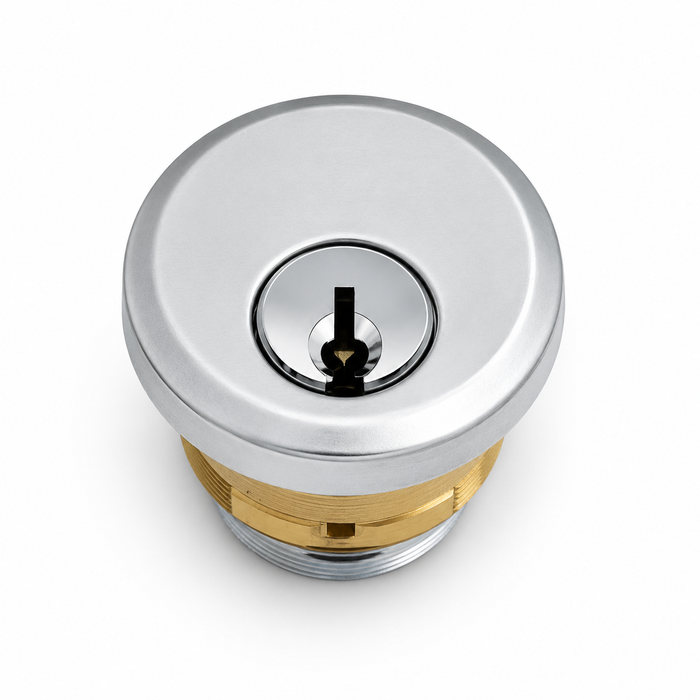

Adams Rite 4036 Mortise Cylinder with Five-Pin Security, 628 Clear Anodized finish, top-down view showing keyway and threaded brass body

Adams Rite 4036 Mortise Cylinder with Five-Pin Security

(No reviews yet) Write a Review

Model: 4036-01-01-628
$62.13
$48.16
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$62.13
$48.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite 4036 Mortise Cylinder with Five-Pin Security

Grade 1 Mortise Cylinder for Adams Rite Deadlocks and Deadlatches

The Adams Rite 4036 Mortise Cylinder delivers five-pin tumbler security engineered specifically for Adams Rite deadlocks and deadlatches. The standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter cylinder is built to Grade 1 tolerances with close-tolerance manufacturing that ensures precise mating and reliable operation with Adams Rite locking mechanisms. The aluminum shell is available in three anodized finishes with a bright chrome plug, and includes a 1/4" [6.4 mm] thick trim ring suited for 1-3/4" [44.5 mm] thick doors.

Lock Compatibility

  • For MS Locks, Deadlatches & 2190: Standard Adams Rite MS® cam configuration for MS-series locks, deadlatches, and the 2190 series
  • For 4070 Deadlock: Configured for the Adams Rite 4070 Deadlock
  • For 2331 Deadlock: Configured for the Adams Rite 2331 Deadlock

Select the correct Lock Type Option at checkout to ensure the cylinder ships with the proper cam for your specific Adams Rite lock.

Features & Benefits

  • Five-pin tumbler security
  • Grade 1 construction with close-tolerance manufacturing
  • Adams Rite MS® cam for positive engagement
  • 1/4" [6.4 mm] trim ring included - suits 1-3/4" [44.5 mm] doors
  • Available Keyed Alike or Keyed Different
  • Multiple keyways available

Technical Specifications

  • Length: 1" [25.4 mm]
  • Diameter: 1-5/32" [29.4 mm]
  • Cam: Adams Rite MS® cam
  • Shell Material: Aluminum
  • Plug Finish: Bright Chrome
  • Trim Ring: 1/4" [6.4 mm] thick
  • Grade: Grade 1
  • Warranty: 5 Years

Available Finishes

  • 313 - Dark Bronze Anodized
  • 335 - Black Anodized
  • 628 - Clear Anodized

Installation Notes

Verify cam compatibility with your specific Adams Rite lock model before ordering - the Lock Type Option selected at checkout determines the cam configuration shipped. Refer to the Adams Rite installation instructions (linked below) and the parent device documentation for proper integration. Minimum door thickness: 1/2". Non-handed.

Product Specs

Product Group:
Parts and Accessories
Series:
4036 Series
Grade:
Grade 1
Warranty:
5 Year
Product Subgroup:
Cylinders
Subcategory:
Cylinder and Accessories
Door Type:
Deadlock/Deadlatch & Wood Door
Commercial/Residential:
Commercial
Lock Type:
Mortise
Product Model:
4036
Door Hand Direction:
Non-Handed
Door Thickness Range:
1/2" Minimum
Product Category:
Parts and Accessories
Department:
Door Hardware
Product Type:
Cylinders

Adams Rite 4036-01-01-628 – Frequently Asked Questions

1) Which Adams Rite 4036 cylinder do I order for a 4070 deadlock versus an MS deadlock?
The cam is what separates them, and it's set by the Lock Type Option you pick when ordering. The 4036 comes in three configurations: For MS Locks, Deadlatches and 2190; For 4070 Deadlock; and For 2331 Deadlock. The MS option carries the standard Adams Rite MS cam and covers the MS-series deadlocks, the deadlatches and the 2190. The 4070 and the 2331 each take their own cam. Read the model off the lock body before you order, because a cylinder with the wrong cam will still thread into the lock but won't throw the bolt.
2) My Adams Rite MS deadlock cylinder is worn out. Will a 4036 drop straight in?
That's the job it's built for. The 4036 is the standard Adams Rite size, 1 inch [25.4 mm] long and 1-5/32 inch [29.4 mm] in diameter, five-pin, with the Adams Rite MS cam, so it mates with the same prep the old one came out of. Three things to match on the order: the Lock Type Option (MS Locks, Deadlatches and 2190 for MS-series hardware), the finish, and the keying. Pull the old cylinder and check the cam against what you receive if there's any doubt about which Adams Rite lock body is in the door.
3) Can I get Adams Rite 4036 cylinders keyed alike so one key runs every storefront door in the building?
Keyed Alike is one of the two keying choices on the 4036, the other being Keyed Different. The useful part for a mixed building: keying is independent of the cam. Keyed Alike is offered with the MS Locks/Deadlatches/2190 cam, with the 4070 Deadlock cam, and with the 2331 Deadlock cam, so a set covering three different Adams Rite lock models can still run on a single key. Order the whole set together as one keyed alike group.
4) Will a Corbin Russwin 1000 mortise cylinder work in an Adams Rite MS deadlock in place of the 4036?
Not as a drop-in. The Adams Rite 4036 is a 1 inch [25.4 mm] five-pin mortise cylinder supplied with the Adams Rite MS cam, and that cam is what engages an MS lock, a deadlatch, or the 2190. The Corbin Russwin 1000 Grade 1 mortise cylinder is a 1-1/2 inch body with an A02 straight cam. Both thread into a mortise lock body, but the cam profile and the cylinder length are different, so the Corbin Russwin part belongs to a lock prepped for the A02 straight cam at that length. On an Adams Rite deadlock the 4036 is ordered with the cam matched to the lock, in three configurations: for MS locks, deadlatches and the 2190, for the 4070 deadlock, and for the 2331 deadlock.
5) Can a Schlage 20-021 or 20-022 rim cylinder be used where the Adams Rite 4036 goes?
No, those are a different cylinder format. The Adams Rite 4036 is a mortise cylinder, 1 inch [25.4 mm] long and 1-5/32 inch [29.4 mm] in diameter, that threads into the Adams Rite lock body and turns the Adams Rite MS cam. The Schlage Commercial 20-021 is a 6-pin rim cylinder with a vertical tailpiece cam and two keys, and the 20-022 is the same 6-pin rim cylinder with a horizontal tailpiece cam. A rim cylinder drives a tailpiece into a device mounted on the face of the door rather than a cam inside a mortise pocket, so the two are not interchangeable. The Corbin Russwin 3070 6-pin rim cylinder housing with a 1-7/8 inch tailpiece is a rim part as well.
6) Our building is keyed on interchangeable cores. What takes the place of the Adams Rite 4036 in that system?
The Adams Rite 4036 is a fixed five-pin mortise cylinder built to Grade 1 with the Adams Rite MS cam, so it is keyed as a complete cylinder rather than by swapping a core. Interchangeable core options in the same cylinder family include the BEST Peaks 1CB 150 Series interchangeable core cylinder, the BEST 1C Series 1C5 standard 5-pin cylinder core, the Schlage Commercial 20-057 6-pin FSIC rim cylinder with a convertible tailpiece cam, and the Corbin Russwin 1080, a 1-1/2 inch LFIC mortise cylinder, 6-pin, for Schlage L9000 mortise locks with an A01 Schlage L cam. Each of those goes into a lock or housing prepped for that core format. Where the opening is an Adams Rite deadlock or deadlatch, the 4036 is the part that carries the MS cam, and it is available Keyed Alike or Keyed Different with multiple keyways for standardizing a set of doors.
7) I need a mortise cylinder for a mortise lockset that isn't Adams Rite. Will the 4036 work?
No. The 4036 is engineered specifically for Adams Rite deadlocks and deadlatches, and at 1 inch [25.4 mm] long with an MS cam it's the Adams Rite pattern, not the length or cam a conventional mortise lock body takes. For a standard mortise lockset, the Corbin Russwin 1000 Series Grade 1 mortise cylinder in 1-1/2 inch with an A02 straight cam, or the 1070 Series 1-1/4 inch 6-pin mortise housing with an A01 cloverleaf cam, are the right shape. If the lock is a Schlage L9000, the Corbin Russwin 1080 Series 1-1/2 inch large format interchangeable core cylinder is listed with the A01 Schlage L cam for it.
8) Is the Adams Rite 4036 only for aluminum storefront, or can it go in a wood door?
Wood doors are covered. What the 4036 actually needs is an Adams Rite deadlock or deadlatch mortised into the door to receive it, and that hardware goes into wood as readily as into an aluminum stile. Door material isn't the constraint here; the lock body and the cam configuration are. Minimum door thickness is 1/2 inch.
9) Does the Adams Rite 4036 take an interchangeable core?
It doesn't. The 4036 is a conventional five-pin tumbler cylinder with a fixed plug, keyed at the factory as Keyed Alike or Keyed Different. There's no core to pull with a control key. If a facility is standardized on interchangeable core keying, that's a different family of hardware rather than an option on this cylinder: the BEST 1CB 150 Series interchangeable core cylinder and the BEST 1C Series standard 5-pin core are the IC parts, in their own housings for their own applications.
10) A BEST 12E is listed at 1-5/32 inch diameter, the same as the Adams Rite 4036. Are they interchangeable?
The diameter matches but the function does not. The BEST 12E Series part at 1-5/32 inch diameter is a dummy rim cylinder, which fills a rim cylinder prep and provides the outside appearance without keyed operation. The Adams Rite 4036 is a working five-pin mortise cylinder of the same 1-5/32 inch [29.4 mm] diameter, 1 inch [25.4 mm] long, that turns the Adams Rite MS cam to operate an MS lock, a deadlatch, the 2190, the 4070 deadlock, or the 2331 deadlock. Matching the hole size does not make one do the other one's job.
11) Is there a drill-resistant or patented-key cylinder to use instead of the Adams Rite 4036 five-pin?
The Adams Rite 4036 is a Grade 1 five-pin tumbler mortise cylinder with an aluminum shell and bright chrome plug. For a drill-resistant, patent-protected key system, the BEST 1CDF is a drill resistant preferred patented interchangeable core cylinder, 7-pin, brass, in the 150 Series. The BEST Peaks 1CB 150 Series interchangeable core cylinder is the other patented-core option in the same group. Both are interchangeable core formats that install in a lock or housing prepped to receive a core, rather than a threaded mortise cylinder carrying the Adams Rite MS cam, so the choice depends on which lock body is in the door.
12) The Adams Rite 4036 is five-pin. What six-pin mortise cylinders are in the same class?
The Adams Rite 4036 is a 1 inch [25.4 mm] five-pin mortise cylinder built to Grade 1 with the Adams Rite MS cam. Six-pin mortise cylinders in the same class include the Detex MC65, a commercial grade 6-pin mortise cylinder, 1-1/8 inch, with a Schlage C keyway; the Corbin Russwin 1070, a Grade 1 series 1-1/4 inch 6-pin mortise housing with an A01 cam; and the Corbin Russwin 1000, a Grade 1 mortise cylinder in a 1-1/2 inch length with an A02 straight cam. Length, keyway and cam all differ from the 4036, and it is the cam that determines which lock body the cylinder will drive, so match the cam to the lock first and the pin count second.
13) My opening has a key-in-lever lock, not an Adams Rite deadlock. Does the 4036 fit it?
No. The Adams Rite 4036 is a mortise cylinder made for Adams Rite deadlocks and deadlatches, ordered for MS locks, deadlatches and the 2190, for the 4070 deadlock, or for the 2331 deadlock. Key-in-knob and key-in-lever locks take a different cylinder: the Kaba Ilco 1539 Series is a key-in-knob and lever universal cylinder, the Kaba Ilco 1599 is a key-in-knob replacement cylinder, the Kaba Ilco 1579 is a knob and lever cylinder for Sargent, and the Falcon A23161-05 G is a key-in-lever cylinder in the RU/T Series with a 6-pin G keyway, keyed different, supplied with two cut keys.
14) What cylinder do I order for a conventional deadbolt rather than an Adams Rite deadlock?
The Adams Rite 4036 is a mortise cylinder engineered for Adams Rite deadlocks and deadlatches, with the Adams Rite MS cam. For a conventional deadbolt, the Kaba Ilco 1549 Series is a key-in-deadbolt cylinder, the Medeco 1012040 is a 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts, and the Medeco 1075127 is a 5-pin rim type lazy motion single cylinder for handlesets and deadbolts. Those drive a tailpiece through the deadbolt, where the 4036 turns a cam inside the Adams Rite lock body, so identify the lock in the door before ordering either one.
15) We spec Schlage C keyway across the property. Which cylinder matches that on a commercial opening?
The Detex MC65 is a 1-1/8 inch 6-pin commercial grade mortise cylinder cut to the Schlage C keyway, and the Schlage Commercial 20-057-C is a full size interchangeable core cylinder in the C keyway with a 643E Aged Bronze finish. The Adams Rite 4036 is offered in multiple keyways and can be ordered Keyed Alike or Keyed Different, in 313 Dark Bronze Anodized, 335 Black Anodized or 628 Clear Anodized, and it is the part that carries the Adams Rite MS cam for an MS lock, deadlatch, 2190, 4070 deadlock or 2331 deadlock. Where the opening is an Adams Rite deadlock, keyway selection happens on the 4036 rather than by substituting one of the others.
16) What Adams Rite 4036 finish matches dark bronze anodized storefront doors?
313 Dark Bronze Anodized is the match. The other two are 335 Black Anodized and 628 Clear Anodized, and all three are aluminum shells. Worth knowing before you compare it to the existing doors: the plug is bright chrome on every finish, so the keyway face reads silver regardless of which shell you order. All three finishes are available Keyed Alike or Keyed Different and with any of the three cam configurations.
17) Is the Adams Rite 4036 cylinder handed? Do I need to know if the door swings left or right?
Non-handed, so the same cylinder goes into a left hand or right hand opening and you don't need to state the swing. The two things you do have to specify are the Lock Type Option, which sets the cam for your particular Adams Rite lock, and whether you want it Keyed Alike or Keyed Different.
18) Is a five-pin Adams Rite 4036 enough security for a commercial storefront entrance?
It's a Grade 1 cylinder rated for commercial use, with five-pin tumbler security and close-tolerance machining so the MS cam engages the lock positively rather than sloppily. That's the level Adams Rite builds its own deadlock and deadlatch cylinders to. Where a job spec calls for something beyond five-pin, the answer isn't a different 4036 option, since keying and cam are the only variables here; it's a different cylinder family altogether.
19) Is the Adams Rite 4036 the right cylinder for an Emtek handleset?
No, the Adams Rite 4036 is a mortise cylinder configured for Adams Rite deadlocks, deadlatches and the 2190. For an Emtek handleset the matching parts are the Emtek CY4 cylinder, the Medeco 1065140, a 5-pin retrofit cylinder for the Arrow JL interconnected lock and for Emtek handleset and deadbolt outside cylinders, and the Medeco 1065244, a 5-pin rim lazy motion rim type cylinder with an Emtek tailpiece. Those match the tailpiece the handleset expects, which is a different drive from the Adams Rite MS cam.
