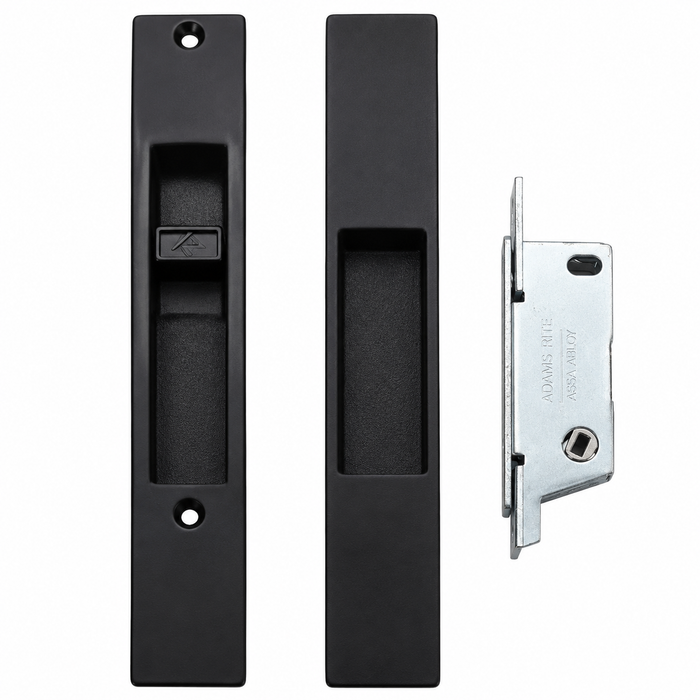

Adams Rite 4430 Flush Lockset without Cylinder for Sliding Doors – Black Satin finish, front and back escutcheon plates shown with latch body

Adams Rite 4430 Flush Lockset without Cylinder, Black Satin

(No reviews yet) Write a Review

Model: 4430-09-00-00IB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.00
$67.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite 4430 Flush Lockset without Cylinder: Black Satin Finish

The Adams Rite 4430 is a flush-mounted deadlock for narrow-stile aluminum sliding doors, combining the proven MS1847 deadlock mechanism with economical ABS resin escutcheons. This listing is for the lockset without cylinder - a standard Adams Rite MS® cam mortise cylinder must be ordered separately and installed by the end user or installer.

Lock Face & Stile Thickness Options

Select the combination that matches your door at the variant selector:

  • Lock Face: Without Lock Face | Radius | Radius Stainless Steel | Square | Square Stainless Steel
  • Stile Thickness: 1" to 1-5/16" | 1-3/8" to 1-5/8" | 1-3/4" to 2"

Key Specifications

  • Backset (variable): 5/8" to 1-9/32"
  • Minimum stile depth: Backset + 9/16" [14.3 mm] clear depth
  • Product dimensions: 1-1/4" x 8-29/32" x 1-29/64"
  • Bolt: Adjustable, self-protecting stainless steel
  • Escutcheons: ABS resin, flush-mounted
  • Finish: Black Satin (US19)
  • Cylinder: Accepts standard Adams Rite MS® cam mortise cylinders (not included)
  • Compatible strikes: Adams Rite electric strikes for access control integration
  • Door types: Narrow-stile aluminum; hollow metal and wood door options available
  • UL Listed models: Available
  • Warranty: 5-year manufacturer warranty
  • Brand: Adams Rite, an ASSA ABLOY Group brand

Operation

The 4430 operates via a slide button that engages and retracts the MS1847 deadbolt. No key is required from the interior; exterior key operation requires the separately purchased cylinder. Refer to the Installation Instruction PDF (linked above) for door prep templates, cutout dimensions, and torque specifications.

Product Specs

Product Group:
Sliding Door and Barn Door Hardware
Series:
4430 Series
Warranty:
5 Year
Product Subgroup:
Deadlocks
Subcategory:
Flushlocks
Commercial/Residential:
Commercial
Product Model:
4430
Backset (Distance):
5/8 to 1 9/32
Product Dimension:
1 1/4" x 8 29/32" x 1 29/64"
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware
Product Type:
Flushlocks

Adams Rite 4430-09-00-00IB – Frequently Asked Questions

1) Does the Adams Rite 4430 flush lockset come with a cylinder, and what cylinder do I need to buy?
No cylinder is included with the 4430. It takes a standard Adams Rite MS cam mortise cylinder, bought separately and fitted at the door. Everything else is the same as a cylinder-supplied lock: the MS1847 deadlock body, the adjustable stainless steel bolt and the flush ABS resin escutcheons. Buying it this way is what most locksmiths and fleet accounts want, because the keying is yours to specify rather than the factory's. Inside the door there is no cylinder involved at all, so nobody needs a key to get out; a slide button throws and retracts the bolt from the interior side.
2) How do I know which Adams Rite 4430 to order for my sliding door stile thickness?
Measure the thickness of the sliding door stile where the lock goes, then match it to one of three builds of the 4430: 1 inch to 1-5/16 inch, 1-3/8 inch to 1-5/8 inch, or 1-3/4 inch to 2 inch. That measurement sets the length of the hardware through the stile, so a lock built for the 1 inch to 1-5/16 inch band will not pull up tight on a 2 inch stile and the thick-stile version will stand proud on a thin one. Every one of the three thickness builds is offered with each lock face choice, so pick thickness and face independently.
3) Will an Adams Rite 4430 line up with the cylinder hole already cut in my door?
Often yes, because the backset on the 4430 is variable rather than fixed. It adjusts anywhere from 5/8 inch to 1-9/32 inch, so one lock covers a spread of existing hole positions instead of forcing you to match a single backset like you would on a bored lock. Measure from the edge of the stile to the center of the existing hole; if it falls in that band, the 4430 can be set to it. The lock body itself measures 1-1/4 x 8-29/32 x 1-29/64 inches, and Adams Rite publishes the door prep template and cutout dimensions for both the round and square face options in the installation instructions, so you can lay the new prep over the old one before you cut anything.
4) Can I put an Adams Rite 4430 flush lockset on a wood or hollow metal door?
The 4430 is built for narrow stile aluminum sliding doors, and that is where it belongs. It mounts flush into the stile and works off a variable backset in the 5/8 inch to 1-9/32 inch range, which is narrow stile geometry, not the geometry of a wood or hollow metal swinging door. Adams Rite does make hollow metal and wood door versions, so ask for those rather than trying to adapt this one.
5) What is the difference between the radius and square lock face on the Adams Rite 4430, and which one do I pick?
The face has to match the profile of the stile it lands on. Radius suits a rounded stile face, square suits a square-edged one, and both shapes are also offered with a stainless steel face for entrances that see weather or heavy hand traffic. There is also a Without Lock Face option, which supplies the lockset with no face plate. Five face choices in total: Without Lock Face, Radius, Radius Stainless Steel, Square, and Square Stainless Steel. Get this wrong and the lock functions fine but sits badly against the stile, so look at the door before you order.
6) Can the Adams Rite 4430 be tied into an access control system with an electric strike?
Yes. The 4430 works with Adams Rite electric strikes, which is how it gets integrated into access control. Worth understanding where the intelligence sits: the lock itself stays mechanical, a slide button throws and retracts the MS1847 deadbolt from inside and a separately ordered MS cam cylinder keys it from outside. The electrified part lives in the frame at the strike, so your card reader, keypad or intercom releases the strike while the lock keeps working by key and button regardless of power state.
7) Does anyone need a key to unlock an Adams Rite 4430 from the inside?
No key inside. A slide button on the interior escutcheon throws and retracts the deadbolt, so a tenant or a member of staff can release the door with a thumb. The key side is the exterior only, and that requires the MS cam mortise cylinder that gets ordered separately. For a property manager running a bank of sliding entrances, that means one keyway to manage on the outside and nothing for occupants to carry on the inside.
8) Is the Adams Rite 4430 flush lockset tough enough for a commercial entrance that gets used all day?
It is a commercial deadlock, not a residential one. The bolt is adjustable, self-protecting stainless steel, so it resists a blade attack at the gap between the door and the jamb, and it is the same MS1847 deadlock mechanism Adams Rite uses across its narrow stile line. Where the economy shows is the escutcheons, which are ABS resin rather than metal; if the entrance takes carts, keys and knuckles all day, order one of the stainless steel lock faces (radius or square) to put metal at the point of contact.
9) What finish is the black Adams Rite 4430 flush lockset, and will it match my other door hardware?
Black Satin, US19. That is the standard black architectural finish code, so it lines up with US19 pulls, closers and exit hardware already on the openings rather than reading as a different black. The escutcheons carrying that finish are ABS resin and sit flush in the stile. If you order either stainless steel lock face option, the face itself is stainless, so plan on a bright metal face against the black escutcheon rather than an all-black assembly.
10) What exactly is an Adams Rite 4430, and how is it different from the other 4400 flush locks?
Model 4430, part of the Adams Rite 4430 Series, is a flush lockset for narrow stile aluminum sliding doors: the MS1847 deadlock mechanism with flush ABS resin escutcheons, an adjustable stainless steel bolt and a variable 5/8 inch to 1-9/32 inch backset. Ordering it comes down to two decisions, the lock face (Without Lock Face, Radius, Radius Stainless Steel, Square, or Square Stainless Steel) and the stile thickness band (1 inch to 1-5/16 inch, 1-3/8 inch to 1-5/8 inch, or 1-3/4 inch to 2 inch), which is fifteen buildable combinations. The version described here is supplied without a cylinder and finished Black Satin, US19.
