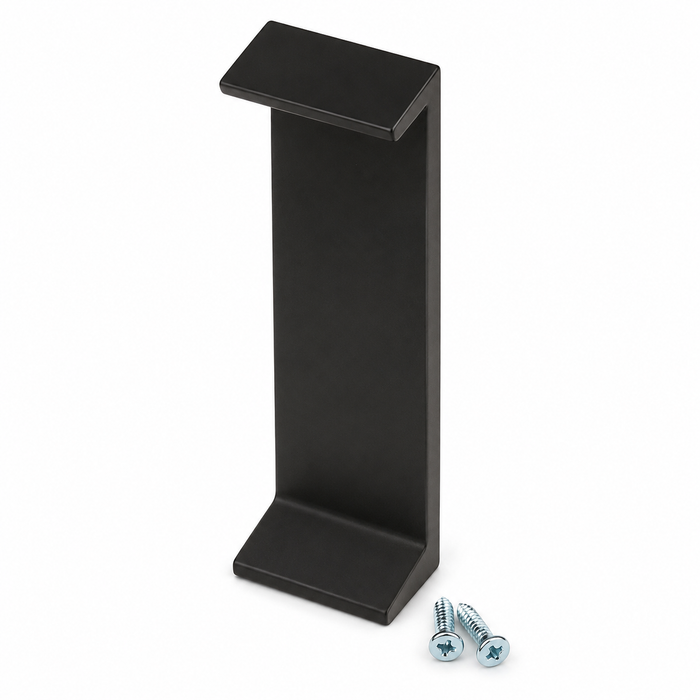

Adams Rite 7100 Series Electric Strike Lip Extension Kit - 1.50 Inch Reach Extension

Adams Rite 7100 Series Electric Strike Lip Extension Kit - 1.50 Inch Reach Extension

(No reviews yet) Write a Review

Model: 910171

In Stock (leaves warehouse same day if ordered before 3pm ET)

$27.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite 7100 Series Electric Strike Lip Extension Kit - 1.50 Inch Reach Extension

Professional Strike Lip Extension for Enhanced Door Alignment

The Adams Rite 7100 Series Electric Strike Lip Extension Kit provides a precise 1.50-inch extension solution for 7100 Series Electric Strikes. This specialized component increases strike lip reach to accommodate deeper frames and unusual clearance gaps, particularly in glass aluminum storefront systems where standard lip dimensions may not provide adequate alignment. Manufactured with precision engineering to ensure secure fit and consistent performance while maintaining electric strike functionality and integrity.

Professional Features & Benefits

  • 7100: For aluminum jambs
  • 7101: For aluminum door stiles
  • Accepts Adams Rite and cylindrical latchbolts with 1/2" to 5/8" projection
  • Fail-safe / fail-secure: factory configured and field selectable
  • Available in 12, 16, or 24 V AC and DC
  • DC continuous duty — silent operation
  • AC intermittent duty — "buzzes" on activation
  • Compact: fits aluminum jamb sections as shallow as 1-5/8"
  • Bolt retaining keeper in stainless steel
  • Case: 1" × 3-3/8" × 1-5/8" deep

Technical Specifications

  • Door Application: Aluminum jamb (7100) or aluminum stile (7101)
  • Latch Projection: 1/2" to 5/8" [12.7–15.9 mm]
  • Voltage: 12, 16, or 24 V AC/DC
  • Current Draw: 0.33A at 12 VDC; 1.42A at 12 VAC; 0.22A at 16 VDC; 0.63A at 16 VAC; 0.17A at 24 VDC; 0.74A at 24 VAC
  • Fail Safe / Fail Secure: Factory configured, field selectable
  • Case: 1" × 3-3/8" × 1-5/8" deep
  • Shipping Weight: 2 lbs

Installation & Operation

This lip extension component is designed for use with compatible Adams Rite 7100 Series Electric Strikes. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Glass Aluminum Storefront Systems
  • Commercial Building Entry Points
  • Retail Establishment Access Control
  • Office Building Security Systems
  • Educational Facility Door Hardware
  • Healthcare Institution Access Points
  • Government and Municipal Buildings

Why Choose Adams Rite Quality?

Adams Rite electric strike components deliver professional-grade reliability with precision manufacturing designed for demanding commercial applications. Each lip extension kit maintains the operational integrity of 7100 Series Electric Strikes while providing the exact dimensional adjustments needed for challenging installation conditions. Engineered for consistent performance where dependable access control hardware is essential.

Manufacturer Resources

Adams Rite Product Catalog

Product Specs

Subcategory:
Electric Strike Parts
Function::
Extends strike lip reach for 7100 Series Electric Strikes
Product Group:
Parts and Accessories
Product Category:
Lock Components & Accessories
Department:
Door Hardware
Commercial/Residential:
Commercial
Product Subgroup:
Parts and Accessories
Product Type:
Lip Extension

Adams Rite 910171 – Frequently Asked Questions

1) What does the Adams Rite 7100 lip extension kit actually do?
It extends the strike lip reach of a 7100 Series electric strike by 1.50 inches, so the lip reaches back to the latch when the frame is deeper than normal or there is an unusual gap between door and jamb. It is a component for an existing 7100 strike, not a strike on its own.
2) When do I need a lip extension on an aluminum storefront electric strike?
When the standard lip does not close the distance to the latchbolt. On glass aluminum storefront work the jamb can sit deeper, or the clearance gap between door and frame runs wider than the strike was cut for, and the latch then rides past or short of the keeper. The 1.50 inch extension pushes the lip out to meet it. If your standard 7100 lip already lines up with the latch, you do not need this part.
3) Will the 7100 electric strike work with my existing latchbolt?
The 7100 accepts Adams Rite and cylindrical latchbolts with a projection of 1/2 inch to 5/8 inch (12.7 to 15.9 mm). Measure the throw on the lock you already have. A deadbolt or a latch throwing more than 5/8 inch is outside what this strike is built to take, and the lip extension does not change that limit.
4) Will a 7100 electric strike fit a shallow aluminum jamb?
Yes, down to 1-5/8 inch jamb sections. The case measures 1 x 3-3/8 x 1-5/8 inches deep, which is what lets it drop into narrow storefront framing where a standard commercial strike will not go.
5) Does the lip extension kit come with the electric strike?
No. It is an add-on component for a 7100 Series electric strike you already have or are buying separately. Order the strike itself in the voltage and fail mode you need, then add the extension kit if the lip has to reach an extra 1.50 inches.
6) What is the difference between the Adams Rite 7100 and 7101?
Mounting location. The 7100 goes in an aluminum jamb, the 7101 mounts in an aluminum door stile (used on pairs where the strike sits in the inactive leaf rather than the frame). Pick by where the strike has to live on your opening.
7) Is the Adams Rite 7100 strike fail-safe or fail-secure?
Either. It ships factory configured one way and is field selectable, so an installer can switch it on site without a different part number. Fail-safe releases the door when power drops, fail-secure keeps it locked, so match it to the egress and fire requirements on that opening.
8) What voltage and current does the Adams Rite 7100 electric strike draw?
It runs 12, 16, or 24 volts, AC or DC. Draw is 0.33A at 12 VDC, 1.42A at 12 VAC, 0.22A at 16 VDC, 0.63A at 16 VAC, 0.17A at 24 VDC, and 0.74A at 24 VAC. Size the power supply off the line that matches your panel output, and note the AC figures are several times the DC figures at the same voltage.
9) Will the 7100 strike buzz on my office entry?
Only if you run it on AC. AC operation is intermittent duty and buzzes when energized. DC operation is continuous duty and silent. For a quiet lobby or a healthcare corridor, wire it DC.
10) Is the keeper on the 7100 strike strong enough for a high-traffic entry?
The bolt retaining keeper is stainless steel, which is the part taking the load every time the latch is held. The 7100 line is a commercial product, used on retail, office, school, healthcare and municipal entries.
