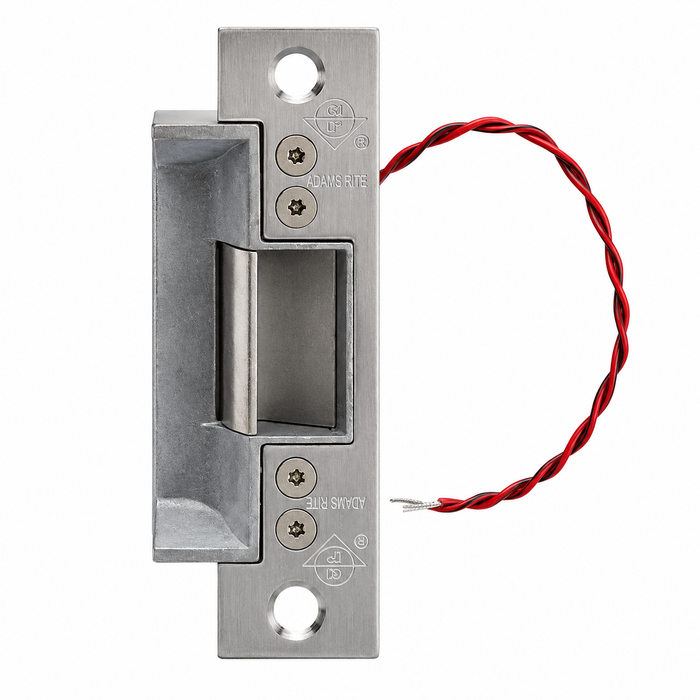

7200 Series Fire-Rated Electric Strikes
7240 Fire-Rated Electric Strikes with 4-7/8" [123.8 mm] faceplates are designed for cylindrical locksets with up to 5/8" [15.9 mm] latchbolt projection.
7270 Fire-Rated Electric Strikes with 4-7/8" [123.8 mm] faceplates are designed for mortise or cylindrical locksets with up to 3/4" [19.1 mm] latchbolt projection without a deadbolt. Both models are for use in hollow metal door jambs.
FUNCTION
Remote electrical control of hollow metal doors equipped with cylindrical locksets with up to 5/8" [15.9 mm] latchbolt projection (7240) or mortise or cylindrical lockset with up to 3/4" [19.1 mm] latchbolt projection (7270). Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. Fire-rated in fail secure mode only.
CERTIFICATIONS
- UL 10C fire rated, 3 hour single door (fail secure only)
- CAN/ULC-S104 fire door conformant
FEATURES
Case
- 7240: 1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep]
- 7270: 1" x 3-3/8" x 1-7/8" deep [25.4 mm x 85.7 mm x 47.6 mm deep]
Strike Opening: Bolt retaining keeper and strike lip are stainless steel. Strike accepts bolts from a variety of locksets.
- 7240: 5/8" x 1-7/16" x 9/16" deep [15.9 mm x 36.5 mm x 14.3 mm deep]
- 7270: 3/4" x 1-7/16" x 5/8" deep [19.1 mm x 36.5 mm x 15.9 mm deep]
Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.
Latchbolt Projection:
- 7240: 5/8" [15.9 mm]
- 7270: 3/4" [19.1 mm]
Faceplate: Measures 1-1/4" x 4-7/8" [31.8 mm x 123.8 mm]; flat with square corners.
Standard Package: Individually boxed with mounting screws. Includes mounting clips and adhesive shims for use where welded tabs are omitted.
Shipping Weight: 2 lbs [0.91 kg].
ELECTRICAL
Current Draw
- 0.33A at 12 VDC
- 1.42A at 12 VAC
- 0.17A at 24 VDC
- 0.74A at 24 VAC
Voltage: Available in 12 or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz" on operation.
Fail Safe | Fail Secure: Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.
OPTIONS
- Available with two Form ‘C’ monitoring switches to indicate when the latchbolt is engaged in the strike and whether the strike jaw is blocked.
- Available with lip extension kit. Specify when ordering if required.
Product Note: All 3/4" throw latches require 1/8" minimum door gap. Horizontal center line of strike must match line of mortise latchbolt.
Related Products: When purchasing this product, please consider the following related products, available separately:
| Options & Accessories | Power |
|
Lip Extension Kits |
PS-1 Power Supply, 4603 Rectifier, 4605/4606 Transformer, Piezo Horn audible indicator, ElectroLynx connector
|
DOCUMENTS
- 7200 Series Catalog Page
- Electric Strike Overview Brochure
- Installation Instructions & Templates
- Electric Strike Selector Guide
UL CERTIFICATIONS and LISTINGS
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Series:
- 7200 Series
- Model:
- 7270
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electric Strikes
- Product Type:
- Electric Strikes
- Subcategory:
- Electric Strikes
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Lock Type:
- Mortise or Cylindrical
- Fire Rated:
- Yes
- Finish:
- 630 - Satin Stainless Steel
- Fail-Safe/Fail-Secure:
- Fail-Secure
