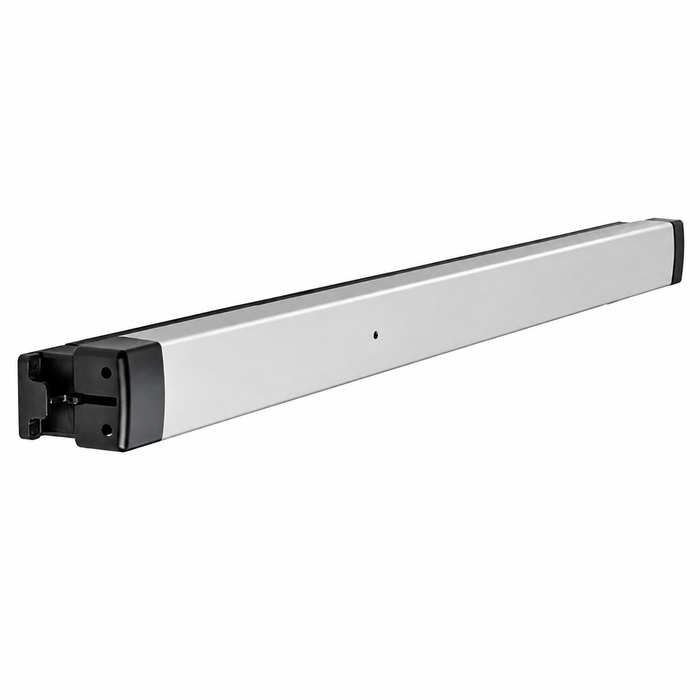

8099 DUMMY PUSH BAR
The 8099 Dummy Push Bar is designed for narrow stile aluminum, hollow metal, and wood applications that do not require a latching/locking life-safety exit device.
FUNCTION
Dummy Push Bar with no latch mechanism but with either single or dual monitor/signal switches. May be used in conjunction with a maglock, where the push bar turns off the magnet and allows exit from the building. Dual switch version allows redundancy where required by code or the operation of a signal device. Designed for applications with single or pairs of doors.
FEATURES & BENEFITS
Materials: Push bar made of extruded aluminum, available variety of architectural finishes.
Stile Width: For hollow metal and wood applications: minimum 3-3/4" [95.3 mm]. For aluminum applications: minimum 2" [50.8 mm] stile.
Fasteners: For hollow metal and wood applications: standard self-tapping screws and machine screws. For aluminum applications: standard machine screws.
Push Bar Length: Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings.
Shipping Weight: 6 lbs [2.72 kg].
DOCUMENTS
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 8099 Series
- Model:
- 8099
- Subcategory:
- Rim Exit Devices
- Function:
- Dummy
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Dummy
- Commercial/Residential:
- Commercial
- Style:
- Push Bars
- Keyed Function:
- Non-Keyed
- Keyed:
- No
- Stile Type:
- Narrow Stile
- Lock Function:
- Dummy
- Fasteners:
- Machine Screws
- Fire Rated:
- No
- Grade:
- Grade 1
- Stile Width:
- 3-3/4"
- Substrate:
- Aluminum
- Warranty:
- 5 Year
- Size:
- 30"
