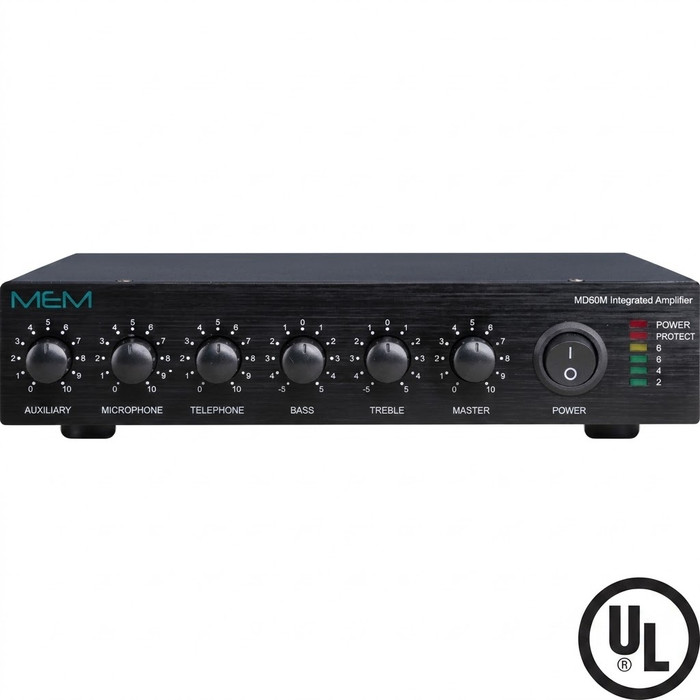

Aiphone MD35M, MD60M,MD120M - Integrated Paging Amplifier

Aiphone MD35M, MD60M,MD120M - Integrated Paging Amplifier

(No reviews yet) Write a Review

Model: MD35M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$738.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

FEATURES
  • Can be used with any Aiphone system with paging ability (see specifications for requirements)
  • 3 channel inputs
  • Wide frequency response with very low distortion
  • Balanced microphone input
  • Phantom power on MIC input with selector
  • Balanced telephone paging input
  • VoIP telephone paging input
  • Tel and mic VOX sensitivity control
  • Auxiliary input with stereo summing
  • Auxiliary input gain
  • Independent input controls (bass and treble)
  • Direct muting or unmuting
  • 12V accessory power output
  • 600Ω or 10K (VoIP) MOH output with separate output level control
  • 8Ω, 25V, and 70V output impedance
  • Rack mounting with optional kits



SPECIFICATIONS

  • Power Source: 120V AC, 50-60Hz
  • Output: 35/60/120W RMS
  • Input
    • Microphone: 250Ω balanced
    • Telephone: 600Ω balanced
    • Auxiliary: 47kΩ
    • VoIP: 50kΩ unbalanced
  • Distortion: Less than 0.5% THD
  • Frequency Response: 20Hz – 20kHz ± 2dB
  • Dimensions (HxWxD): 1-3/4"x 8-1/2"x 12-1/2" 44.5mmx 215.9mmx 317.5mm

Product Specs

Product Type:
Paging Amplifier
Subcategory:
Accessories
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Aiphone MD35M – Frequently Asked Questions

1) What is the difference between the Aiphone MD35M, MD60M and MD120M paging amplifiers?
Output power is the only thing that changes across the three. The MD35M is 35W RMS, the MD60M is 60W, and the MD120M is 120W. Inputs, tone controls, output impedances and chassis size are common to all three, so pick by how many speakers and how much coverage area you need to drive, not by feature set.
2) Will the Aiphone MD series paging amplifier drive 70V speaker lines?
Yes. The MD amplifier has 8 ohm, 25V and 70V output impedance taps, so it works with constant-voltage distributed ceiling and horn speaker runs on 25V or 70V, or with low impedance 8 ohm speakers on a short run. That covers most commercial overhead paging layouts without an added matching transformer at the amp end.
3) Does the Aiphone MD paging amplifier work with an existing Aiphone intercom system?
It can be used with any Aiphone system that has paging ability, as long as the system meets the requirements called out in the amplifier's specifications. If your intercom has no page output, the amplifier will not add that capability to it.
4) What microphone can I connect to the Aiphone MD paging amplifier?
The mic input is 250 ohm balanced and has switchable phantom power, so it takes either a dynamic paging mic or a condenser mic that needs phantom. There are three channel inputs in total (mic, telephone, auxiliary) with independent bass and treble control per input.
5) Can I run background music and music on hold from this amplifier?
Yes. The auxiliary input is 47k ohm with stereo summing and its own gain control, so a stereo music source drops straight in and comes out mono to the speaker line. Separately there is a music-on-hold output at 600 ohm or 10K for VoIP, with its own output level control, to feed a phone system's MOH port.
6) What power does the Aiphone MD paging amplifier need, and can it power an accessory?
It runs on 120V AC, 50-60Hz, so a standard commercial outlet or a rack power strip. There is also a 12V accessory power output on the unit for feeding a small peripheral such as a page control device.
7) Is this paging amplifier good enough for background music or only for voice announcements?
Spec is better than voice-only: frequency response is 20Hz to 20kHz within 2dB and distortion is under 0.5% THD. That is wide enough for music playback over a distributed speaker system, not just intelligible speech.
8) Is the Aiphone MD paging amplifier rated for commercial installations?
Yes, it is a commercial-duty unit, listed by Aiphone as commercial rather than residential and built for facility paging over intercom, telephone and music sources.
