Blackburn ADR25 Aluminum Dual-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$66.56
$8.30
Blackburn ADR25 AL 1CNDTR 1HOLE MOUNT 250-6STR TP

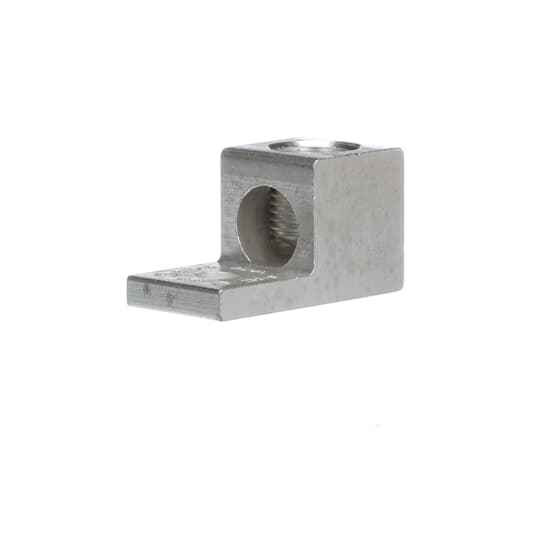

Blackburn ADR25 Aluminum Dual-Rated Mechanical Connector - Single Conductor 1-Hole Mount with Tin-Plated Finish

(No reviews yet) Write a Review

Model: ADR25
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.56
$8.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn ADR25 Aluminum Dual-Rated Mechanical Connector

Professional single conductor connection solution with tin-plated finish

The Blackburn ADR25 delivers reliable electrical connections for professional applications requiring single conductor termination. This aluminum dual-rated mechanical connector features a 1-hole mounting configuration with tin-plated surface finishing for enhanced conductivity and corrosion resistance. UL E9809 listed for professional electrical installations.

Professional Features & Benefits

  • Aluminum Construction: Lightweight yet durable material provides excellent electrical conductivity while reducing installation weight
  • Dual-Rated Design: Versatile connector accommodates multiple wire types and applications for flexible installation options
  • Tin-Plated Finish: Enhanced surface treatment improves conductivity and provides long-term corrosion protection
  • Single Conductor Configuration: Optimized for individual wire termination ensuring secure and reliable connections
  • 1-Hole Mount Design: Simplified mounting system reduces installation time and hardware requirements
  • UL E9809 Listed: Meets rigorous safety standards for professional electrical applications and code compliance

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Insulation Material: None
  • Material: Aluminum
  • Number Of Conductors: 1
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Dual-Rated Mechanical Connector
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Surface Finishing: Tin-Plated
  • Type2: Mechanical connectors

Professional Applications

  • Electrical Panel Connections
  • Industrial Control Systems
  • Commercial Building Wiring
  • Utility Distribution Systems
  • Professional Electrical Installations
  • Wire Management Systems
  • Maintenance and Repair Operations

Why Choose Blackburn Quality?

Blackburn mechanical connectors deliver proven reliability with UL E9809 listing ensuring code compliance and professional performance. The aluminum construction with tin-plated finishing provides long-term durability and optimal electrical conductivity for demanding electrical applications.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Insulation Material:
None
Number Of Conductors:
1
Product Group:
Wire & Cable Management
Product Type:
Dual-Rated Mechanical Connector
Selling Unit Of Measure:
each
Standards:
UL E9809
Surface Finishing:
Tin-Plated
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Aluminum

Blackburn ADR25 – Frequently Asked Questions

1) Can the Blackburn ADR25 connector be used on both copper and aluminum conductors?
Yes. The ADR25 is a dual-rated mechanical connector, meaning it is rated for both copper and aluminum conductors. The body itself is aluminum with a tin-plated finish, which is what makes the dual rating possible: the tin plating keeps the aluminum body from reacting directly with a copper conductor. On aluminum conductors you still follow normal practice for wire brushing and oxide inhibitor.
2) What wire size range does the Blackburn ADR25 take?
The ADR25 is built for a single conductor from 250 kcmil down to 6 AWG stranded. One conductor per connector, so if you are landing two cables you need two connectors or a two-conductor body.
3) Is the ADR25 a one-hole or two-hole lug?
One hole. The ADR25 mounts with a single bolt, which is the common pattern for panelboard neutral and ground bars, transformer lugs, and equipment pads that only have one tapped hole. If your bus pad is drilled on NEMA two-hole centers and the spec calls for two-hole terminations, this is not the right body.
4) Is the Blackburn ADR25 UL listed for electrical panel work?
Yes, it carries UL file E9809. That covers it for the code-compliant terminations electrical contractors and facility MRO crews make in panels, control gear, and utility distribution equipment.
5) Does the ADR25 connector come insulated or do I need to cover it?
It ships bare. The ADR25 has no insulation on it, so where the installation calls for an insulated termination you add heat shrink, a boot, or a cover separately. In a panel or on a bus bar inside enclosed gear, bare is normally what the job wants.
6) Will a tin-plated aluminum lug hold up in a damp or corrosive environment?
The tin plating on the ADR25 is what buys you corrosion resistance; bare aluminum oxidizes at the contact surface and the plating slows that down while keeping contact resistance low. It is a reasonable choice for exterior gear, pump rooms, and utility cabinets. For direct burial or continuous immersion, that is a different product class.
7) What is the exact part number and who makes the ADR25 connector?
Blackburn ADR25 is the manufacturer part number, no suffix. Distributors will sometimes see it described as AL 1 CNDTR 1 HOLE MOUNT 250-6 STR TP, which is the same item. It is made in Mexico.
