Blackburn ADR60-32D Aluminum D...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$376.76
$155.01
Blackburn ADR60-32D AL TP 3CNDTR 2HOLE MOUNT 2-600

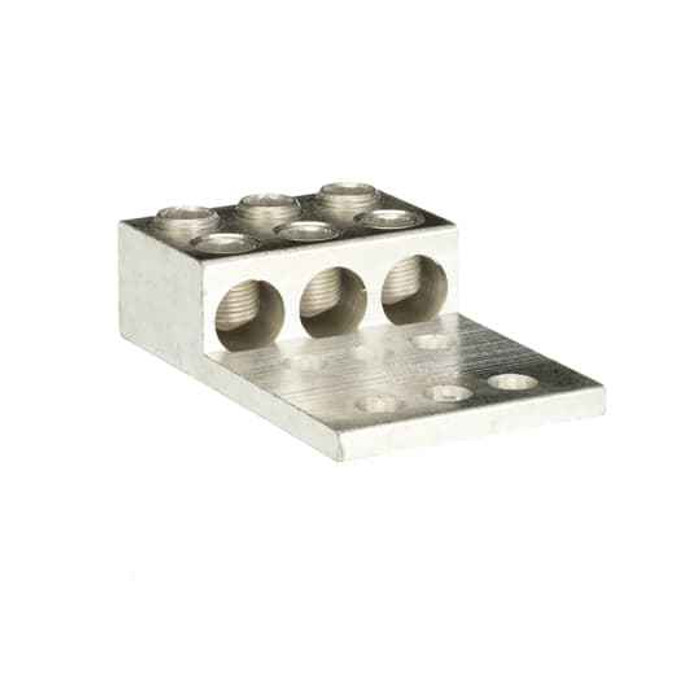

Blackburn ADR60-32D Aluminum Dual-Rated Mechanical Connector 3-Conductor with Tin-Plated Finish

(No reviews yet) Write a Review

Model: ADR60-32D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$376.76
$155.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn ADR60-32D Aluminum Dual-Rated Mechanical Connector 3-Conductor with Tin-Plated Finish

Professional Electrical Connection Solution for Reliable Power Distribution

The Blackburn ADR60-32D delivers professional-grade electrical connectivity with aluminum construction and dual-rated mechanical design. This 3-conductor connector features tin-plated surface finishing for enhanced corrosion resistance and reliable long-term performance in electrical distribution applications. The 2-hole mounting configuration with 1/2 inch spacing provides secure installation flexibility for professional electrical systems.

Professional Features & Benefits

  • Aluminum Construction: Lightweight yet durable material provides excellent conductivity while reducing overall system weight and installation complexity.
  • Dual-Rated Mechanical Design: Versatile connector accommodates multiple wire types and applications, reducing inventory requirements and installation time.
  • 3-Conductor Configuration: Supports multi-phase electrical connections for comprehensive power distribution in commercial and industrial applications.
  • Tin-Plated Surface Finishing: Enhanced corrosion resistance and improved electrical contact performance ensure reliable long-term operation.
  • UL E9809 Listed: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • 2-Hole Mount Design: Secure mounting system with 1/2 inch spacing provides stable installation and easy maintenance access.

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Material: Aluminum
  • Number Of Conductors: 3
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Dual-Rated Mechanical Connector
  • Selling Unit Of Measure: each
  • Spacing: 1/2 in
  • Standards: UL E9809
  • Surface Finishing: Tin-Plated
  • Type2: Mechanical connectors

Professional Applications

  • Commercial Electrical Distribution Systems
  • Industrial Power Distribution Panels
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Commercial Facilities
  • Light Industrial Manufacturing
  • Electrical Service Upgrades

Why Choose Blackburn Quality?

Blackburn mechanical connectors deliver proven reliability with UL E9809 listing and professional-grade aluminum construction. The tin-plated surface finishing ensures long-term performance and corrosion resistance, while the dual-rated design provides installation flexibility for diverse electrical applications. Trust Blackburn quality for your critical electrical connection needs.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Number Of Conductors:
3
Product Group:
Wire & Cable Management
Product Type:
Dual-Rated Mechanical Connector
Selling Unit Of Measure:
each
Spacing:
1/2 in
Standards:
UL E9809
Surface Finishing:
Tin-Plated
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Aluminum

Blackburn ADR60-32D – Frequently Asked Questions

1) Can the Blackburn ADR60-32D be used on both copper and aluminum conductors?
Yes. The ADR60-32D is a dual-rated mechanical connector, meaning it is rated for both copper and aluminum conductors, so you can land AL or CU runs in the same lug without stocking two part numbers. The body itself is aluminum with a tin-plated finish, which is the standard construction for a dual-rated lug and helps resist corrosion at the aluminum-to-copper interface.
2) How many wires can I land on a Blackburn ADR60-32D, and how does it mount?
Three conductors per connector. It is a two-hole mount lug with 1/2 inch hole spacing, so it bolts flat to a bus bar, ground bar, or pad drilled on 1/2 inch centers. That two-bolt pattern keeps the lug from rotating under torque, which is why it gets specified on panel and service work instead of a single-hole lug.
3) Will the ADR60-32D bolt to a bus bar drilled on a different hole pattern?
No. The mounting holes are on 1/2 inch spacing, so the pad or bar has to be drilled to match. If your bus is on 1-inch or NEMA two-hole centers, this lug will not line up and you need a connector drilled for that pattern instead.
4) Is a tin-plated aluminum connector okay in a damp or outdoor panel?
The tin plating over the aluminum body is there specifically to resist corrosion and keep contact resistance stable over time, which is why tin-plated lugs are the normal choice for service equipment, meter stacks, and enclosures that see moisture. Bare aluminum oxidizes at the contact face; tin plating is what slows that down.
5) Would I use a mechanical connector like the ADR60-32D or a compression lug?
A mechanical connector like the ADR60-32D lands the conductor with setscrews, so it installs with a torque wrench and no crimping tool or die set, and it can be re-terminated in the field. Compression lugs need the matching tool and die and are a one-shot termination. For panel work, service upgrades, and multi-unit retrofits where crews move between sizes, the mechanical dual-rated lug is the practical choice; for permanent high-vibration terminations, crews often specify compression instead.
6) Is the Blackburn ADR60-32D sold individually or in a pack?
Sold each. One ADR60-32D connector per unit, so order one per termination point rather than assuming a multi-pack.
7) What is the exact part number and origin for submitting the ADR60-32D on a spec package?
Manufacturer part number ADR60-32D, Blackburn brand, country of origin Mexico. Describe it on the submittal as a three-conductor, two-hole mount, dual-rated mechanical connector, tin-plated aluminum, UL E9809.
