Blackburn ADR60-12D Aluminum D...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$131.16
$39.29

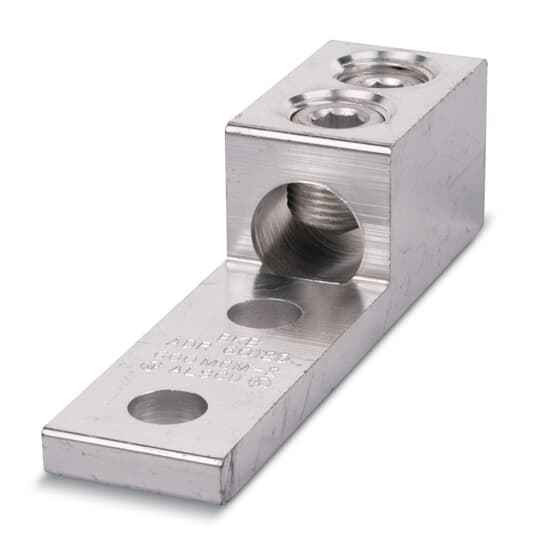

Blackburn ADR60-12D AL TP 1CNDTR 2HOLE MOUNT 2-600

Blackburn ADR60-12D Aluminum Dual-Rated Mechanical Connector with Tin-Plated Finish

(No reviews yet) Write a Review

Model: ADR60-12D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$131.16
$39.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn ADR60-12D Aluminum Dual-Rated Mechanical Connector with Tin-Plated Finish

Professional aluminum connector with dual-rated mechanical design

The Blackburn ADR60-12D delivers reliable electrical connections with its aluminum construction and dual-rated mechanical connector design. This professional-grade connector features tin-plated surface finishing for enhanced conductivity and corrosion resistance, making it ideal for demanding electrical applications requiring secure single conductor connections.

Professional Features & Benefits

  • Aluminum Construction: Provides lightweight durability with excellent electrical conductivity for long-term performance
  • Dual-Rated Mechanical Design: Ensures versatile compatibility and reliable connections across multiple application requirements
  • Tin-Plated Surface Finishing: Delivers superior corrosion resistance and enhanced electrical conductivity for optimal performance
  • Single Conductor Configuration: Optimized for precise single wire connections with secure mechanical retention
  • UL E9809 Standards Compliance: Meets rigorous safety and performance standards for professional electrical installations
  • 2-Hole Mount Design: Provides secure mechanical mounting with easy installation and service access

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Material: Aluminum
  • Number Of Conductors: 1
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Dual-Rated Mechanical Connector
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Surface Finishing: Tin-Plated
  • Type2: Mechanical connectors

Professional Applications

  • Commercial Electrical Systems
  • Industrial Wire Management
  • Utility Infrastructure
  • Professional Electrical Installations
  • Cable Management Systems
  • Electrical Panel Connections

Why Choose Blackburn Quality?

Blackburn delivers professional-grade electrical connectors with UL E9809 standards compliance and aluminum construction for reliable performance. The tin-plated surface finishing ensures long-term durability and optimal electrical conductivity in demanding applications.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Number Of Conductors:
1
Product Group:
Wire & Cable Management
Product Type:
Dual-Rated Mechanical Connector
Selling Unit Of Measure:
each
Standards:
UL E9809
Surface Finishing:
Tin-Plated
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Aluminum

Blackburn ADR60-12D – Frequently Asked Questions

1) Can the Blackburn ADR60-12D be used on copper as well as aluminum conductors?
Yes. The ADR60-12D is a dual-rated mechanical connector, which is the industry term for AL9CU service, so it lands either aluminum or copper conductors. The body itself is aluminum with a tin-plated finish, which is what makes the copper contact acceptable and slows galvanic corrosion at the joint. Use a suitable oxide-inhibiting compound on aluminum conductors per normal practice.
2) How many wires does the ADR60-12D terminate, and what is the mounting pattern?
One conductor per connector, in a 2-hole mount pad configuration. If you are landing two or three feeders to the same bus or ground bar, you need one ADR60-12D per conductor. The two-hole pad resists the rotation you get with a single-bolt lug when the cable is torqued or pulled.
3) Is the Blackburn ADR60-12D a UL listed connector for inspection purposes?
It carries UL file E9809, which is the reference an inspector or spec reviewer will want to see on the submittal. That covers it as a mechanical connector for professional electrical installations. The part is manufactured in Mexico.
4) Mechanical connector or a compression lug for a service entrance termination?
The ADR60-12D is mechanical, meaning the conductor is set with a set screw rather than crimped, so it installs with hand tools and no die set or hydraulic crimper. That is the practical choice for panel and bus terminations, retrofits, and any place you may need to open the joint later for service. Compression lugs are the alternative where a permanent, tamper-resistant termination is specified or where vibration is severe.
5) Will tin plating hold up in an outdoor or damp utility enclosure?
Tin plating over the aluminum body is there specifically for corrosion resistance and to keep contact resistance stable at the joint, which is why these get used in utility infrastructure and industrial gear as well as indoor panels. It does not by itself make an assembly weatherproof, so the enclosure still has to suit the environment.
6) Is the ADR60-12D sold individually or in a bag of multiples?
Sold each. Order one per conductor you are terminating, so a three-phase plus neutral landing takes four.
7) What part number should I give my distributor for the Blackburn ADR60-12D?
Order it as Blackburn ADR60-12D. That is the manufacturer part number for the aluminum, tin-plated, single-conductor two-hole mount connector, and there is one configuration of it.
