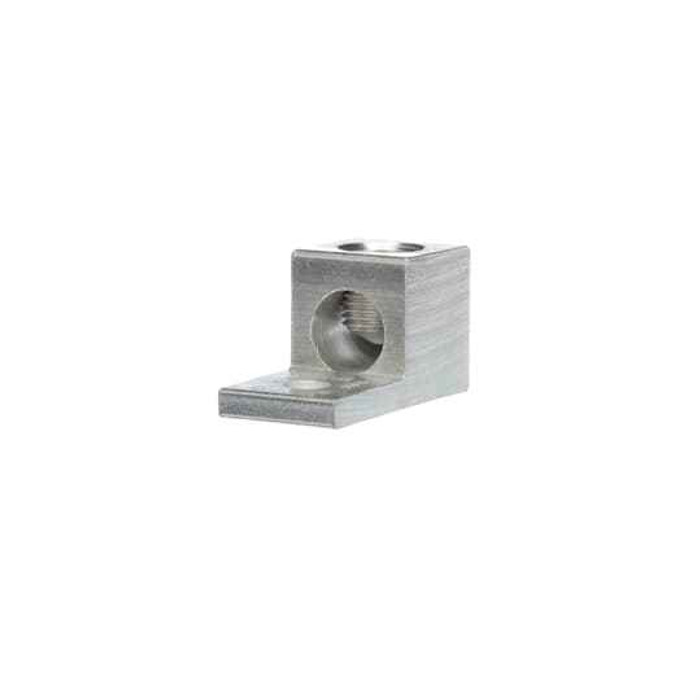

Blackburn ADR35 Aluminum Dual-Rated Mechanical Connector 1-Conductor 6-350 STR TP

Professional aluminum mechanical connector for reliable electrical connections

The Blackburn ADR35 aluminum dual-rated mechanical connector delivers dependable single-conductor connections for wire and cable management applications. Engineered with aluminum construction and tin-plated surface finishing, this 1-hole mount connector accommodates 6-350 STR TP conductor configurations with professional-grade reliability.

Professional Features & Benefits

  • Aluminum Construction: Provides lightweight durability and corrosion resistance for long-term electrical connections
  • Dual-Rated Design: Offers versatile performance capabilities for multiple application requirements
  • Tin-Plated Surface Finishing: Enhances conductivity and prevents oxidation for reliable electrical contact
  • Single Conductor Configuration: Simplifies installation and maintenance in wire management systems
  • UL E9809 Standards Compliance: Ensures safety and performance meet rigorous electrical industry requirements
  • 1-Hole Mount Design: Facilitates secure and straightforward installation in electrical enclosures

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Insulation Material: None
  • Material: Aluminum
  • Number Of Conductors: 1
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Dual-Rated Mechanical Connector
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Surface Finishing: Tin-Plated
  • Type2: Mechanical connectors

Professional Applications

  • Electrical Panel Connections
  • Wire and Cable Management Systems
  • Commercial Electrical Installations
  • Industrial Wiring Applications
  • Electrical Enclosure Connections
  • Professional Electrical Maintenance

Why Choose Blackburn Quality?

Blackburn mechanical connectors deliver proven reliability with UL E9809 standards compliance and professional-grade aluminum construction. The tin-plated surface finishing ensures long-term performance and dependable electrical connections for demanding applications.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Insulation Material:
None
Number Of Conductors:
1
Product Group:
Wire & Cable Management
Product Type:
Dual-Rated Mechanical Connector
Selling Unit Of Measure:
each
Standards:
UL E9809
Surface Finishing:
Tin-Plated
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Aluminum

Blackburn ADR35 – Frequently Asked Questions

1) What wire sizes does the Blackburn ADR35 mechanical connector accept?
The ADR35 takes a single stranded conductor from 6 AWG through 350 kcmil. It is a one-conductor lug, so one run per connector, not a multi-tap. If you need to land two or more conductors at one pad, you want a multi-conductor lug instead.
2) Can the Blackburn ADR35 be used on copper wire, or aluminum only?
It is a dual-rated (AL9CU type) mechanical connector, so it lands either aluminum or copper conductors in the 6-350 stranded range. The body itself is aluminum with a tin-plated finish, which is what makes the copper connection acceptable and keeps the aluminum from oxidizing at the contact surface.
3) How does the ADR35 lug mount to a bus bar or ground bar?
One-hole mount. The ADR35 has a single bolt hole in the pad, so it fastens with one bolt to a panel bus, ground bar, or equipment pad. Mounting hardware is not part of the connector, so pick up the bolt, nut, and washers to suit your bar thickness. Note that a single-hole lug can rotate under torque, so where anti-rotation matters use a two-hole lug.
4) Is the Blackburn ADR35 connector UL listed for electrical inspection?
Yes. The ADR35 carries UL file E9809, which is the listing an inspector will look for on a mechanical connector used in panel, enclosure, and grounding work.
5) Does the ADR35 come with any insulation or cover?
No insulation is supplied. The ADR35 is a bare mechanical lug, so any required insulating cover or boot is a separate item, and in an enclosure the bare pad has to keep proper clearance from the can and adjacent phases.
6) Is the Blackburn ADR35 sold individually or in a bag?
It sells each, one connector per unit, under part number ADR35. For a panel or service job, count your terminations and order that quantity since each conductor takes its own lug.
7) Will a tin-plated aluminum lug hold up in a damp or outdoor enclosure?
The aluminum body with tin plating resists oxidation at the contact surface, which is why these are common in service entrance and grounding work. For direct burial or continuously wet locations, use an oxide-inhibiting compound on the conductor and confirm the enclosure rating carries the environmental duty, since the lug itself is bare metal with no insulation.
