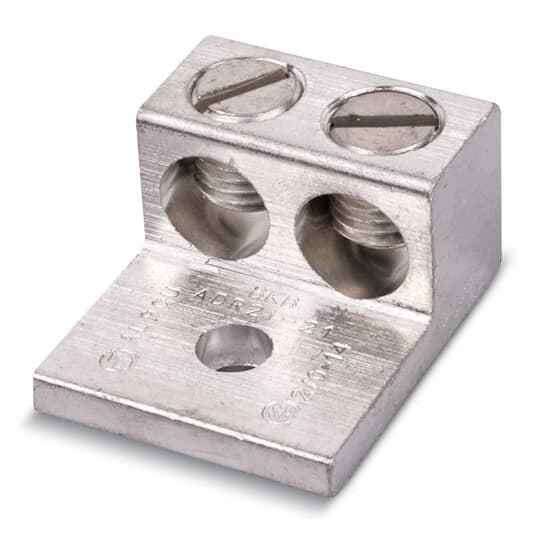

Blackburn ADR35-21 Aluminum Dual-Rated Mechanical Connector 2-Conductor 6-350 MCM Range

Professional-Grade Electrical Connection Solution

The Blackburn ADR35-21 delivers reliable electrical connections with its aluminum construction and dual-rated mechanical design. This 2-conductor connector accommodates wire ranges from 6 to 350 MCM with 1/2 inch spacing, featuring tin-plated surface finishing for enhanced conductivity and corrosion resistance. UL E9809 listed for professional electrical applications requiring secure, long-lasting connections.

Professional Features & Benefits

  • Dual-Rated Mechanical Design: Provides versatile connection capability for multiple wire types and applications with reliable mechanical grip.
  • 6-350 MCM Wire Range: Accommodates a wide range of conductor sizes for flexible installation options in various electrical systems.
  • Aluminum Construction: Lightweight yet durable material provides excellent electrical conductivity while reducing overall system weight.
  • Tin-Plated Surface Finishing: Enhanced corrosion resistance and improved electrical contact for long-term performance and reliability.
  • UL E9809 Listed: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • 2-Conductor Configuration: Streamlined design for efficient dual-wire connections with 1/2 inch spacing for proper clearance.
  • Single-Hole Mounting: Simplified installation process with secure mounting capability for various electrical enclosures and panels.

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Material: Aluminum
  • Number Of Conductors: 2
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Dual-Rated Mechanical Connector
  • Selling Unit Of Measure: each
  • Spacing: 1/2 in
  • Standards: UL E9809
  • Surface Finishing: Tin-Plated
  • Type2: Mechanical connectors

Professional Applications

  • Commercial Electrical Installations
  • Industrial Power Distribution
  • Utility Service Connections
  • Electrical Panel Assemblies
  • Wire Management Systems
  • Professional Electrical Contracting
  • Maintenance and Repair Operations

Why Choose Blackburn Quality?

Blackburn mechanical connectors deliver proven reliability with UL E9809 listing and professional-grade aluminum construction. The tin-plated surface finishing ensures long-term performance and corrosion resistance, while the dual-rated design provides versatility for demanding electrical applications requiring secure, code-compliant connections.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Number Of Conductors:
2
Product Group:
Wire & Cable Management
Product Type:
Dual-Rated Mechanical Connector
Selling Unit Of Measure:
each
Spacing:
1/2 in
Standards:
UL E9809
Surface Finishing:
Tin-Plated
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Aluminum

Blackburn ADR35-21 – Frequently Asked Questions

1) Can the Blackburn ADR35-21 connector be used on both copper and aluminum conductors?
Yes. The ADR35-21 is a dual-rated mechanical connector, so it is rated for both copper and aluminum conductors. The body itself is aluminum with a tin-plated finish, which is what allows it to be used on copper without a dissimilar-metal problem at the contact surface.
2) What wire sizes will the ADR35-21 take?
It accepts stranded conductors from 6 AWG up to 350 MCM, with two ports. That range covers most feeder and service work, from small branch feeders up through 350 MCM service conductors.
3) How many wires can I land in one Blackburn ADR35-21?
Two. It is a 2-conductor block, one wire per port, with 1/2 inch spacing between the ports for clearance between the terminations. If you need to land three or more conductors at one point you need a larger multi-port block, not this one.
4) How does the ADR35-21 mount inside a panel or enclosure?
Single-hole mount. One fastener through the base secures it to a panel, enclosure wall, or mounting bracket, so you only need one drilled and tapped hole rather than a two-bolt footprint.
5) Is a dual-rated mechanical connector the right choice, or should I be using a compression lug?
A mechanical connector like the ADR35-21 is set with a set screw and a wrench, so it can be installed and re-terminated with hand tools and no crimper or die set. That is what makes it the usual pick for panel taps, service splices, and MRO repairs where you may need to open the joint again. Compression lugs are the choice where a permanent, tool-verified crimp is specified. Because this one is dual-rated, the same part covers both copper and aluminum runs, so you can stock one connector instead of two.
6) Will a tin-plated aluminum connector hold up in a damp or outdoor service enclosure?
The tin plating over the aluminum body is there for corrosion resistance and stable contact at the conductor surface, which is why this style is common in utility service and outdoor distribution gear. As with any aluminum termination, use the appropriate joint compound and torque practice for the conductor you are landing.
7) Is the ADR35-21 sold individually or in a pack?
Each. The selling unit is one connector, model ADR35-21, so order the exact count you need rather than a multi-pack.
