Blackburn WR159 AL HTYPE COMP CONN 2-6ACSR 2-6

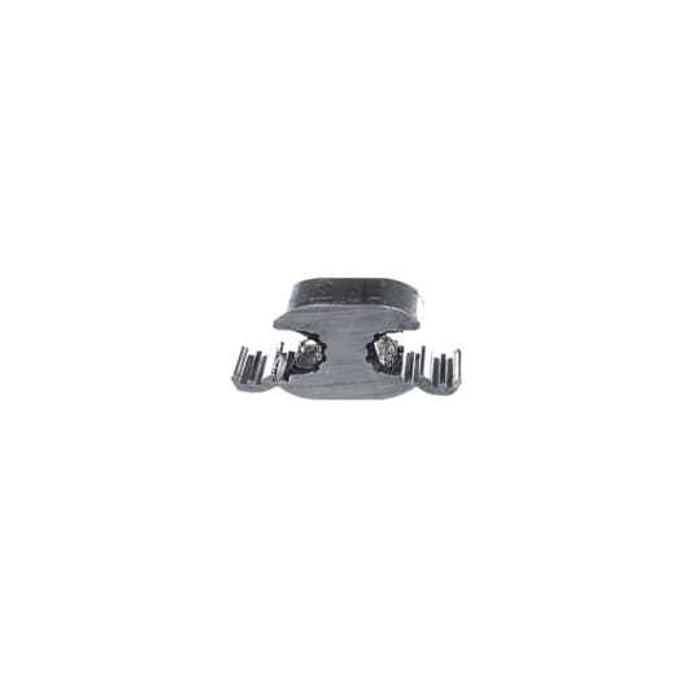

Blackburn H-Type Compression Tap Connector 2-6 ACSR 2 Conductor Professional Wire Management System

(No reviews yet) Write a Review

Model: WR159
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.11
$3.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn H-Type Compression Tap Connector 2-6 ACSR 2 Conductor Professional Wire Management System

Professional aluminum compression connector for reliable ACSR conductor connections

The Blackburn H-Type Compression Tap Connector delivers professional-grade electrical connections for 2-6 ACSR conductors in utility and industrial applications. This 2-conductor compression connector features aluminum construction with a compact 1-7/16 inch length design, providing reliable performance in temperatures up to 90�C. RUS accepted and ANSI C119.4 compliant, this connector ensures code-compliant installations for professional electrical systems.

Professional Features & Benefits

  • H-Type Compression Design: Provides secure, permanent connections with superior conductivity and reduced maintenance requirements
  • 2-6 ACSR Compatibility: Accommodates standard aluminum conductor steel reinforced cables for versatile utility applications
  • 90�C Temperature Rating: Maintains reliable performance in high-temperature environments and demanding electrical conditions
  • ANSI C119.4 Compliance: Meets industry standards for electrical connector performance and safety requirements
  • RUS Acceptance: Approved for rural utility service applications ensuring regulatory compliance
  • Compact 1-7/16 Inch Length: Space-efficient design allows installation in confined areas while maintaining full performance
  • 2-Conductor Configuration: Optimized for dual-conductor tap connections in distribution and service applications

Technical Specifications

  • Connection Type: Compression
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Insulation Material: None
  • Mounting Type: None
  • Number Of Conductors: 2
  • Product Group: Wire & Cable Management
  • Product Size: Length 1-7/16 inch
  • Product Subgroup: Connectors
  • Product Type: H-Type Compression Tap Connector
  • Selling Unit Of Measure: each
  • Standards: RUS Accepted. Complies with ANSI C119.4 Specifications
  • Temperature Range: up to 90 �C
  • Type2: Wire connectors

Professional Applications

  • Utility Distribution Systems
  • Rural Electrical Service Connections
  • Industrial Power Distribution
  • Commercial Electrical Infrastructure
  • Overhead Line Tap Connections
  • ACSR Conductor Splicing
  • Electrical Service Upgrades

Why Choose Blackburn Quality?

Blackburn delivers proven reliability in electrical connection solutions with RUS acceptance and ANSI C119.4 compliance ensuring professional-grade performance. The 90�C temperature rating and compression connection technology provide long-term durability in demanding electrical environments, making this connector a trusted choice for utility and industrial applications.

Manufacturer Resources

Product Specs

Connection Type:
Compression
Country Of Origin:
Mexico (MX)
Insulation Material:
None
Number Of Conductors:
2
Product Group:
Wire & Cable Management
Product Type:
H-Type Compression Tap Connector
Selling Unit Of Measure:
each
Standards:
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Range:
up to 90 °C
Type2:
Wire connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Size:
Length 1-7/16 inch
Installation Category:
None

Blackburn WR159 – Frequently Asked Questions

1) What conductor sizes does the Blackburn WR159 H-tap connector accept?
The Blackburn WR159 is an H-type compression tap sized for 2 through 6 ACSR conductors, run and tap. It takes two conductors, so it joins a single tap to a single run. If your run is larger than 2 ACSR or your tap smaller than 6, you need a different die-coded H-tap.
2) Is the WR159 connector a crimp or a bolted tap?
Compression, not bolted. The WR159 is crimped with a hydraulic tool and the correct die, which makes it a permanent connection with no bolt to re-torque later. If you need a tap you can open up and re-use, you want a bolted split-bolt or parallel clamp instead.
3) Can I use a Blackburn WR159 H-tap on an insulated or underground run?
No insulation is supplied on the WR159, so it is a bare aluminum H-tap intended for overhead and open-air distribution taps. Any covering or waterproofing over the crimp has to be added separately, and it is not sold as a submersible or direct-burial rated connector.
4) Does this Blackburn H-tap meet utility spec for a rural co-op job?
The WR159 is RUS accepted and complies with ANSI C119.4, which is the connector performance standard utilities write into distribution specs. That combination is what most co-op and municipal utility submittals ask for on an overhead tap connector.
5) Can I use this aluminum H-tap to connect a copper tap to an ACSR run?
The WR159 is an aluminum-bodied H-tap catalogued for 2-6 ACSR only. For an aluminum-to-copper connection you need a connector specifically rated for both metals, since a bare aluminum body on copper invites galvanic corrosion at the crimp.
6) What temperature can the WR159 aluminum H-tap run at?
Rated to 90 degrees C. That covers the standard 90 C conductor operating temperature used on most distribution and service conductors, so it will not be the limiting element on a normally loaded line.
7) How much space does the WR159 take up on the conductor?
The body is 1-7/16 inches long, so it fits tight tap locations near insulators, deadends, and crowded racks where a longer sleeve or parallel clamp will not clear.
8) Is the Blackburn WR159 sold individually or by the box?
Sold each. Order the exact count you need for the job; there is no carton minimum built into the unit of measure.
9) What is the manufacturer part number for this Blackburn H-tap?
Blackburn WR159 is the catalog number, and it is the only model in this size range for 2-6 ACSR with a two-conductor H configuration. Distributors ordering to a utility spec should quote it as WR159.
