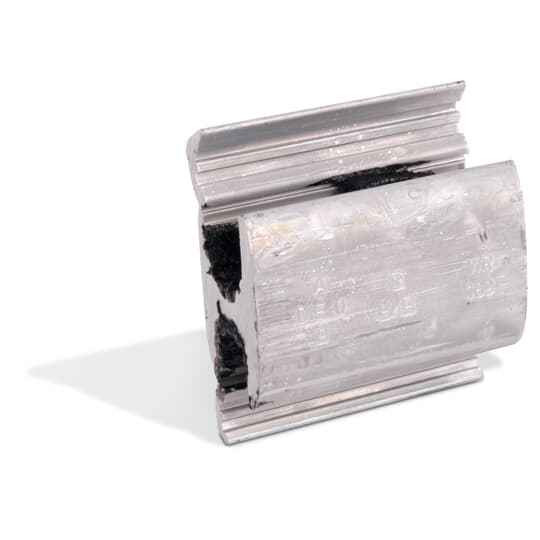

Blackburn WR399 AL HTYPE COMPCONN 4/0-3/0ACSR 2/0-1

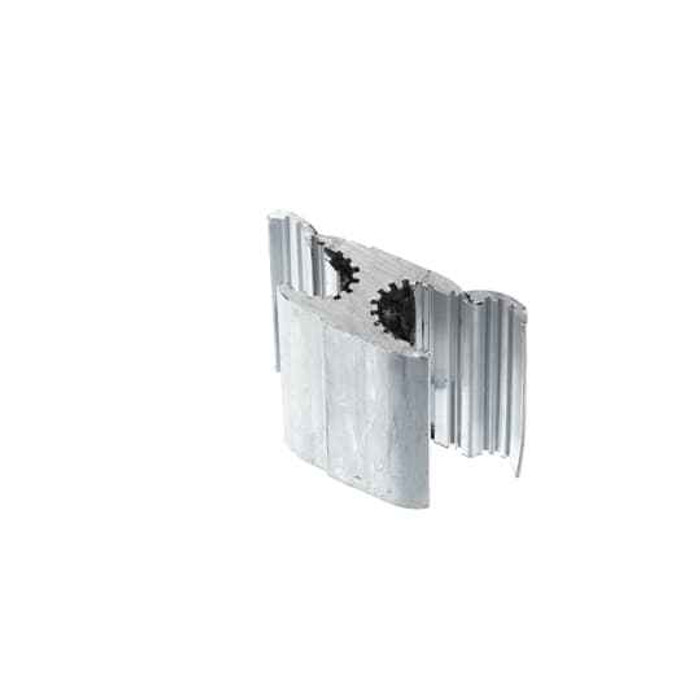

Blackburn H-Type Compression Tap Connector 4/0-3/0 ACSR 2/0-1 AWG 2-Conductor

(No reviews yet) Write a Review

Model: WR399
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.89
$5.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn H-Type Compression Tap Connector 4/0-3/0 ACSR 2/0-1 AWG 2-Conductor

Professional Aluminum H-Type Compression Connection Solution

The Blackburn H-Type Compression Tap Connector delivers reliable electrical connections for ACSR conductors ranging from 4/0-3/0 main line to 2/0-1 AWG tap connections. This 2-conductor compression connector features a compact 2-3/16 inch length design with temperature rating up to 90�C, meeting ANSI C119.4 specifications and RUS acceptance standards for professional electrical installations.

Professional Features & Benefits

  • H-Type Compression Design: Ensures secure, permanent connections with superior conductivity and reduced maintenance requirements
  • ACSR Conductor Compatibility: Specifically engineered for 4/0-3/0 main line and 2/0-1 AWG tap connections, providing versatile sizing options
  • 2-Conductor Configuration: Accommodates dual conductor connections in a single compact connector body
  • 90�C Temperature Rating: Maintains reliable performance in demanding thermal environments and high-load applications
  • ANSI C119.4 Compliance: Meets rigorous industry standards for electrical connector performance and safety
  • RUS Accepted: Approved for rural utility service applications, ensuring regulatory compliance
  • Compact 2-3/16 inch Length: Space-efficient design facilitates installation in confined spaces and crowded enclosures

Technical Specifications

  • Connection Type: Compression
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Insulation Material: None
  • Mounting Type: None
  • Number Of Conductors: 2
  • Product Group: Wire & Cable Management
  • Product Size: Length 2-3/16 inch
  • Product Subgroup: Connectors
  • Product Type: H-Type Compression Tap Connector
  • Selling Unit Of Measure: each
  • Standards: RUS Accepted. Complies with ANSI C119.4 Specifications
  • Temperature Range: up to 90 �C
  • Type2: Wire connectors

Professional Applications

  • Utility Distribution Systems
  • Rural Electric Cooperative Networks
  • Overhead Power Line Connections
  • ACSR Conductor Tap Connections
  • Electrical Service Upgrades
  • Power Line Maintenance and Repair
  • Industrial Electrical Infrastructure

Why Choose Blackburn Quality?

Blackburn H-Type Compression Tap Connectors provide dependable performance with RUS acceptance and ANSI C119.4 compliance, ensuring long-term reliability in critical electrical connections. The 90�C temperature rating and precision compression design deliver professional-grade durability for demanding utility and industrial applications.

Manufacturer Resources

Product Specs

Connection Type:
Compression
Country Of Origin:
Mexico (MX)
Insulation Material:
None
Number Of Conductors:
2
Product Group:
Wire & Cable Management
Product Type:
H-Type Compression Tap Connector
Selling Unit Of Measure:
each
Standards:
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Range:
up to 90 °C
Type2:
Wire connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Size:
Length 2-3/16 inch
Installation Category:
None

Blackburn WR399 – Frequently Asked Questions

1) What conductor sizes does the Blackburn WR399 H-tap take on the run and the tap?
The WR399 is sized for a 4/0 to 3/0 ACSR main line with a 2/0 to 1 AWG tap. Both conductors seat in the same H body and get compressed together, so the run and tap ranges are not interchangeable. If your tap is heavier than 2/0 or your run is smaller than 3/0 ACSR, this is the wrong connector in the series.
2) Is the Blackburn H-tap a bolted connector or does it need a compression tool?
Compression only. There is no bolt or set screw on the WR399 H-tap, so it takes a hydraulic or battery compression tool with the correct die for the body. Once crimped it is a permanent connection, which is why utilities use it on overhead distribution rather than a bolted split bolt you can take apart later.
3) Does this Blackburn H-tap meet utility spec for a rural co-op job?
It is RUS accepted and complies with ANSI C119.4, which is the connector standard utilities write into distribution specs. That covers it for rural electric cooperative and overhead line work where the drawing calls out a C119.4 compression tap.
4) Can I use the WR399 H-type tap on insulated cable or in a wet underground splice?
No. The WR399 ships bare with no insulation on the body, so any connection you make with it has to be insulated or covered separately, or left open on an overhead line where air is the insulation. It is not a submersible or direct-bury splice assembly.
5) What temperature can this compression tap run at?
Rated up to 90 degrees C. That matches the usual 90 C conductor rating on distribution work, so it will not be the limiting element on a line loaded to conductor temperature.
6) How much room do I need on the conductor to fit this H-tap?
The body is 2-3/16 inches long, so you need a clear run of at least that much plus your tool jaw clearance on the line. Short enough to work in a crowded enclosure or between existing taps.
7) How many conductors go into one Blackburn WR399?
Two, one run and one tap. It is a 2-conductor H body, not a multi-tap block, so a second tap off the same point means a second connector.
8) Is the WR399 sold individually or in a box quantity?
Sold each, so you can order the exact count for the job rather than a carton. Country of origin is Mexico.
9) Does this H-tap mount to a pole or panel?
No mounting provision at all. The WR399 is carried entirely by the conductors it crimps onto, so there is no bracket, stud, or panel hole. Plan the connection where the line can support it.
