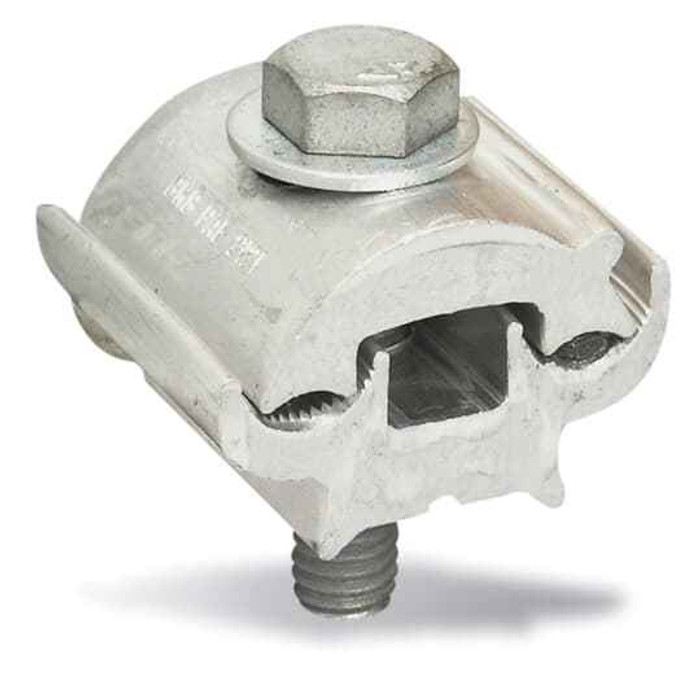

AL PARAGRV CLAMP EXTRUDED 1000-397
Manufacturer Resources
Product Specs
- Connection Type:
- Bolted
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Grounding & Bonding
- Product Type:
- Parallel-Groove Clamp
- Selling Unit Of Measure:
- each
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Ground Clamps
- Product Size:
- Height 2-13/16 X Length 3-1/2 X Width 3-7/64 inch, Bolt 1/2 inch
- Installation Category:
- None
- Product Material:
- Aluminum
Blackburn PAE9939-9 – Frequently Asked Questions
1) Can I use an aluminum parallel groove clamp like the Blackburn PAE9939-9 on copper conductors?
The PAE9939-9 body is aluminum. Aluminum-bodied parallel groove clamps are intended for aluminum-to-aluminum connections unless the manufacturer specifically rates the fitting for dual use, and that dual rating is not part of this clamp's published data. For a copper run or a copper-to-aluminum tap, specify a fitting rated AL9CU or a bronze/copper parallel groove clamp instead.
2) Is the Blackburn PAE9939-9 a compression connector or a mechanical one?
Mechanical, not compression. The connection is bolted, so it installs with a wrench and no hydraulic tool, die set, or crimper. That also means it can be loosened and re-made, which is why parallel groove clamps get used on taps that may be re-terminated later. If your spec calls for an irreversible compression splice, this does not satisfy it.
3) What size bolt does the Blackburn PAE9939-9 clamp use, and what are its overall dimensions?
It uses a 1/2 inch bolt, and the clamp measures Height 2-13/16 x Length 3-1/2 x Width 3-7/64 inches. Check that envelope against your enclosure or tower steel clearance before you commit, it is a fairly bulky extruded body and needs socket swing room on the 1/2 inch head.
4) Does the Blackburn PAE9939-9 clamp come insulated?
No insulation on it. The PAE9939-9 is a bare extruded aluminum clamp, so if the connection needs covering you add a separate insulating cover, tape, or resin kit as part of the install.
5) Is the Blackburn PAE9939-9 sold individually or in a box quantity?
It sells as an each, one clamp per unit, so you can order the exact count of taps on the job rather than a carton. For distributors pulling it by part number, the manufacturer number is PAE9939-9 and it is made in Mexico.
