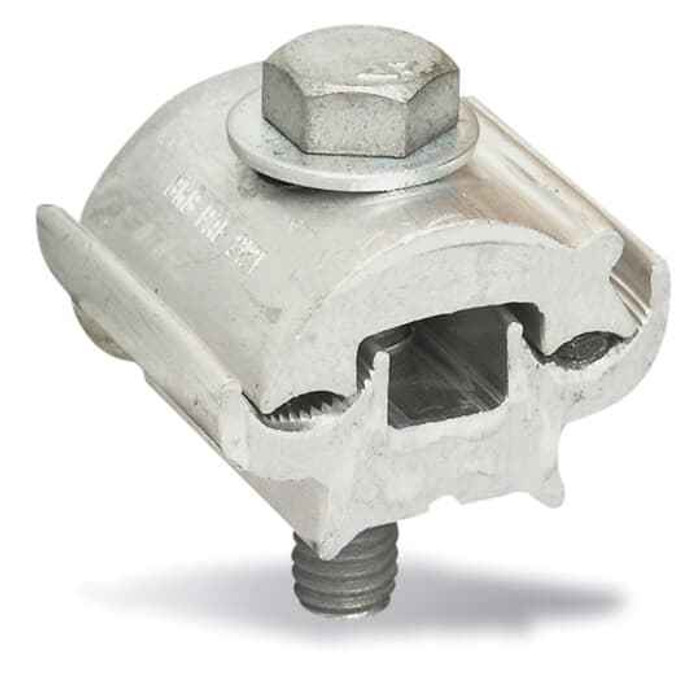

AL PARAGRV CLAMP EXTRUDED 397-3/0
Manufacturer Resources
Product Specs
- Connection Type:
- Bolted
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Grounding & Bonding
- Product Type:
- Parallel-Groove Clamp
- Selling Unit Of Measure:
- each
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Ground Clamps
- Product Size:
- Height 2-9/16 X Length 1-5/8 X Width 2-1/4 inch, Bolt 1/2 inch
- Installation Category:
- None
- Product Material:
- Aluminum
Blackburn PAE3921-9-2 – Frequently Asked Questions
1) What conductor sizes does the Blackburn PAE3921-9-2 parallel groove clamp take?
The PAE3921-9-2 is the 397 to 3/0 range clamp, so the main and tap conductors both need to fall in that window. It holds two conductors, one in each groove. Anything smaller than 3/0 or larger than 397 belongs on a different catalog number in the series.
2) Can I use an aluminum parallel groove clamp like the PAE3921-9-2 on copper conductors?
The PAE3921-9-2 body is extruded aluminum. Aluminum-bodied parallel groove clamps are made for aluminum-to-aluminum connections unless the manufacturer specifically rates the part as dual rated AL/CU. Nothing in the PAE3921-9-2 data designates a copper rating, so treat it as an aluminum conductor connector and use a dual rated or bronze clamp where copper is involved.
3) Is the PAE3921-9-2 a bolted clamp or a compression connector?
It is bolted. The PAE3921-9-2 uses a 1/2 inch bolt to draw the two grooved halves together on the conductors, so it installs with a wrench and no hydraulic tool or die set. That also means it can be loosened and re-made if a conductor has to be pulled or re-dressed, which a crimped splice cannot.
4) How much room do I need in the enclosure or on the rack for this parallel groove clamp?
Allow for a body measuring 2-9/16 inch height by 1-5/8 inch length by 2-1/4 inch width, plus wrench swing on the 1/2 inch bolt head. Worth checking before you commit to it inside a tight pull box or between close-spaced bus runs.
5) Does the PAE3921-9-2 come insulated or do I need to tape or boot the connection?
It ships bare. There is no insulation material on the clamp, so any covering the job requires, tape, a cover kit, or heat shrink, is a separate item. On outdoor or overhead aluminum work these are routinely left bare; inside an enclosure, follow whatever the spec on the drawing calls for.
6) Should I use a parallel groove clamp or a compression splice for an aluminum tap?
A parallel groove clamp like the PAE3921-9-2 runs the two conductors side by side in machined grooves and clamps them with a bolt, so it is the choice when you want a re-openable tap, have no crimp tool on site, or need to land a tap on an existing run without cutting it. A compression splice is permanent and makes a straight inline joint. The PAE3921-9-2 is catalogued for wire or cable splicing duty and takes two conductors.
7) Is the Blackburn PAE3921-9-2 sold individually or in a box?
Each. The selling unit is one clamp, so order the exact count of taps you have rather than a carton quantity. Manufacturer part number is PAE3921-9-2, made in Mexico.
