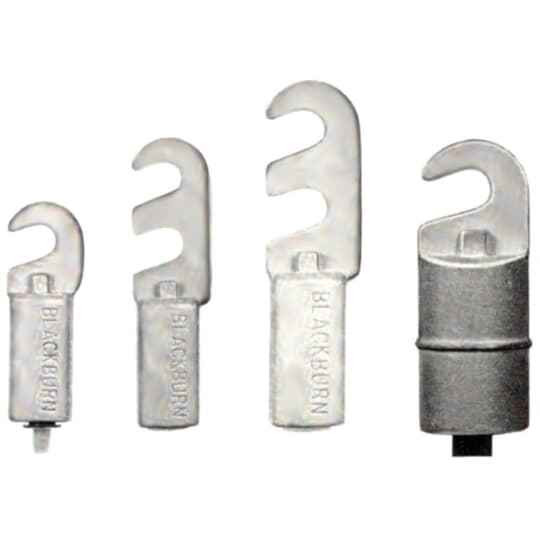

AL SLOTTED COMP TERM No2 RED 2SLOT
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Terminal Lug Slotted Tang
- Selling Unit Of Measure:
- each
- Surface Finishing:
- Bare
- Temperature Range:
- 90 °C
- Type2:
- Wire connectors
- Voltage Rating:
- 600 V
- Wire Size:
- #2 STR AWG#1 SOL AWG
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Red
Blackburn LAC22 – Frequently Asked Questions
1) What wire size does the Blackburn LAC22 compression lug take?
The LAC22 is sized for #2 AWG stranded or #1 AWG solid conductor. It is a one-size compression barrel, so it has to be crimped onto a conductor in that range to get the rated connection. Larger or smaller cable needs a different lug in the series.
2) Can I use a #2 compression lug like the Blackburn LAC22 on a 480V panel?
Yes. The LAC22 carries a 600 V rating, which covers 120/208, 277/480 and other common commercial distribution voltages. Conductor temperature rating is 90 degrees C, so it works with THHN/THWN-2 type 90 C cable.
3) How many bolt holes does the LAC22 terminal lug have?
Two slots on the tang, so it lands on a two-hole pad or busbar pattern rather than a single stud. The slotted tang gives some play for lining up with existing bolt spacing, which matters when you are terminating onto a ground bar or a lug pad you cannot re-drill.
4) Is the LAC22 lug rated for aluminum conductor or copper?
It is an aluminum-body compression terminal, bare finish, with no insulation on the barrel. The red color code identifies the die/barrel size used when crimping, which is how electricians confirm they have the right tool setting on the job.
5) Do I need a special tool to install a Blackburn LAC22 lug?
It is a compression connector, not a mechanical set-screw lug, so it needs a hydraulic or battery crimp tool with the matching die. If you do not have a crimper on the truck, a mechanical screw-type lug in the same #2 range is the alternative.
6) Does the LAC22 come insulated, or do I need to cover it after crimping?
The barrel is bare with no insulation, so if the installation calls for a covered termination you add heat shrink or tape yourself. In an enclosure or on a ground bar where clearance is maintained, bare is normal.
7) Is the LAC22 sold individually or in a bag?
Sold each, so you order the exact count for the terminations you have. Handy for service work where you need two or three, rather than being forced into a carton.
8) What is the exact part number and origin for the Blackburn red #2 two-slot compression lug?
Blackburn LAC22, manufactured in Mexico. That MPN is what to quote for a distributor cross-reference or a submittal on a #2 STR / #1 SOL aluminum compression terminal.
