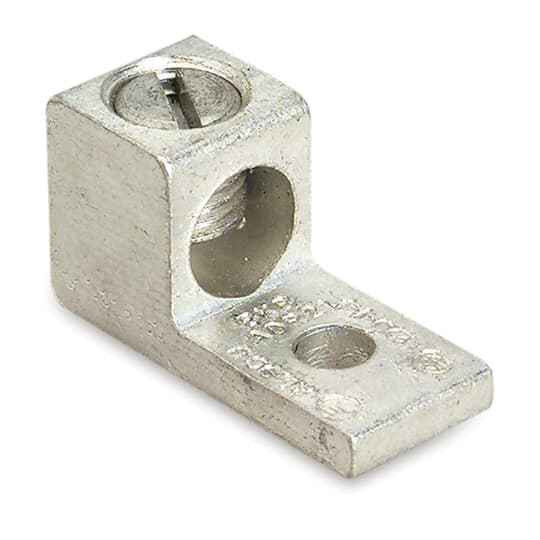

AL TP 1CNDTR 1HOLE MOUNT 2-600
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Dual-Rated Mechanical Connector
- Selling Unit Of Measure:
- each
- Spacing:
- 3/8 in
- Standards:
- UL E9809
- Surface Finishing:
- Tin Plated
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Aluminum
Blackburn ADR60 – Frequently Asked Questions
1) Can the Blackburn ADR60 connector be used on copper conductors as well as aluminum?
Yes. The ADR60 is a dual-rated mechanical connector, so it is listed for both aluminum and copper conductors. The body is aluminum with a tin plated finish, which is what makes the copper connection acceptable and helps limit galvanic corrosion at the interface.
2) What wire size range does the Blackburn ADR60 lug accept?
The ADR60 takes a single conductor from 2 AWG up to 600 kcmil. One conductor per lug, so for parallel runs you need one ADR60 per cable.
3) How does the ADR60 mount to a ground bar or panel pad?
It is a one-hole mount lug, fastened with a single bolt through the tongue. That makes it quick to land on a busbar pad or equipment ground bar, but a one-hole lug can rotate under torque, so where a cable will be pulled or vibrated you may want a two-hole lug instead.
4) What is the 3/8 in spacing figure on the Blackburn ADR60?
3/8 inch is the spacing dimension given for the ADR60 mounting pad. Check it against the bolt pattern and pad clearance on your busbar before drilling or ordering hardware.
5) Does the ADR60 come insulated or do I need to cover the connection?
No insulation on this one, the lug ships bare. If the installation calls for an insulated termination you will need to add heat shrink, a boot, or a cover separately.
6) Is the Blackburn ADR60 sold individually or in a pack?
Each. One lug per unit, so for a three-phase plus neutral termination you would order four.
7) What is the exact part number and country of origin for this Blackburn lug?
Manufacturer part number ADR60, made in Mexico. Distributors and submittal packages should reference the ADR60 designation directly.
