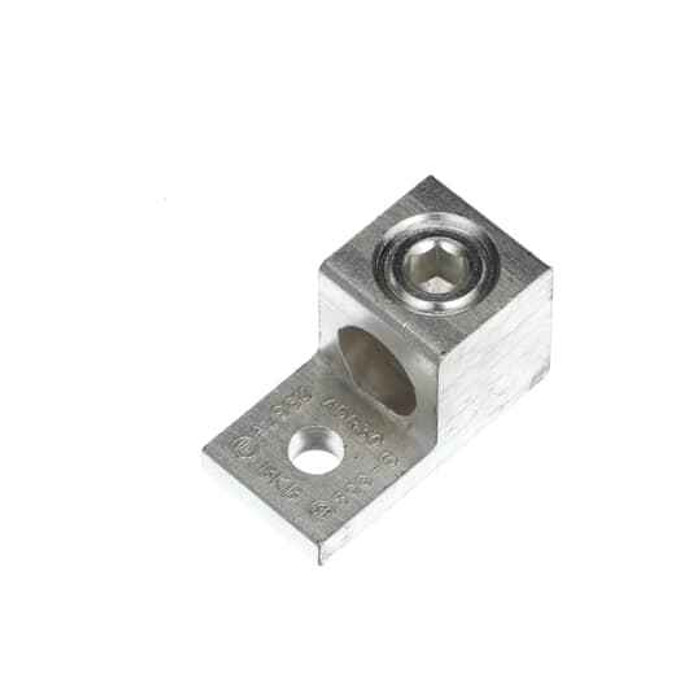

AL 1CNDTR 1HOLE MOUNT 6-300STR TP
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Dual-Rated Mechanical Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Surface Finishing:
- Tin-Plated
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Aluminum
Blackburn ADR30 – Frequently Asked Questions
1) What wire size range does the Blackburn ADR30 lug accept?
The ADR30 takes a single stranded conductor from 6 AWG up to 300 kcmil, which is the 6-300STR range in the part description. One conductor only, so if you have two cables landing on the same pad you need two lugs or a two-barrel connector.
2) Can I use the Blackburn ADR30 on copper wire, or is it aluminum only?
It's a dual-rated mechanical connector, so it's suitable for either aluminum or copper conductors. The body itself is aluminum with a tin plating, which is what lets it land copper without the dissimilar-metal problem you get with bare aluminum.
3) Is the ADR30 a one-hole or two-hole lug?
One-hole mount. It lands on a single bolt at the busbar, panel ground bar, or equipment pad. If your spec or drawing calls for a two-hole NEMA pad pattern to keep the cable from rotating, this isn't the right lug for that connection.
4) Does the ADR30 come insulated or do I need to tape or boot it?
Bare metal, no insulation on the connector. If the termination needs to be covered, plan on heat shrink, an insulating boot, or tape as a separate item.
5) Is the ADR30 a crimp lug or a set-screw type?
Mechanical, not compression. The conductor is clamped by set screw, so you install it with a hex or Allen wrench and torque to the marking on the connector body. No crimp tool or die set needed, which is why these are common for field service and retrofit work where nobody wants to haul a hydraulic crimper.
6) How is the Blackburn ADR30 sold, individually or in a bag?
Sold each, so you order the exact count you need. For a three-phase plus neutral and ground termination that's five pieces.
7) What is the manufacturer part number for this Blackburn one-hole aluminum lug, and where is it made?
Part number is ADR30 from Blackburn, manufactured in Mexico. That's the number to quote for the single-conductor, one-hole, 6-300 kcmil tin-plated aluminum lug.
