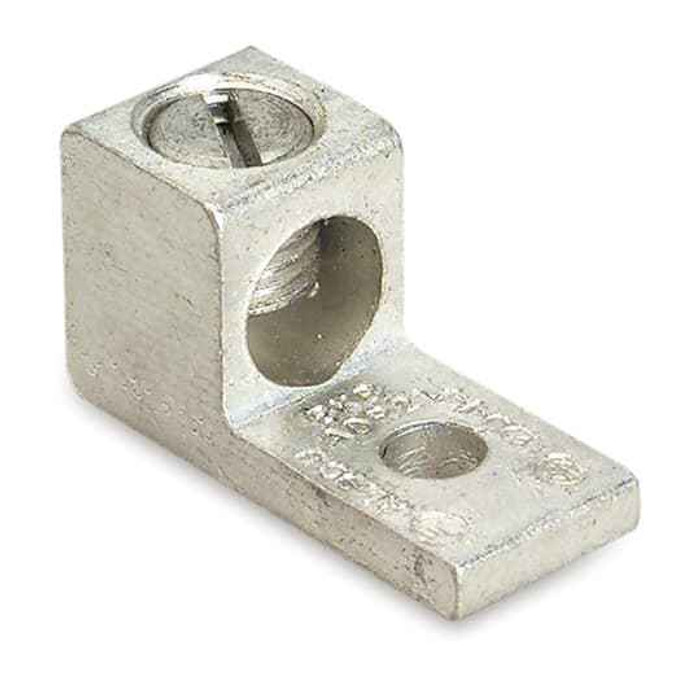

AL 1CNDTR 1HOLE MOUNT 2-14STR
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Dual-Rated Mechanical Connector
- Selling Unit Of Measure:
- each
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
Blackburn ADR2-B2-5 – Frequently Asked Questions
1) What wire sizes does the Blackburn ADR2-B2-5 lug accept?
The ADR2-B2-5 takes a single stranded conductor from 2 AWG down to 14 AWG. It is a one-conductor lug, so one run per connector; if you are landing two cables on the same stud you need two lugs or a two-conductor version.
2) Can I use this Blackburn lug on copper wire, or is it aluminum only?
It is a dual-rated mechanical connector, so it is listed for both aluminum and copper conductors within its 2-14 AWG stranded range. The body itself is aluminum, which is what the AL in the part description refers to.
3) How does the Blackburn ADR2-B2-5 mount to a panel or bus?
One-hole mount. The lug bolts down through a single hole, so it lands on a stud, bus bar tap, or drilled pad. Because there is only one bolt hole, the lug can rotate under torque until it is fully tightened, which is worth watching on a crowded panel where clearance to the next phase is tight. Use a two-hole lug where the spec calls for rotation-proof terminations.
4) Is this Blackburn connector a set-screw type lug or a compression lug?
Mechanical, not compression. The conductor is clamped by the connector's screw rather than crimped, so you install it with hand tools and a torque wrench instead of a hydraulic crimper. That also means it can be backed off and re-terminated if a cable has to be pulled.
5) Is the Blackburn ADR2-B2-5 sold individually or in a box?
Sold each. Order one per termination point, so a three-phase plus neutral landing takes four.
6) Where is the Blackburn ADR2-B2-5 made, for a Buy American or country-of-origin submittal?
Country of origin is Mexico. If your job carries a Buy American or domestic-content requirement on electrical connectors, this part will not satisfy it.
