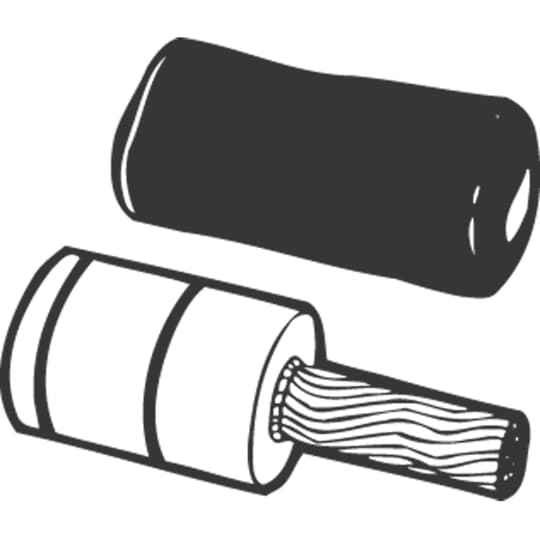

AL TP PIN ADPTR TERM 4/0STR RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire Termination
- Product Type:
- Aluminum Pin Terminal
- Replacement Product Id New :
- 7TAH007770R0085
- Selling Unit Of Measure:
- each
- Standards:
- UL E63167
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Department:
- Electrical
- Product Subgroup:
- Pin Terminals
- Product Color:
- Red
- Product Material:
- Aluminum
Blackburn PA41 – Frequently Asked Questions
1) What wire size does the Blackburn PA41 pin adapter terminal take?

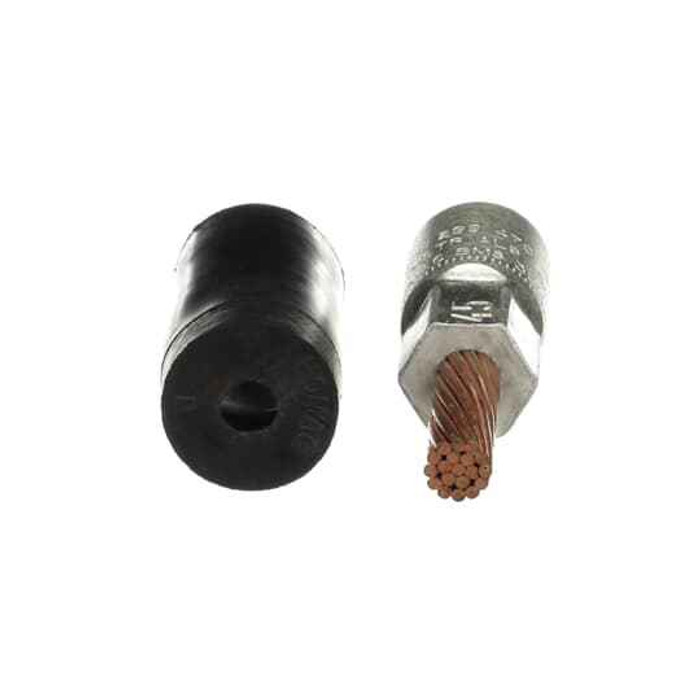

The PA41 is sized for 4/0 stranded conductor, which is what the "4/0STR" in the description refers to. It is a one-piece aluminum pin adapter terminal, so the barrel accepts the 4/0 cable and the solid pin end goes into the breaker or lug jaw. Red is the color code on this size.
2) Why would I use a pin adapter terminal instead of a compression lug on 4/0 cable?
A pin adapter converts a large stranded cable into a solid pin so it can land in a set-screw or clamp-type terminal that will not accept the full stranded bundle, typically breaker lugs, panel main terminals, and some switchgear. A compression lug is the choice when the equipment has a bolted pad. The PA41 is the pin style for 4/0 stranded.
3) Can I use the Blackburn PA41 on copper wire, or is it aluminum only?
The PA41 body is aluminum, and it is described as an AL terminal, meaning it is intended for aluminum conductors. If you are terminating copper 4/0, use a copper or dual-rated (AL9CU) pin terminal rather than this one.
4) I have a PA41 on an old submittal. Has the part number changed?
The current replacement product ID for the Blackburn PA41 is 7TAH007770R0085. The PA41 catalog designation is still how the part is called out, and the MPN on the item is PA41.
5) Where is the Blackburn PA41 terminal made?
Country of origin on the PA41 is the United States. That matters on public and institutional work with domestic sourcing requirements in the spec.
6) Is the PA41 sold individually or in a bag of multiples?
Selling unit is each, so one pin adapter terminal per unit ordered. Count your terminations, one per conductor, and order that quantity.
7) What does the red on the Blackburn PA41 indicate?
Red is the color coding on this aluminum pin adapter, used in the field to identify the conductor range at a glance when a panel has several sizes landed in it. On the PA41 that range is 4/0 stranded.
