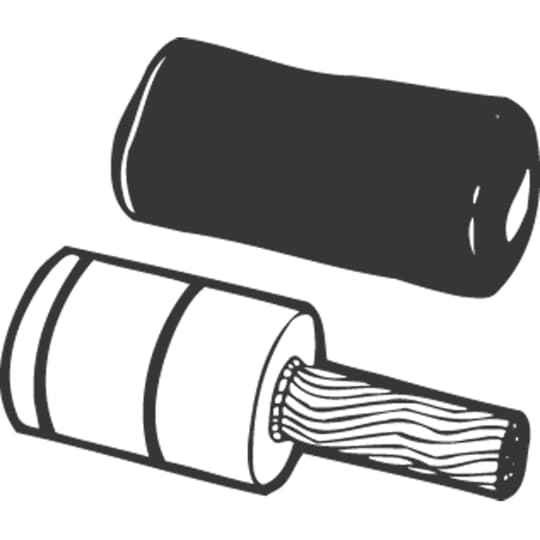

AL TP PIN ADPTR TERM 6STR
Manufacturer Resources
Product Specs
- Cable Size:
- 6 AWG
- Country Of Origin:
- United States (US)
- Product Group:
- Wire Termination
- Product Type:
- Aluminum Pin Terminal
- Replacement Product Id New :
- 7TAH007770R0071
- Selling Unit Of Measure:
- each
- Standards:
- UL E63167
- Stud Size:
- #8
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Department:
- Electrical
- Product Subgroup:
- Pin Terminals
- Product Material:
- Aluminum
Blackburn PA06 – Frequently Asked Questions
1) What wire size does the Blackburn PA06 pin adapter terminal take?
The PA06 is built for 6 AWG stranded conductor. It converts that stranded cable end into a solid pin, which is what you need when you're landing stranded wire into a breaker or terminal block that only accepts a solid or pin-style conductor.
2) Can the Blackburn PA06 be used on copper wire, or aluminum only?
The PA06 body is aluminum and the catalog description calls it out as tin plated. Tin plated aluminum connectors in this family are the dual-rated style used for aluminum or copper conductors, but the rating that governs your install is the one marked on the connector itself and on the equipment terminal. Match the 6 AWG conductor size and confirm the AL/CU marking on the part before landing copper in it.
3) Is the Blackburn PA06 pin terminal UL listed?
Yes. The PA06 carries UL file E63167.
4) Why would I use a pin adapter terminal instead of just landing the stranded wire directly?
Some breakers, meter sockets and terminal blocks are listed only for solid conductors or for a pin-type connection, and stranded 6 AWG will not seat properly or hold torque in that kind of terminal. A pin adapter like the PA06 crimps onto the 6 AWG stranded cable and gives you a solid pin to land instead. If your equipment terminal is already rated for stranded, you don't need one.
5) Is the Blackburn PA06 made in the USA for a Buy American job?
Country of origin on the PA06 is the United States, which is what a government or institutional procurement spec usually wants documented. Your contract may still require a separate manufacturer certification letter for the submittal.
6) I have an old Blackburn PA06 on the panel. What's the current part number to reorder?
PA06 is still the Blackburn catalog number to order. The current manufacturer product ID behind it is 7TAH007770R0071, which is what you may see referenced on newer packaging for the same 6 AWG aluminum pin adapter.
