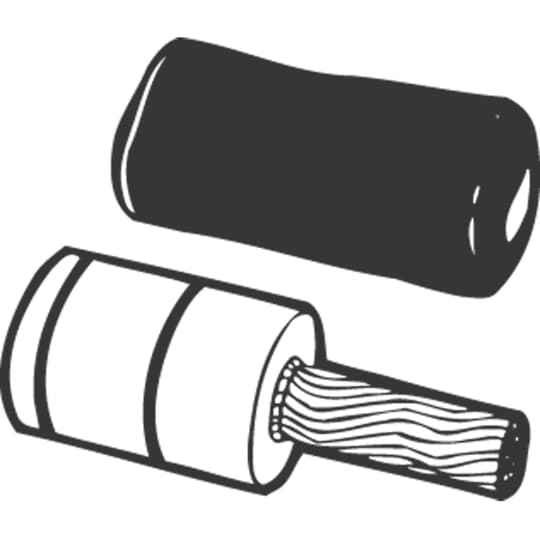

AL TP PIN ADPTR TERM 4STR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire Termination
- Product Type:
- Aluminum Pin Terminal
- Replacement Product Id New :
- 7TAH007770R0073
- Selling Unit Of Measure:
- each
- Standards:
- UL E63167
- Stud Size:
- #6
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Department:
- Electrical
- Product Subgroup:
- Pin Terminals
- Product Material:
- Aluminum
Blackburn PA04 – Frequently Asked Questions
1) What does the Blackburn PA04 pin adapter terminal actually do?
The PA04 is an aluminum pin adapter terminal. You crimp or land the stranded conductor in the barrel and it converts that stranded end into a solid pin, so the wire can be landed in equipment terminals built for a pin or solid conductor (breakers, panelboard lugs, terminal blocks). Blackburn lists it as a cable or wire lug type in aluminum.
2) What wire size does the Blackburn PA04 pin terminal take?
The PA04 is the 4 stranded version, per Blackburn's designation AL TP PIN ADPTR TERM 4STR. If you are terminating a different gauge, you need the matching pin adapter in that size rather than forcing this one.
3) Can I use the Blackburn PA04 on copper wire, or aluminum only?
The PA04 body is aluminum. Blackburn's catalogue description does not designate it as a dual-rated AL/CU connector, so treat it as an aluminum conductor terminal and use a connector marked AL9CU if you need to land copper. Mixing metals in a connector that is not dual rated invites galvanic corrosion at the termination.
4) What stud or screw size does the PA04 pin fit?
Stud size is #6. That is the equipment terminal or screw size the pin end is sized to, so check the lug or terminal block opening on your breaker before ordering.
5) Has the Blackburn PA04 been superseded by a newer part number?
Blackburn cross-references the PA04 to replacement product ID 7TAH007770R0073. If a supplier quotes you that number against a PA04 request, it is the same item under the current ABB-era numbering.
6) Is the Blackburn PA04 sold individually or in a bag?
Selling unit is each, so one terminal per order quantity. For a panel where you are landing several aluminum feeders, count your terminations and order that many.
7) Is the Blackburn PA04 made in the USA? We have domestic sourcing requirements.
Country of origin is the United States, which matters on federally funded and Buy American jobs where connectors have to be documented.
