Alarm Controls TS-1 - Request ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$151.00
$120.76
Alarm Controls Alarm Controls TS-1 - Request to Exit Station with Mushroom Push button and LEDs ACT-TS-1

Alarm Controls TS-1 - Request to Exit Station with Mushroom Push button and LEDs

(No reviews yet) Write a Review

Model: TS-1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$151.00
$120.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

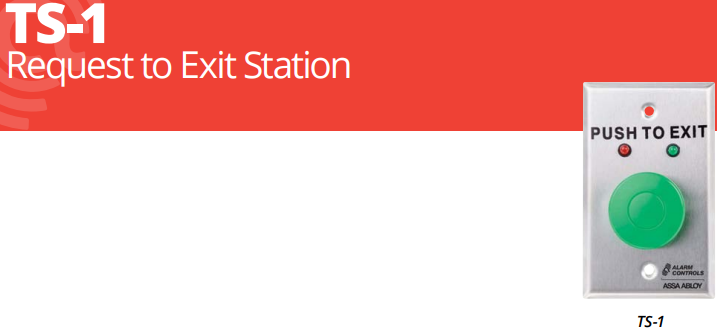

Alarm Controls TS-1 - Request to Exit Station

1-1/2" Green Mushroom Button, "PUSH TO EXIT", Momentary, Single Gang, Satin Stainless Steel


The TS-1 single gang request to exit station with
push button and LEDs provides a convenient way
to monitor the lock station. LED status indicators
provide an at-a-glance visual of system status.

Features
Standard Features
• Switch mounted on single gang wall plate with 430 stainless steel finish
• Large 1-1/2" green mushroom button
• Plate labeled “PUSH TO EXIT” for easy to follow egress instructions
• 1/4" red and green LED status indicators; illuminated with hibrightness LED
• Momentary action switch

Options
• TS-1L with alternate action switch
• TS-1R with red mushroom push button
• Finishes: multiple plate finishes available
• Other contact combinations available as custom part

Certifications & Listings
• UL 294 listed
• CSA Certified components
Electrical
• One N/O and N/C contact
• Contacts rated 10A at 35 VDC or 120 VAC
• Switch connection via screw terminals
• Switch depth behind plate: 2"
• LEDs operates on 12 or 24 VAC/VDC, independently wired
Operating Temperature
• -13F to +158 F (-25 to 70 C)

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Temperature Range:
Minus 13F to 158 F (Minus 25 to 70 C)
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Contact Action:
N/O and N/C Pair
Product Model:
TS-1
Product Voltage:
35/120 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-1 – Frequently Asked Questions

1) What is the difference between the Alarm Controls TS-1, TS-1L and TS-1R exit stations?
Three models share the same single gang stainless plate. The TS-1 is the momentary version with a 1-1/2 inch green mushroom button and red and green LEDs. The TS-1L is the same station with latching (alternate action) contacts, so the button stays in the state you press it into, which suits a door you want to hold unlocked. The TS-1R is the momentary version with a red mushroom button instead of green. Pick the button color to match the rest of your openings and the contact action to match how the door should behave.
2) Will the TS-1 push to exit station fit a standard single gang box?
It mounts to a single gang wall plate, and the switch body projects 2 inches behind the plate. Make sure your back box is deep enough to take that 2 inch switch depth plus your wiring, especially in a shallow box or a hollow metal jamb-side wall.
3) Can the TS-1 exit button switch a maglock directly, or do I need a relay?
The TS-1 carries one N/O and one N/C contact set rated 10A at 35 VDC or 120 VAC, so it can break a typical 12 or 24 VDC maglock circuit directly through the N/C contact without an added relay. Wiring lands on screw terminals.
4) Is the TS-1 request to exit station UL listed for access control?
UL 294 listed, with CSA certified components. That is the access control unit standard, which is what most AHJs and institutional specs call for on an electrically locked egress door.
5) Can the TS-1 exit button be used outdoors or in an unheated stairwell or garage?
Its rated operating range is -13F to +158F (-25 to 70C), so a parking garage, unheated stairwell or a loading dock vestibule is within spec. The plate itself is 430 stainless steel. It is a commercial-duty station, not a residential doorbell button.
6) Why choose a mushroom button exit station over a flat square illuminated button?
The 1-1/2 inch mushroom head stands proud of the plate, so it can be hit with a palm, an elbow or a gloved hand in a hurry, and the plate is labeled PUSH TO EXIT so the action is obvious to anyone unfamiliar with the door. A flush square style like the Dortronics 5215 Series illuminated push button sits flatter and lights the button itself instead of using separate status LEDs. Mushroom heads suit high-traffic egress and service corridors; flush buttons suit areas where you want less of a target for accidental presses.
7) Should I order the momentary TS-1 or the latching TS-1L for my door?
Momentary is the default for egress: the TS-1 releases the lock only while the button is held, then the door relocks. Choose the TS-1L latching version when staff need to press once to hold an opening unlocked, such as a delivery door during a shift or a conference room entry during business hours, and press again to relock. Both use the same single gang stainless plate and the same contact arrangement.
8) I need a latching exit button, not momentary - what should I order instead of the standard TS-1?
Order the TS-1L, which is the TS-1 with latching contacts, meaning the switch stays in its actuated state until pressed again rather than returning on release like the standard TS-1 momentary action switch. Everything else carries over: the 1-1/2 inch mushroom button, single gang plate, and the red and green LED status indicators. If you want the same physical station but in red rather than green, the TS-1R is the TS-1 with a red push button. The Dortronics 5215-SPB is a square illuminated button station and is a different button style rather than a latching variation of the TS-1.
9) Does the Dortronics 5215-SPB drop into the same box as the Alarm Controls TS-1?
Both are single gang stations, so both are built to mount on a standard single gang box or plate opening. The TS-1 needs 2 inches of switch depth behind the plate, which is the dimension to check against the box depth already in the wall. Beyond the footprint, confirm the wiring plan matches what you have pulled: the TS-1 provides one N/O and one N/C contact rated 10A at 35 VDC or 120 VAC on screw terminals, with the LEDs wired independently on 12 or 24 VAC/VDC. The Dortronics 5215-SPB uses an illuminated button, so the indication is integral to the button rather than separate LEDs on the plate.
10) Does the TS-1 exit station come in finishes other than stainless steel?
As catalogued the plate is satin stainless steel, and Alarm Controls notes multiple plate finishes are available on the TS series along with other contact combinations as a custom part. If you need to match brass or bronze hardware across a lobby, that is a custom plate order rather than a stock change.
