Alarm Controls - TS-3 Request to Exit Station

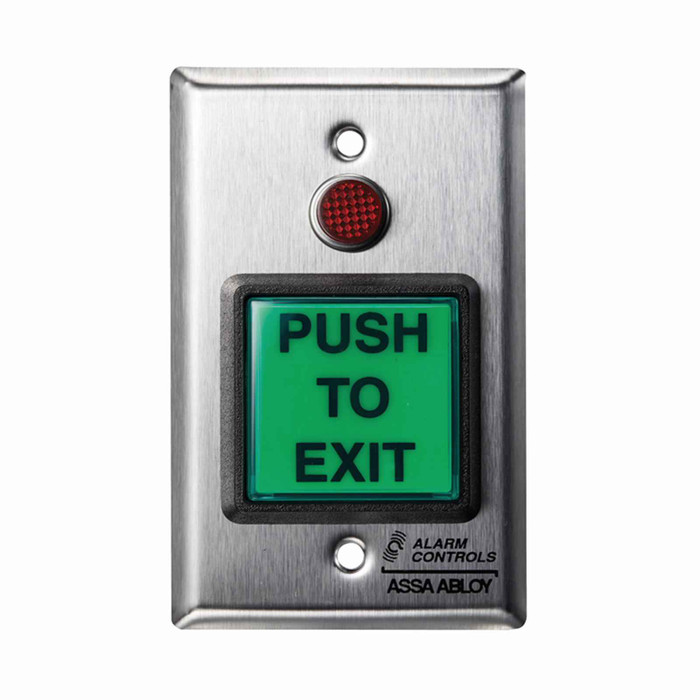

The TS-3 request to exit station with push
button and single LED, provides a convenient
way to add authorized access control for a
variety of applications. LED status indicator
offers an at-a-glance visual of system status.
Features
Standard Features
• Switch mounted on single gang wall plate with 430 stainless steel finish
• 2" green square push button; illuminated with hi-brightness LED
• Button labeled: “PUSH TO EXIT” for easy to follow egress instructions
• 1/2" bright red LED status indicator
• Momentary SPDT action switch
Options
• TS-3-2 with momentary DPDT output
• TS-3ENTER button labeled "PUSH TO ENTER"
• TS-3BLANK button left blank
Specifications
Certifications & Listings
• UL 294 listed
Electrical
• SPDT timed contacts, rated 10A at 35 VDC or 120 VAC
• Switch depth behind plate: 2-1/2"
• Switch terminated with 10” colored leads
• LED operates on 12 or 24 VAC/VDC
