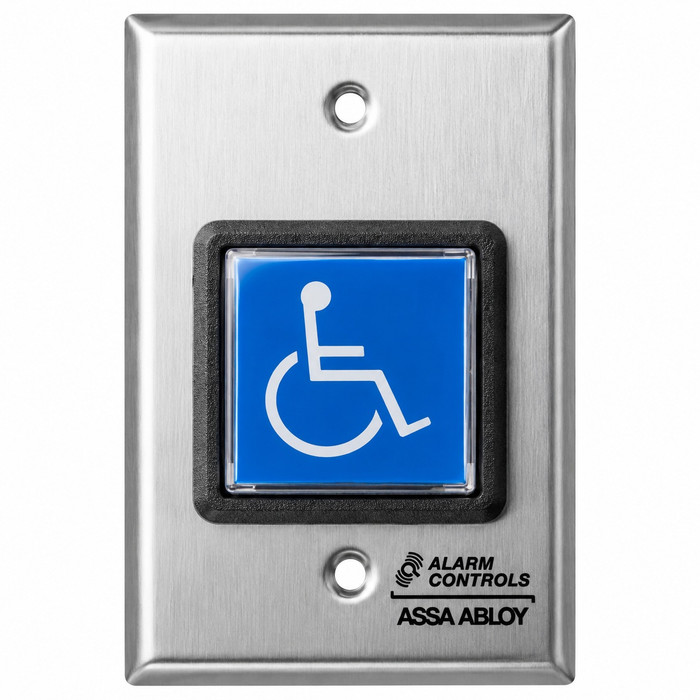

Alarm Controls TS-4 - Request to Exit Station with Blue Square Push Button, ADA Symbol

(No reviews yet) Write a Review

Model: TS-4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$77.00
$76.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

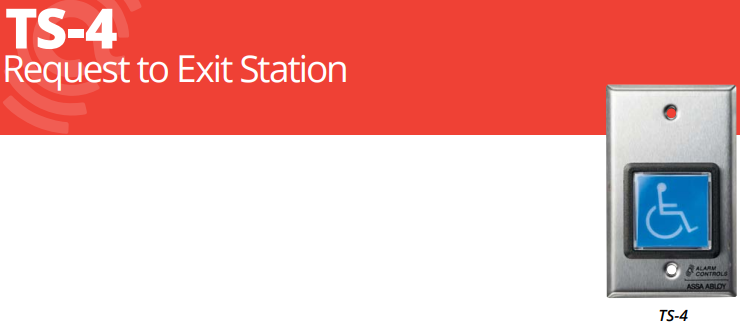

Alarm Controls - TS-4 Request to Exit Station

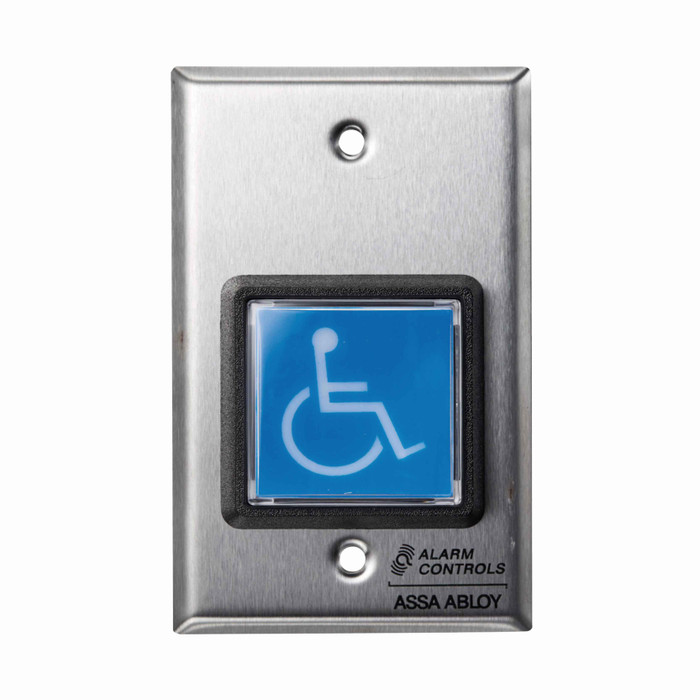

The TS-4 request to exit station, with square
push button, provides a convenient way to add
authorized access control to a variety of
applications. Blue push button is labeled with
ADA symbol to indicate accessibility compliance.

Features
Standard Features
• Switch mounted on single gang wall plate with 430 stainless steel finish
• 2" blue square push button; Illuminated with hi-brightness LED
• Button labeled with ADA symbol
• Momentary SPDT action switch

Options
• TS-4-2 with momentary DPDT output (one set of momentary, one set of timed contacts)

Specifications
Certifications & Listings
• UL 294 listed
Electrical
• SPDT timed contacts, rated 10A at 35 VDC or 120 VAC
• Switch depth behind plate: 2-1/2"
• Switch terminated with 10” colored leads
• LED operates on 12 or 24 VAC/VDC

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-4
Product Voltage:
35/120 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-4 – Frequently Asked Questions

1) What is the difference between the Alarm Controls TS-4 and the TS-4-2?
Contact configuration. The TS-4 is a momentary SPDT switch with contacts rated 10A at 35 VDC or 120 VAC. The TS-4-2 gives you momentary DPDT output, one set of momentary contacts and one set of timed contacts, rated 1A. Pick the TS-4 if you are simply pulsing a strike or mag lock release. Pick the TS-4-2 when you need a second set of contacts to drive something else at the same time, like a shunt to an alarm panel or an auto operator.
2) How deep does the back box need to be for an Alarm Controls TS-4 exit button?
The switch body projects 2-1/2 inches behind the wall plate, so the single gang box has to be at least that deep with room left for the wiring. A standard shallow old-work ring will not take it. The switch comes terminated with 10 inch colored leads, so plan for enough slack to make your splices inside the box.
3) Is the Alarm Controls TS-4 request to exit station UL listed for access control?
It is UL 294 listed, which is the access control system units standard. That matters if your job is being inspected against an access control spec or you are tying the button into a listed egress system.
4) Can I use the TS-4 to switch a 120 VAC load directly?
Yes on the TS-4. Its SPDT contacts are rated 10A at 35 VDC or 120 VAC, so it can carry a line voltage load directly within that rating. The TS-4-2 is different: its DPDT contacts are rated 1A, so use it for low current signaling and let a relay carry the load.
5) What is the closest alternative to the Alarm Controls TS-4 request to exit station if a smaller push button is preferred?
The Dortronics 5215-SPB exit release is the nearest counterpart. It uses a 1-1/2 inch square illuminated push button on a single gang plate, where the Alarm Controls TS-4 uses a 2 inch square blue illuminated button marked with the ADA symbol, also on a single gang plate. Both mount to a standard single gang box, so the swap is a faceplate-for-faceplate change at the opening. Choose the TS-4 when the ADA symbol marking on the button is required by the specification; choose the 5215-SPB when a smaller button face suits the location.
6) For a maglock release that needs both a momentary contact and a timed contact, is the Alarm Controls TS-4 or the Dortronics 5215-SPB the right choice?
Use the Alarm Controls TS-4-2, which provides momentary DPDT output with one set of momentary contacts and one set of timed contacts rated 1A. The base TS-4 gives a single momentary SPDT switch rated 10A at 35 VDC or 120 VAC, which is the choice when only one contact set is needed. The Dortronics 5215-SPB is catalogued as a square illuminated push button exit release in the 5215 series without a stated dual-contact output, so specify the TS-4-2 when the control scheme needs the second timed set.
7) Does the TS-4 push button light up, and what voltage does the LED need?
The 2 inch blue square button is illuminated with a high brightness LED, and that LED runs on 12 or 24 VAC or VDC. That is a separate feed from whatever you are switching through the contacts, so pull power for the LED as well when you rough in the wiring.
8) Does the blue ADA symbol on the TS-4 mean the button itself is ADA compliant?
The blue button is labeled with the ADA symbol to mark the opening as accessible, typically at a power operator or an accessible egress point. The marking identifies the button; it does not by itself certify the door assembly. If you want an unmarked button for a standard exit point, order a plain square push button station instead.
9) Is the TS-4 momentary or maintained? Will it hold the door unlocked?
Momentary action. The contacts transfer only while the button is pressed, so it releases the door for the duration of the press, not until someone presses it again. If you need a timed release, the TS-4-2 adds a set of timed contacts alongside the momentary set.
10) If several openings in a building already use Dortronics 5215-SPB buttons, will an Alarm Controls TS-4 match them visually?
Not exactly. Both are single gang plates with a square illuminated push button, so the box and cutout are the same, but the Alarm Controls TS-4 button is 2 inches square and blue with an ADA symbol on a satin stainless steel plate, while the Dortronics 5215-SPB button is 1-1/2 inches square. For a run of doors that should look identical, standardize on one or the other rather than mixing; for a single accessible entrance added to an existing set, the TS-4 is the one that carries the accessibility marking.
11) What finish is the TS-4 wall plate, and will it match my other exit devices and plates?
The plate is 430 stainless steel in a satin stainless finish, which is the common commercial match for 630 satin stainless hardware, push plates and switch plates. On a lobby or corridor where the rest of the trim is brushed stainless, it blends without a special order.
