Alarm Controls Alarm Controls TS-7 & TS-9 Series - Request to Exit Station Square Push Button ACT-TS-7

Alarm Controls TS-7 & TS-9 Series - Request to Exit Station Square Push Button

(No reviews yet) Write a Review

Model: TS-7

In Stock (leaves warehouse same day if ordered before 3pm ET)

$93.00
$77.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

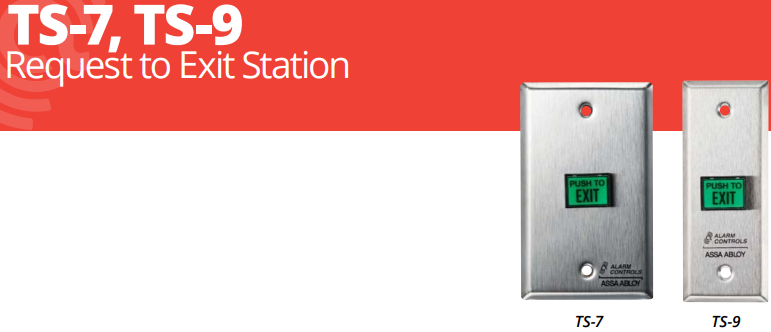

Alarm Controls - TS-7 & TS-9 Request to Exit Station

The single gang TS-7 and narrow stile TS-9
request to exit stations with rectangular
push button, provide a convenient way to
add authorized access control for a variety
of applications.

Features
Standard Features

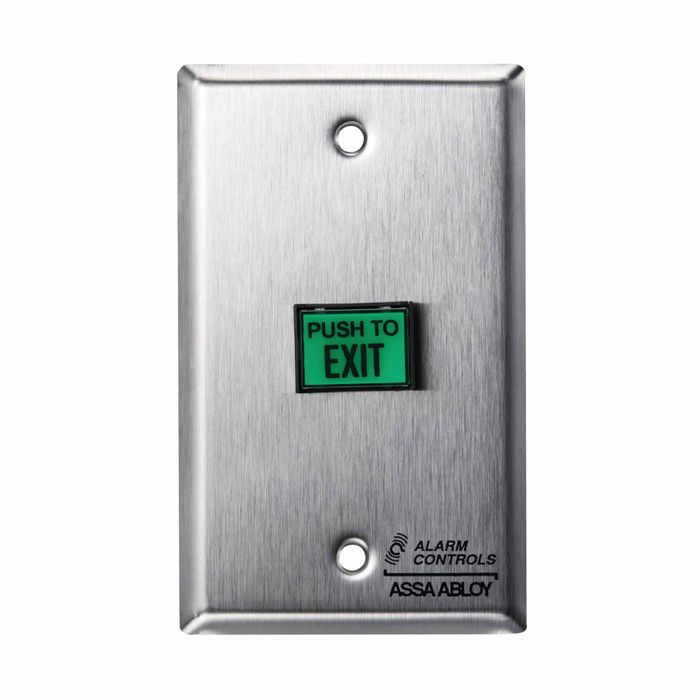

• TS-7 switch mounted on single gang wall plate with 430 stainless steel finish

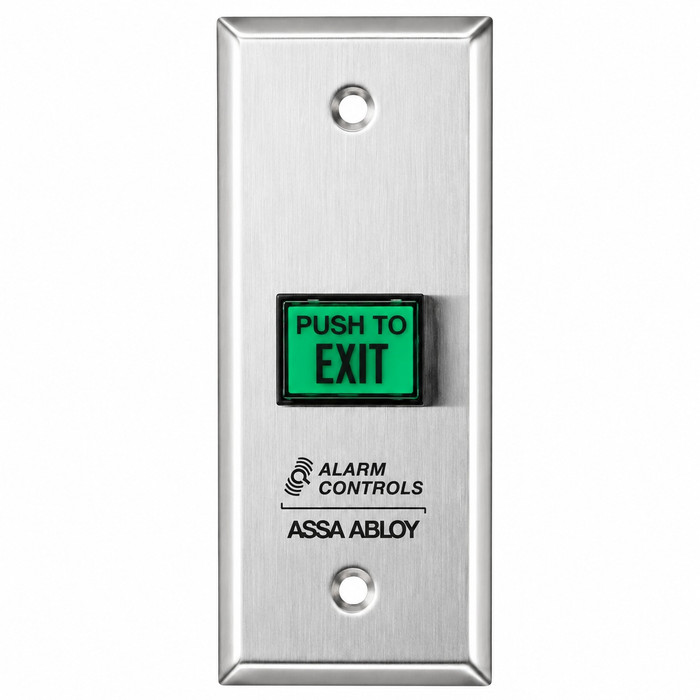

• TS-9 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
• 5/8" x 7/8" green rectangular push button; illuminated with hi-brightness LED
• Button labeled “PUSH TO EXIT” for easy to follow egress instructions
• Momentary DPDT action switch

Specifications
Certifications & Listings
• UL 294 listed
Electrical
• DPDT timed contacts, rated 3A at 35 VDC or 120 VAC
• Timed output is SPDT contacts rated 2A at 35VDC
• Switch depth behind plate: 1-1/4"
• Switch terminated with 10" colored leads
• LED operates on 12 or 24 VAC/VDC
Operating Temperature
• -13F to +158 F (-25 to 70 C)

Manufacturer Resources

Alarm Controls TS-21 Catalog

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Temperature Range:
Minus 13F to 158 F (Minus 25 to 70 C)
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-7
Product Voltage:
35/120 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-7 – Frequently Asked Questions

1) What's the difference between the Alarm Controls TS-7 and TS-9 exit push button stations?
Same button, different plate. The TS-7 switch is mounted on a single gang wall plate in 430 stainless steel. The TS-9 uses a narrow 1-3/4 inch plate in 302 stainless steel, which is what you want on an aluminum storefront or narrow stile door frame where a single gang plate won't fit. Both carry the same 5/8 x 7/8 inch green rectangular illuminated button labeled PUSH TO EXIT.
2) Will the TS-9 request to exit station fit a narrow stile aluminum door frame?
Yes. The TS-9 mounts on a narrow 1-3/4 inch stainless plate, which is the standard narrow mullion plate width used on aluminum storefront framing. Allow 1-1/4 inch of clearance behind the plate for the switch body.
3) Should I order the momentary, latching, or timed output version of the TS-7 exit station?
Pick by how the door needs to behave. Momentary is the standard request to exit input: the contacts transfer only while the button is held, which is what most access control panels and mag lock circuits expect. Latching stays transferred after one press until it's pressed again, for holding a door unlocked. Timed output releases for a preset interval on one press, so the door relocks without anyone going back to the button. All three are offered on both the single gang TS-7 and the narrow TS-9 plate.
4) Can the TS-7 exit button switch a 120 VAC circuit or does it have to be low voltage?
The DPDT contacts are rated 3A at 35 VDC or 120 VAC, so it will handle a line voltage load at that current as well as a low voltage access control input. On the timed output version, the timed contacts are SPDT rated 2A at 35 VDC only, so don't put 120 VAC through the timed side.
5) Is the Alarm Controls TS-7 exit button UL listed for access control?
Yes, the TS-7 and TS-9 request to exit stations are UL 294 listed, which is the access control system units standard your AHJ or spec writer will be looking for on an electrified egress opening.
6) What is the closest alternative to the Alarm Controls TS-7 request to exit button if I need a round or larger square button on a single gang plate?
The Dortronics 5215-SPB is a single gang exit release with a 1-1/2 inch square illuminated push button, so the actuator face is considerably larger than the 5/8 inch by 7/8 inch green rectangular button used on the TS-7. Both mount to a standard single gang box and both use an illuminated button, so the swap is a plate-for-plate change at the same opening. Choose the TS-7 when you want the molded "PUSH TO EXIT" legend on the button itself and a 430 stainless single gang plate; choose the 5215-SPB when a larger actuating surface is preferred, such as a high traffic corridor or a gloved-hand application.
7) I have a narrow aluminum stile and no room for a single gang plate - what should I use instead of the Dortronics 5215-SPB?
The Dortronics 5215-SPB is built on a single gang plate, which is wider than most glass door and storefront stiles will accept. For that opening use the TS-9, which carries the same 5/8 inch by 7/8 inch green "PUSH TO EXIT" button on a narrow 1-3/4 inch wall plate in 302 stainless steel, with the switch body projecting 1-1/4 inch behind the plate. The TS-9 is offered in momentary, latching, and timed output versions, so the narrow stile mount does not force you to give up the switch action you specified.
8) What voltage do I need to light up the LED in the Alarm Controls TS-7 button?
The hi-brightness LED in the green button runs on 12 or 24 VAC or VDC, so it drops onto the same auxiliary supply feeding most access control gear or mag locks. The LED is a separate feed from the switching contacts, so budget the wire run for it.
9) Can the TS-7 request to exit station be used on an exterior door or in a walk-in cooler vestibule?
Its rated operating range is -13 F to +158 F (-25 to 70 C), which covers unconditioned vestibules, cold storage anterooms, and most exterior applications. The plate is satin stainless steel. Note that no enclosure rating for direct water exposure is part of the spec, so treat it as a dry-location device behind a protected opening.
10) What's another single gang illuminated exit release push button if I don't want the rectangular button?
The Dortronics 5215-SPB is a single gang plate exit release with a 1-1/2 inch square illuminated push button, so it gives you a noticeably larger button face than the 5/8 x 7/8 inch rectangular button on the Alarm Controls TS-7. Both mount to a single gang plate. Only the TS family offers the narrow 1-3/4 inch plate option for storefront framing.
11) Does the Dortronics 5215-SPB give me a built-in timer the way the Alarm Controls TS-7 does?
The 5215-SPB is catalogued as an exit release with an illuminated square push button on a single gang plate. The TS-7 and TS-9 are ordered with the switch action chosen up front: momentary, latching, or with timed output, and the timed version provides SPDT timed contacts rated 2A at 35 VDC alongside the DPDT contacts rated 3A at 35 VDC or 120 VAC. If the door controller on your job does not supply its own unlock timing, specifying the TS-7 or TS-9 timed output version keeps the timing at the button and avoids adding a separate timer module.
12) For an exterior or unheated door, is the Alarm Controls TS-7 a better choice than other single gang exit buttons?
The TS-7 and TS-9 stations are rated for operation from -13 F to +158 F (-25 to 70 C) and are UL 294 listed, with the LED operating on 12 or 24 VAC/VDC. That temperature band covers unheated vestibules, parking structures, and exterior man doors in most climates. The Dortronics 5215-SPB is a comparable single gang illuminated exit release if you prefer its 1-1/2 inch square button face, but where the cold weather range is the deciding factor on the submittal, the published -13 F to +158 F figure on the TS series is the one to cite.
13) Will the TS-7 exit station match the other stainless plates already on my doors?
The plate finish is satin stainless steel, which is the usual match for existing stainless switch plates and door hardware in a commercial corridor. The TS-7 single gang plate is 430 stainless and the narrow TS-9 plate is 302, so there can be a slight difference in appearance between the two plate types if you mix them on adjacent openings.
14) Is this push button suitable for a commercial building or is it a residential device?
It's a commercial device. The TS-7 and TS-9 stations are built for commercial egress and access control openings, with stainless plates, UL 294 listing, and DPDT contacts sized for panel or mag lock circuits rather than a residential doorbell application.
15) If I standardize on satin stainless exit buttons across a building, will the TS-7 and TS-9 match each other?
Both are finished in satin stainless steel, so they read the same on the wall across a facility. The difference is the plate: the TS-7 uses a single gang wall plate in 430 stainless, while the TS-9 uses a narrow 1-3/4 inch plate in 302 stainless for aluminum stile doors. Ordering TS-7 at drywall and stud openings and TS-9 at storefront and glass entries lets one button legend and one finish carry through the whole building. The Dortronics 5215-SPB is a single gang alternative, but it has no narrow stile counterpart in the same family, so mixing it in would break the match at your glass doors.
