Alarm Controls Alarm Controls TS-4T Series - Request to Exit Station Square Push Button with Electronic Timer ACT-TS-4T

Alarm Controls TS-4T Series - Request to Exit Station Square Push Button with Electronic Timer

(No reviews yet) Write a Review

Model: TS-4T

In Stock (leaves warehouse same day if ordered before 3pm ET)

$181.00
$149.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Controls TS-4T Series - Request to Exit Station with Electronic Timer

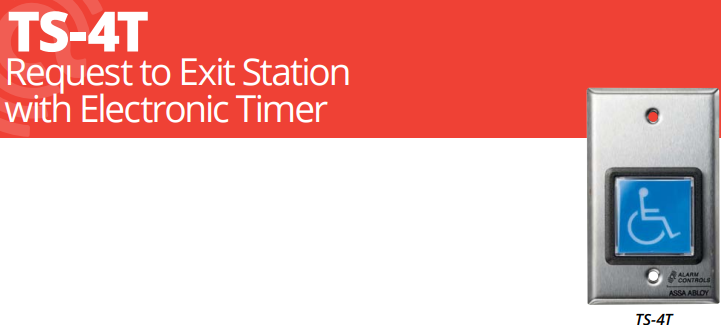

The TS-4T request to exit station with electronic
timer and square push button, provides a
convenient way to keep the door unlocked
for a specified amount of time, allowing for
easy entry or egress. The door will relock
when the relay time has expired. Blue
push button is labeled with ADA symbol
to indicate accessibility compliance.

Features
Standard Features
• Switch mounted on single gang wall plate with 430 stainless steel finish
• 2” blue square push button; illuminated with hi-brightness LED
• Button labeled with ADA symbol
• Momentary SPDT timed output
• Time delay is adjustable 2 to 44 seconds

Options
• TS-4-2T with two SPDT outputs (one set of momentary, one set of timed contacts)

Specifications
Certifications & Listings
• UL 294 listed
Electrical
• SPDT timed contacts, rated 2A at 35 VDC
• Switch depth behind plate: 2-1/2”
• Switch terminated with 10” colored leads
• LED operates on 12 or 24 VAC/VDC

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-4T
Product Voltage:
35 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-4T – Frequently Asked Questions

1) How long does the Alarm Controls TS-4T keep the door unlocked after someone presses the button?
The time delay is field adjustable from 2 to 44 seconds. Press the button, the timed relay holds the lock released for whatever you set, and the door relocks when the time expires. That makes it the right choice for an accessible entrance or a delivery door where someone needs a few seconds to get through, rather than a plain momentary release.
2) Will the TS-4T request to exit station switch my maglock directly, or do I need a relay?
Check your lock's current draw first. The timed contacts are rated 2A at 35 VDC, so a magnetic lock or electric strike drawing under 2 amps at 24 VDC or less can be switched directly. Anything above that, or any AC line voltage load, needs an interposing relay or a power supply with a trigger input.
3) How deep a wall box do I need behind the TS-4T push button plate?
Switch depth behind the plate is 2-1/2 inches, so plan on a single gang box with at least that much clear depth. It is terminated with 10 inch colored leads, which gives you enough tail to make up connections inside the box.
4) Is the TS-4T request to exit station UL listed for access control?
Yes, the TS-4T is UL 294 listed, which is the access control system units standard specifiers ask for on egress and card access hardware.
5) What is the difference between the Alarm Controls TS-4T and the Dortronics 5215-SPB exit release button?
Both are single gang illuminated square push button exit stations. The TS-4T uses a 2 inch blue square illuminated push button with an ADA symbol and includes an electronic timer with a momentary SPDT timed output adjustable from 2 to 44 seconds, so the door relocks automatically when the time expires. The Dortronics 5215-SPB is an exit release with a 1-1/2 inch square illuminated push button on a single gang plate. If the opening needs a held-unlocked interval rather than a simple release, the timed TS-4T is the one that does it.
6) For an ADA-marked egress button on a UL-listed access control opening, is the Dortronics 5215-SPB an equivalent to the TS-4T?
They are not interchangeable on that point. The TS-4T button is labeled with the ADA symbol to indicate accessibility compliance and the station is UL 294 listed, with SPDT timed contacts rated 2A at 35 VDC and a 2-1/2 inch switch depth behind the plate. The Dortronics 5215-SPB is described as a 1-1/2 inch square illuminated push button exit release on a single gang plate. If your specification calls out the ADA symbol on the actuator and a UL 294 listed station, specify the TS-4T.
7) What voltage does the illuminated button on the TS-4T run on?
The hi-brightness LED behind the blue button operates on 12 or 24 VAC or VDC, so it works off either common access control supply without a separate dropping resistor. Note the LED power is separate from the contact rating on the switch itself.
8) Does the TS-4T exit button meet accessibility requirements for a barrier-free entrance?
The blue button is labeled with the ADA symbol to indicate accessibility compliance, and the adjustable 2 to 44 second timer is what lets you hold the door long enough for a wheelchair user to clear the opening. Mounting height and reach range are still governed by your local code and the installer's layout.
9) I want a square illuminated exit button but I do not need a built-in timer. What else is there?
If the release timing is handled by your access panel or power supply, a plain exit release button is the simpler buy. The Dortronics 5215-SPB Series exit release uses a 1-1/2 inch square illuminated push button on a single gang plate. It is a smaller button face than the 2 inch blue ADA-marked button on the TS-4T, and the TS-4T is what you want when you need the unlock time set at the station itself.
10) My panel needs one momentary contact and one timed contact - does the TS-4T do that, or do I need a second button?
You do not need a second station. Within the TS Square line, the TS-4T provides a single SPDT timed output, while the TS-4-2T provides two SPDT outputs - one set of momentary contacts and one set of timed contacts - on the same 2 inch blue illuminated square button and single gang plate. The Dortronics 5215-SPB is an illuminated exit release button and would be a separate device if you tried to build the same two-contact arrangement from discrete parts.
11) Will a Dortronics 5215-SPB cover the same wall opening as an Alarm Controls TS-4T?
Both mount to a standard single gang box and plate, so the wall prep is the same family of opening. The button faces differ: the TS-4T carries a 2 inch blue square illuminated button on a 430 stainless steel single gang plate with a satin stainless finish, while the 5215-SPB uses a 1-1/2 inch square illuminated button. On a run of doors where the buttons are seen side by side, matching button size and plate finish is worth checking before you mix the two.
12) What finish is the TS-4T wall plate, and will it match other stainless devices in a lobby?
The switch is mounted on a single gang wall plate in 430 stainless steel, catalogued as satin stainless steel. That is the same look as standard commercial stainless cover plates and 630/US32D door hardware, so it blends with most institutional and lobby trim.
13) Is the TS-4T suitable for a commercial building or is it a residential product?
It is a commercial access control device: single gang stainless station, UL 294 listed, 2A at 35 VDC timed contacts. Typical uses are request to exit at maglocked doors, accessible entrances, and secured lobby doors in offices, schools, and healthcare.
