Alarm Controls TS-5T Series - Request to Exit Station with Electronic Timer

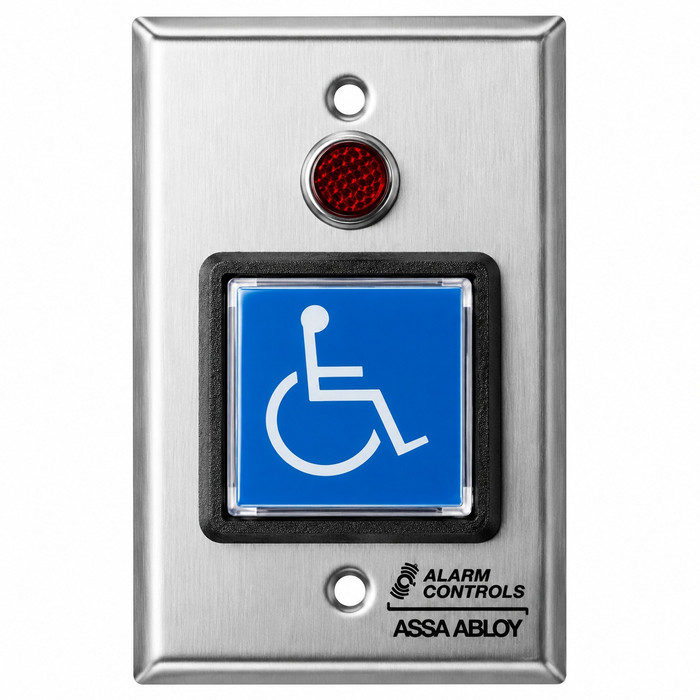

The TS-5T request to exit station with electronic
timer, square push button and single LED,
provides a convenient way to keep the door
unlocked for a specified amount of time,
allowing easy entry or egress. The door will
relock when the relay time has expired. Blue push
button is labeled with ADA symbol to indicate
accessibility compliance. LED status indicator
offers an at-a-glance visual of system status.

Features
Standard Features
• Switch mounted on single gang wall plate with 430 stainless steel finish
• 2” blue square push button; illuminated with hi-brightness LED
• Button labeled with ADA symbol
• 1/2" red LED status indicator
• Momentary SPDT timed output
• Time delay is adjustable 2 to 44 seconds

Options
• TS-5-2T two SPDT outputs (one set of momentary, one set of timed contacts)

Specifications
Certifications & Listings
• UL 294 listed
Electrical
• SPDT timed contacts, rated 2A at 35 VDC
• Switch depth behind plate: 2-1/2"
• Switch terminated with 10" colored leads
• LED operates on 12 or 24 VAC/VDC

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-5T
Product Voltage:
35 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-5T – Frequently Asked Questions

1) How long does the Alarm Controls TS-5T keep the door unlocked after the button is pressed?
The TS-5T holds its timed output for anywhere from 2 to 44 seconds, and the delay is adjustable on the unit. Press the button, the relay times out, and the door relocks on its own. That range covers a quick egress push as well as a longer ADA hold for someone moving through with a cart or wheelchair.
2) What is the difference between the TS-5T and the TS-5-2T?
Contact count. The TS-5T gives you a single SPDT timed output. The TS-5-2T gives you two SPDT sets, one momentary and one timed, so you can drop the lock on the timer while simultaneously signaling something else instantly, like a door position alarm shunt or an access panel input. Both use the same 2 inch blue illuminated square button with the ADA symbol, red LED and single gang plate. If you only need to release a mag lock, the TS-5T is enough.
3) Will the TS-5T push button fit a standard single gang box, and how deep does it need to be?
It mounts on a single gang wall plate, so a standard single gang box or ring is what you want. Allow 2-1/2 inches of switch depth behind the plate. A shallow box or a ring mounted on a thin mullion may not give you that clearance, so check depth before you cut in.
4) Can the TS-5T switch a 24V magnetic lock directly?
The timed contacts are rated 2A at 35 VDC, so they will carry a typical 12 or 24 VDC mag lock or strike drawing under 2 amps on the dry contact. Anything above that current, or any AC line voltage load, needs to go through an interposing relay or the power supply's relay input instead of straight through the button.
5) Is the TS-5T request to exit button ADA compliant for a public building?
The 2 inch blue push button is labeled with the ADA symbol to indicate accessibility compliance, and the adjustable 2 to 44 second timer lets you set a hold-open long enough for slower egress. It is a commercial-duty device, and it is UL 294 listed for access control system units.
6) How is the TS-5T wired in, and does it come with a pigtail?
The switch is terminated with 10 inch colored leads, so you splice to your run inside the gang box rather than landing wires on screw terminals. Keep that 10 inches in mind when you size the box, especially if you are also housing a power supply transition or a resistor.
7) I need a request to exit button with a larger button face for gloved hands - which square push button is bigger?
The Alarm Controls TS-5T carries a 2 inch square blue illuminated push button, while the Dortronics 5215-SPB uses a 1-1/2 inch square illuminated button. The TS-5T button is also labeled with the ADA symbol, which matters on accessible openings in healthcare and institutional buildings. Both mount to a single gang plate, so the wall prep is the same either way.
8) What finish is the TS-5T wall plate, and will it match the other plates in my building?
The plate is 430 stainless steel with a satin stainless finish, which is the standard look for commercial access control and matches most brushed stainless switch plates, door trim and push plates already on a commercial opening.
