Alarm Controls Alarm Controls TS-60 Series - Request to Exit Station 2-1/2" Red Mushroom Button with Pneumatic Timer ACT-TS-60

Alarm Controls TS-60 Series - Request to Exit Station 2-1/2" Red Mushroom Button with Pneumatic Timer

(No reviews yet) Write a Review

Model: TS-60

In Stock (leaves warehouse same day if ordered before 3pm ET)

$330.00
$236.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

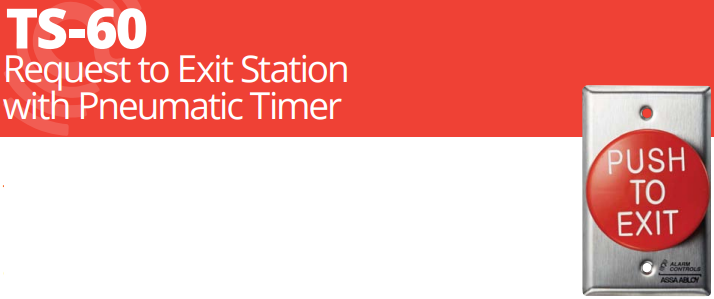

Alarm Controls TS-60 - Request to Exit Station
with Pneumatic Timer

The TS-60 request to exit station with
pneumatic timer and push button, provides
a convenient way to keep the door unlocked
for a specified amount of time, the door will
relock when the relay time has expired.
Extra large 2-1/2" red mushroom push
button offers a large target for easy entry
or egress.

Features
Standard Features
• Switch mounted on single gang wall plate with 430 stainless steel finish
• 2-1/2" extra large red mushroom push button
• Button engraved “PUSH TO EXIT” in white for easy to follow egress instructions
• Pneumatic time delay is adjustable 2 to 60 seconds

Specifications
Electrical
• One N/O contact and one N/C contact
• Contacts rated 10A at at 120 VDC
• Switch depth behind plate: 2-1/4"
• Switch time repeatable +/- 10%
Operating Temperature
• +15 to 120F (-9 to 49C)

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Temperature Range:
15 to 120F (Minus 9 to 49C)
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-60
Product Voltage:
120 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-60 – Frequently Asked Questions

1) Can the Alarm Controls TS-60 exit button hold a door unlocked for a set time instead of just a momentary release?
That's exactly what the TS-60 is for. It's a request to exit station with a pneumatic time delay built in, so pressing the mushroom button keeps the door unlocked and the relay drops the door back to locked when the delay expires. The delay is field adjustable from 2 to 60 seconds, and the timing repeats within plus or minus 10 percent. If you only need a momentary break in the lock power while someone pushes, a plain momentary exit button is the simpler part.
2) What size electrical box does the Alarm Controls TS-60 exit button need behind the wall?
A single gang box, and you need depth for it. The switch is mounted on a single gang wall plate and the switch body projects 2-1/4 inches behind the plate, so a shallow old work ring won't do it. Plan on a standard single gang box with at least that much clear depth behind the plate.
3) Is there an outdoor rated version of the Alarm Controls TS-60 exit button?
Yes, order the TS-60302. It's the same 2-1/2 inch red mushroom button and pneumatic timer as the standard TS-60, but on a weather resistant 302 stainless steel plate for exterior gates, loading docks, and other exposed locations. The standard TS-60 uses a 430 stainless plate in a satin finish and is meant for interior mounting.
4) What is the difference between the Alarm Controls TS-60 and the Dortronics 5215-SPB exit release?
Both are single gang wall plate push button stations for releasing a door from the secure side. The TS-60 uses a 2-1/2 inch red mushroom button engraved PUSH TO EXIT and carries a pneumatic time delay adjustable from 2 to 60 seconds, so the door stays unlocked for a set interval and relocks when the time expires. The Dortronics 5215-SPB uses a 1-1/2 inch square illuminated push button on a single gang plate, so the button itself is lit rather than oversized, and the release follows the button rather than a built-in pneumatic timer. Choose the TS-60 when the opening needs a timed unlock and a large target; choose the 5215-SPB when an illuminated button that is visible in a dark corridor is what the opening calls for.
5) I need a request to exit button that lights up so staff can find it in a dark hallway. Is the TS-60 the right choice?
The TS-60 button is a 2-1/2 inch red mushroom engraved PUSH TO EXIT in white, which gives a large, high contrast target but is not an illuminated button. If illumination is the deciding factor, the Dortronics 5215-SPB is a 1-1/2 inch square illuminated push button exit release on a single gang plate, so the button face itself is lit. Both mount to a single gang opening, so the rough-in at the wall is the same either way.
6) Can a TS-60 exit station be mounted in an unheated garage or a cold stairwell?
Its operating range is 15 to 120 degrees F (minus 9 to 49 C). That covers an unheated parking garage or a hot mechanical space in most of the country, but it isn't a deep freeze part, so a cold storage room or an unprotected exterior wall in a northern winter can drop below the low end. For exposed exterior mounting, the TS-60302 adds the weather resistant 302 stainless plate.
7) Why choose a mushroom style exit button over a small square push button?
Target size. The TS-60 uses an extra large 2-1/2 inch red mushroom button engraved PUSH TO EXIT in white, so someone leaving in a hurry, pushing a cart, or wearing gloves can hit it without aiming. A small flush button is tidier on a finished lobby wall but is a harder target in a corridor or a back of house exit. As a smaller alternative we carry the Dortronics 5215-SPB, a 1-1/2 inch square illuminated push button on a single gang plate.
8) Does the TS-60 need a separate timer module or power supply to hold the door open?
No separate timer. The delay is pneumatic and lives in the switch itself, adjustable 2 to 60 seconds, so there's no board to power and nothing to program. You still need whatever power supply your lock requires; the TS-60 only switches the circuit through its N/O and N/C contacts.
9) Which request to exit button holds up at an exterior door?
For an exterior opening, the TS-60302 is the version to look at: it is the TS-60 with a weather resistant 302 stainless steel plate, and the station is rated for operation from 15 to 120F (minus 9 to 49C). The standard TS-60 carries a 430 stainless steel single gang plate, and the Dortronics 5215-SPB is a single gang illuminated push button release, both of which suit an interior corridor or vestibule.
10) Is the Alarm Controls TS-60 push to exit station suitable for commercial buildings?
It's a commercial duty device: stainless steel single gang plate, engraved egress instructions, and a switch rated 10A at 120 VDC. Property managers standardizing across a building can use the same TS-60 at interior openings and the TS-60302 where the button is exposed to weather, keeping one look and one spare part across the site.
11) What finish does the TS-60 exit button plate come in, and will it match other stainless wall devices?
Satin stainless steel. The standard TS-60 plate is 430 stainless, which sits alongside typical satin stainless switch plates, card readers, and 630 finish door hardware without looking off. The weather resistant TS-60302 uses 302 stainless for exterior use.
