Alarm Controls TS-15 & TS-16 - Request to Exit Station
with Pneumatic Timer

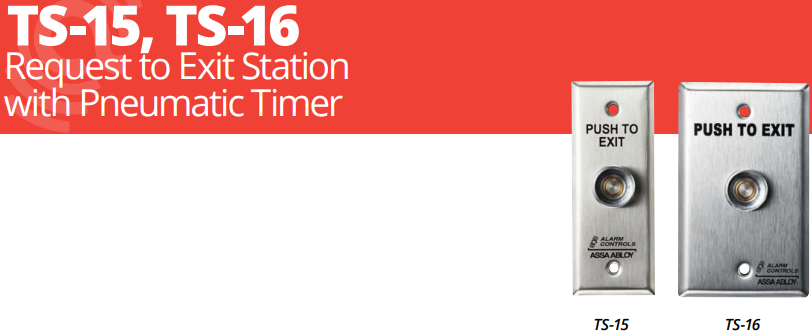

The narrow stile TS-15 and single gang TS-16
request to exit stations with pneumatic push
button timer, provide a convenient way to keep
the door unlocked for a specified amount of
time, allowing easy entry or egress. The door
will relock when the relay time has expired.
Features
Standard Features
• TS-15 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
• TS-16 switch mounted on single gang wall plate with 430 stainless steel finish
• 1/4" push button with guard ring
• Plate screened “PUSH TO EXIT” for easy to follow egress instructions
• Pneumatic time delay is adjustable 2 to 60 seconds
• Does not require external power for operation
• Timer life: up to 1 million operations
Specifications
Certifications & Listings
• UL 294 listed
Electrical
• Two sets of contacts, one N/O and one N/C, isolated
• Contacts rated 10A at 120 VDC
• Switch depth behind plate: 1-1/4”
• Switch time repeatable +/- 10%
• Switch terminated with 10” colored leads
Operating Temperature
• +15 to 120 F (-9 to 49C
Resources:
- Alarm Controls Product Catalog
- Alarm Controls TS-15 & TS-16 Catalog Pages
- Alarm Controls TS-15, TS-16 Push Buttons Installation Instructions
