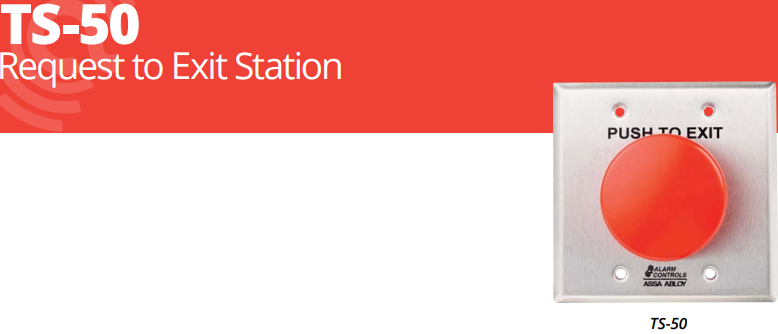

Alarm Controls TS-50 - Request to Exit Station

The TS-50 request to exit station with
push button, provides a convenient
way to add authorized access control
for a variety of applications. Extra large
2-1/2" mushroom push button offers
a large target for easy entry or egress
and is available in multiple colors.

Features
Standard Features
• Switch mounted on double gang wall plate with 402 stainless steel finish
• Extra large 2-1/2" red mushroom button
• Plate labeled “PUSH TO EXIT” for easy to follow egress instructions
• Momentary action switch

Options
• TS-50B with black mushroom button
• TS-50G with green mushroom button

Specifications
Electrical
• One N/O and N/C contact, rated 10A at 35 VDC or 120 VAC
• Switch connection via screw terminals
• Switch depth behind plate: 2"
Operating Temperature
• -13F to +158 F (-25 to 70 C)

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Temperature Range:
Minus 13F to 158 F (Minus 25 to 70 C)
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-50
Product Voltage:
35/120 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-50B – Frequently Asked Questions

1) What size electrical box do I need for the Alarm Controls TS-50 push to exit station?
The TS-50 mounts on a double gang wall plate, so you need a two-gang box. Allow 2 inches of depth behind the plate for the switch body.
2) Can the TS-50 exit button switch a 120 VAC door holder or maglock circuit directly?
It can. The TS-50 carries one N/O and one N/C contact rated 10A at 35 VDC or 120 VAC, wired through screw terminals, so it handles low voltage access control circuits and line voltage loads within that rating. The N/C side lets you break power to a maglock directly if you are not routing through a controller.
3) I only have a single gang box at the door. Can I still use the TS-50?
No. The TS-50 is built on a double gang plate and will not cover a single gang opening. Either change the box to two gang, or use a single gang unit such as the Dortronics 5215-SPB illuminated push button.
4) What is a single gang alternative to the Alarm Controls TS-50 request to exit station when the box in the wall is only one gang?
The TS-50 switch is mounted on a double gang wall plate, so it needs a two gang opening. Where only a single gang box exists, the Dortronics 5215-SPB exit release uses a single gang plate with a 1-1/2 inch square illuminated push button. That swaps the TS-50's extra large 2-1/2 inch mushroom button for a smaller square illuminated button, so confirm the target size still suits the traffic at the opening.
5) Will a Dortronics 5215-SPB drop into the same opening as an Alarm Controls TS-50 that is being replaced?
No. The TS-50 comes on a double gang stainless steel plate with a satin stainless finish, while the Dortronics 5215-SPB is built on a single gang plate. Replacing one with the other means changing the box or adding an adapter plate, so for a straight like-for-like swap on an existing TS-50 opening, stay with the TS-50 and pick the red, black, or green button to match the others in the building.
6) Does the TS-50 button latch, or does it release as soon as you let go?
Momentary action. The mushroom button makes the contact only while pressed and returns on release, which is what an access control panel or timer expects from a request to exit input. If you need a maintained or latching state, this is not the switch.
7) Is the TS-50 exit station rated for an unheated garage or an exterior vestibule?
Its operating range runs from minus 13F to 158F (minus 25 to 70C), which covers unheated parking structures, loading docks and cold vestibules in most climates.
8) What button colors does the TS-50 come in, and how do I order them?
Three: red (the standard TS-50), black as the TS-50B, and green as the TS-50G. The plate itself is satin stainless steel on all three and is labeled PUSH TO EXIT. Many facilities use green for egress and red or black for door release so staff can tell the function at a glance.
9) Does the TS-50 plate come already marked for egress, or do I need to add a label?
The stainless plate is engraved PUSH TO EXIT from the factory, so no field labeling is needed for the egress instruction.
10) Will the TS-50 match the other stainless wall plates in my building?
The plate is 402 stainless steel with a satin stainless finish, which reads the same as standard brushed stainless device plates used across commercial corridors.
