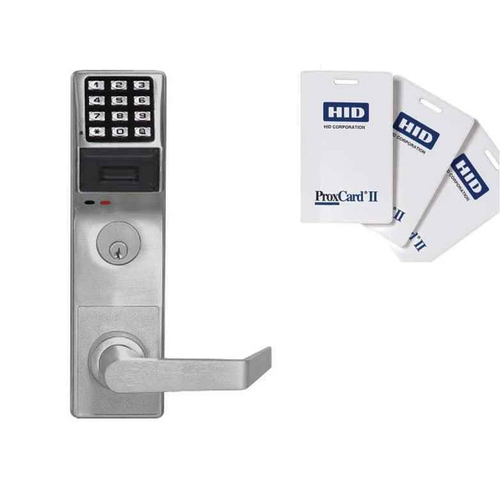

Alarm Lock PDL1300ET Electronic Exit Trim with Proximity Reader and Keypad - 2,000 User Capacity Battery-Operated System

(No reviews yet) Write a Review

Model: PDL1300ET/26D1
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,954.90
$1,107.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Lock PDL1300ET Electronic Exit Trim with Proximity Reader and Keypad - 2,000 User Capacity Battery-Operated System

Professional Narrow Stile Aluminum Door Retrofit System with Advanced Access Control

Aluminum door retrofit outside trim with proximity capabilities. Works with Arrow, DCI, Von Duprin, Corbin, Dor-o-matic, Dorma & Jackson panic exit devices. All narrow stile/exit locks are weather resistant. The Alarm Lock PDL1300ET delivers professional electronic access control for narrow stile aluminum doors with integrated proximity reader and pushbutton keypad functionality. This battery-operated exit trim retrofit system works seamlessly with Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 series spring latch and MS18505 & MS19505 series deadbolts, supporting 2,000 user capacity with 40,000 event audit trail capabilities. Weatherproof construction operates reliably from -31°F to +151°F with vandal-resistant 12-button keypad design and multiple backset compatibility including 31/32", 1-1/8", and 1-1/2" options.

Professional Features & Benefits

  • Extensive User Management: 2,000 user capacity supports master, manager, basic user and multiple one-time user codes for comprehensive access control in commercial environments.
  • Comprehensive Audit Trail: 40,000 event audit trail with real-time clock and 500 event schedule functionality provides detailed tracking and reporting for security compliance.
  • Long-Life Battery Operation: 2 DL123A lithium batteries deliver 100,000 cycles with low battery alert system for reliable operation without hardwired power requirements.
  • Narrow Stile Compatibility: Specifically engineered for narrow stile aluminum doors with space-efficient dimensions and non-handed installation flexibility.
  • Dual Authentication Methods: Combines proximity reader technology with pushbutton keypad for flexible user authentication options and enhanced security protocols.
  • Weatherproof Construction: Operates reliably in extreme conditions from -31°F to +151°F for demanding outdoor commercial applications.
  • Multiple Backset Options: Supports 31/32", 1-1/8", and 1-1/2" backsets with interchangeable cores for versatile installation configurations.
  • Adams Rite Series Compatibility: Works seamlessly with Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 series spring latch and MS18505 & MS19505 series deadbolts for retrofit applications.

Technical Specifications

  • Door Thickness: 1 3/4" only
  • Handing: Non-handed
  • Power: 2 DL123A lithium batteries
  • Keypad: All metal, vandal resistant 12 button keypad supports 3–5 digit PIN codes and HID proximity cards & fobs
  • Cylinder: Supplied with 6 pin mortise standard cylinder SC1 Keyway. Accepts 1 3/8" or 1 1/2" cylinders
  • Note: ET Trim works with V33 LH (RHR) only

Installation & Operation

  1. Verify electrical requirements and confirm battery power specifications before beginning installation. Ensure 2 DL123A lithium batteries are available for initial setup.
  2. Disconnect any existing power sources and follow all applicable electrical codes and safety procedures during installation.
  3. Mount the exit trim unit on the narrow stile aluminum door ensuring adequate clearance for wiring access, proximity reader operation, and keypad functionality.
  4. Route and connect wiring according to manufacturer wiring diagrams, ensuring compatibility with Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 series or MS18505 & MS19505 series hardware.
  5. Configure operational settings including user codes, access schedules, proximity reader parameters, and audit trail functions per application requirements.
  6. Install batteries and test all functions including proximity reader operation, keypad authentication, mechanical lock engagement, and audit trail recording capabilities.
  7. Complete final inspection and document user codes and system settings. Refer to manufacturer documentation for complete programming instructions, user management procedures, and battery maintenance schedules.

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial Facility Access Control

Why Choose Alarm Lock Quality?

Alarm Lock delivers proven reliability with weatherproof construction rated for -31°F to +151°F operation, extensive 2,000 user management capabilities, and comprehensive 40,000 event audit trail functionality. The PDL1300ET system provides professional-grade access control with vandal-resistant 12-button keypad design and long-life battery operation delivering 100,000 cycles, ensuring dependable performance in demanding commercial applications with full compatibility across multiple Adams Rite lock series.

Product Specs

Series:
PDL1300 Series
Power:
Battery Operated
Application:
Pushbutton Keypad and Proximity Reader
Lock Type:
Cylindrical
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Subcategory:
Mortise Locks
Reader Type:
Keypad and Proximity
Product Type:
Exit Device Trim
Commercial/Residential:
Commercial
Battery Operated:
Yes
Batteries:
2 DL123A lithium batteries
Stile Type:
Narrow Stile
Audit Trail:
Yes
User Codes:
2,000
Electronic:
Yes
Product Attribute:
Electronic Locks
Backset (Distance):
31/32 ,1-1/8 and 1-1/2
Product Category:
Electronic Locks
Department:
Door Hardware

Alarm Lock PDL1300ET/26D1 – Frequently Asked Questions

1) Will the Alarm Lock PDL1300ET exit trim fit my aluminum storefront door?
The PDL1300ET is built for narrow stile aluminum doors, and it fits 1-3/4 inch doors only. It's a single-thickness trim, so a thicker or thinner leaf is out. Backset is covered at 31/32, 1-1/8, and 1-1/2 inches, which are the standard narrow stile backsets you'll find on an aluminum door. It's non-handed, so one unit works on either leaf of a pair.
2) Does the PDL1300ET need to be wired for power, or does it run on batteries?
No power run required. The trim is battery operated on 2 DL123A lithium cells, rated for 100,000 cycles, with a low battery alert. That's the reason this unit gets specified on storefront and glass doors, where pulling wire through an aluminum frame to a moving leaf is the expensive part of the job.
3) Can tenants use both a keycard and a PIN code on the Alarm Lock PDL1300ET?
Both. The trim reads HID proximity cards and fobs and accepts 3 to 5 digit PIN codes on an all-metal, vandal resistant 12 button keypad. You can mix credential types across the population, which is what you want when maintenance staff carry fobs and short-term contractors get a code instead.
4) What cylinder comes with the PDL1300ET, and can I key it into my existing system?
It ships with a 6 pin mortise standard cylinder in SC1 keyway, and it accepts 1-3/8 or 1-1/2 inch cylinders. If your building is keyed on something other than Schlage SC1, swap in a mortise cylinder of your own keyway in one of those two lengths and the trim keys into the existing system. Interchangeable cores are supported across the backset options.
5) What do I have to specify when ordering an Alarm Lock PDL1300ET?
Two choices. Finish, in US10B oil rubbed bronze or US26D satin chrome. And outside trim style: lever, knob, or thumb turn. All three trim styles come in both finishes. Beyond that you'll want to confirm the backset on the door (31/32, 1-1/8, or 1-1/2 inch) and the cylinder length you need, 1-3/8 or 1-1/2 inch.
6) Is the PDL1300ET a complete lock or just the outside trim?
Trim only. It's the outside half that carries the keypad, prox reader and cylinder, and it retrofits onto the latch or exit device already in the door. If your storefront has no Adams Rite latch or panic device in it yet, you need that hardware separately. This is the right part when the mechanical lock is fine and you want to get off keys.
7) Can I use the Alarm Lock PDL1300ET on a hollow metal or wood door?
No. It's a narrow stile trim sized for aluminum storefront and glass door stiles, with 31/32 to 1-1/2 inch backsets. A hollow metal or wood door runs a 2-3/8 or 2-3/4 inch backset and a standard cylindrical or mortise prep, which this trim does not cover. For those openings you want a wide stile or standard-prep electronic lock instead.
8) How many users and how much audit history does the PDL1300ET hold?
2,000 users, split across master, manager, basic user and one-time user codes, with a 40,000 event audit trail. There's a real-time clock and 500 event schedule capacity on board, so you can set doors to unlock on a calendar rather than propping them. For a property manager running turnover, that's enough capacity to avoid rekeying a building.
9) Will an Alarm Lock PDL1300ET hold up on an exterior door in a cold climate?
Rated for -31 F to +151 F, and the narrow stile and exit locks in this family are weather resistant. That covers exterior storefront entries through a northern winter and a southern summer without a vestibule.
10) Lever, knob, or thumb turn on an electronic exit trim, which should I pick?
Lever is the common pick on a commercial entry, and it's what most institutional facility standards call for on an accessible route. Knob is a lower-profile option where a lever would catch traffic or where you're matching adjacent openings. Thumb turn gives you a turn-piece rather than a graspable handle, used where the outside pull is separate from the release. All three are offered in US10B oil rubbed bronze and US26D satin chrome.
11) Do I need one PDL1300ET for each leaf on a pair of storefront doors?
One trim controls one leaf. On a pair where both leaves are active, you'd need a unit per leaf. Since the trim is non-handed, the same part works on either side of the pair with no left or right version to order, and the finish and trim style stay consistent across both.
