Alarm Lock PDL1300 Networx Ele...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,067.59
$930.12
Copy of Alarm Lock PDL1300 - Narrow Stile Pushbutton Aluminum Door Trim Retrofit Glass Doors with Prox Reader and Latch Locks

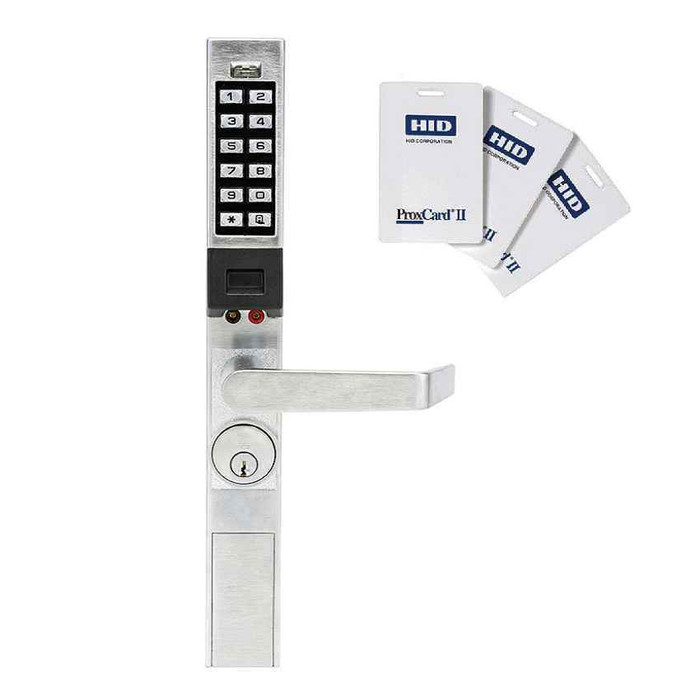

Alarm Lock PDL1300 Networx Electronic Pushbutton Door Trim with Proximity Reader and 2000 User Capacity

(No reviews yet) Write a Review

Model: PDL1300NW/26D1
$2,067.59
$930.12
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,067.59
$930.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Lock PDL1300 Networx Electronic Pushbutton Door Trim with Proximity Reader and 2000 User Capacity

Advanced Access Control Solution for Commercial Applications

Trilogy Networx Narrow Stile Wireless Access Proximity/Digital Lock Trim. Adds keyless access, automatic lock and free passage schedules to glass doors, plus remote keyfob support and emergency global lockdown capability. The Alarm Lock PDL1300 Networx combines pushbutton keypad and proximity card access control in a narrow stile aluminum door trim design. This battery-operated electronic lock supports up to 2000 users with HID Prox ID cards or 3-6 digit PIN codes, featuring a comprehensive 40,000 event audit trail and 500 event schedule with real-time clock functionality. Built for commercial applications with long-life battery operation rated for 65,000 cycles on 2 lithium 3V batteries.

Professional Features & Benefits

  • Dual Access Methods: Built-in HID proximity reader and pushbutton keypad support both HID Prox ID cards/fobs and 3-6 digit PIN codes for flexible user authentication.
  • High User Capacity: Supports up to 2000 users with comprehensive access management capabilities for large commercial facilities.
  • Comprehensive Audit Trail: 40,000 event time and date-stamped audit trail by user provides detailed access monitoring and security documentation.
  • Advanced Scheduling: 500 event schedule with real-time clock enables automated lock/unlock functions by time for operational efficiency.
  • Long-Life Battery Operation: Rated for 65,000 cycles on 2 DL123A lithium batteries with low battery alert for reliable operation.
  • Easy Enrollment: Tap & Add batch proximity card enrollment mode allows quick card addition without PC programming, plus downloadable programming options.
  • Narrow Stile Design: Aluminum door trim construction designed for narrow stile applications with multiple backset options.
  • PC Programming Integration: Full PC programming and reporting capabilities for comprehensive system management and user administration.

Technical Specifications

  • Latch Compatibility: Aluminum door retrofit keyless outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
  • Door Thickness: 1 3/4"
  • Backset: 31/32", 1 1/8" and 1 1/2"
  • Handing: Non-handed; fully field-reversible
  • Power: Standard AA batteries; advanced Power-Saver modes for 3–4 years or 100,000 cycles typical battery life
  • Keypad: All-metal, vandal-resistant 12-button keypad supports 3–6 digit PIN codes with multilevel user hierarchy (master, manager, supervisor, basic users)

Installation & Operation

  1. Verify door preparation meets narrow stile requirements and confirm backset compatibility (31/32", 1-1/8", or 1-1/2" options available).
  2. Install 2 DL123A lithium batteries in the unit before mounting to ensure proper initialization and programming capability.
  3. Mount the aluminum door trim assembly to the prepared door using manufacturer-provided templates and hardware specifications.
  4. Configure user access methods including proximity cards and PIN codes using either PC programming software or the Tap & Add enrollment mode for batch card setup.
  5. Program scheduling functions and audit trail settings through PC interface or onboard programming as required for the application.
  6. Test all access methods including proximity card reading, PIN code entry, and scheduled lock/unlock functions to verify proper operation.
  7. Complete system integration and user training. Refer to manufacturer documentation for complete programming instructions, audit trail management, and troubleshooting procedures.

Professional Applications

  • Commercial Office Building Access Control
  • Educational Facility Security Systems
  • Healthcare Institution Access Management
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial Facility Entry Points
  • Retail Security and Loss Prevention

Why Choose Alarm Lock Quality?

Alarm Lock PDL1300 Series electronic locks deliver professional-grade access control with aluminum construction rated for 65,000 battery cycles and comprehensive audit capabilities. The dual authentication system with 2000 user capacity and 40,000 event audit trail provides enterprise-level security management for demanding commercial applications where reliable electronic access control is essential.

Product Specs

Series:
PDL1300 Series
Power:
Battery Operated
Application:
Pushbutton Keypad and Proximity Reader
Lock Type:
Cylindrical
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Subcategory:
Mortise Locks
Reader Type:
Proximity
Product Type:
Exit Device Trim
Commercial/Residential:
Commercial
Battery Operated:
Yes
Batteries:
2 DL123A lithium batteries
Stile Type:
Narrow Stile
Audit Trail:
Yes
User Codes:
2,000
Product Attribute:
Electronic Locks
Electronic:
Yes
Backset (Distance):
31/32 ,1-1/8 and 1-1/2
Product Category:
Electronic Locks
Department:
Door Hardware

Alarm Lock PDL1300NW/26D1 – Frequently Asked Questions

1) Will the Alarm Lock PDL1300 fit my aluminum storefront door with an Adams Rite deadlatch?
That is exactly what the PDL1300 is built for. It's a keyless outside trim that retrofits aluminum doors running Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series latches and the MS1850S and MS1950S deadlocks. It mounts to a 1-3/4 inch door and comes in 31/32, 1-1/8, and 1-1/2 inch backsets, which are the standard narrow stile storefront backsets. Match the backset to the latch already in the stile and the existing latch stays in place.
2) Is the PDL1300 handed, or can I use one unit on either a left or right hand door?
Non-handed. The PDL1300 trim is fully field-reversible, so one part number covers both hands and you can flip it on site rather than ordering a specific hand. Useful if you're standardizing a stock of spares across a building with doors swinging both ways.
3) Does the PDL1300 use prox cards, a PIN code, or both?
Both, on the same unit. There's a built-in HID proximity reader for Prox ID cards and fobs, plus an all-metal 12-button keypad that takes 3 to 6 digit PIN codes. Capacity is 2,000 users total, and you can mix methods, some staff on cards, contractors or temps on codes. Users sit in a hierarchy of master, manager, supervisor, and basic.
4) What do I need to choose when ordering the Alarm Lock PDL1300?
Three things. Finish, offered in US26D satin chrome, US10B oil rubbed bronze, and US19 flat black. Cylinder, either standard or the version supporting Adams Rite 4710, 4730, and 4900 Series. And keying, which is a required selection, keyed different, keyed alike, or to a specific key code you supply. All configurations are lever trim.
5) Do I have to run power or wire to the door for the PDL1300?
No wiring to the door. The PDL1300 runs on 2 DL123A lithium batteries, so there is no transformer, no power transfer hinge, and no raceway through an aluminum stile. Rated for 65,000 cycles, with a low battery alert before it drops out. That is the main reason this trim goes onto existing glass storefront doors, no door prep for power.
6) Will the PDL1300 work on a standard 1-3/4 inch hollow metal or wood door?
Check the stile first. The PDL1300 is a narrow stile trim sized for aluminum storefront doors and the Adams Rite style latches that go in them, with backsets of 31/32, 1-1/8, or 1-1/2 inches. A wood or hollow metal door with a 2-3/4 inch backset cylindrical lock prep is the wrong opening for it, you'd want a standard-backset electronic cylindrical or mortise lock there instead.
7) Can I add prox cards to the PDL1300 without hooking up a laptop?
Yes. Tap and Add batch enrollment lets you present cards at the reader and add them straight into the lock, no PC required. That covers day-to-day turnover, a new tenant, a replacement fob. Full PC programming and reporting is there when you need the bigger picture, pulling the audit trail or building schedules.
8) Can the PDL1300 unlock the door automatically during business hours?
It can. The trim holds a 500 event schedule with a real-time clock, so you can set automatic lock and free passage windows by time of day, open the lobby at 8, secure it at 6, without anyone touching the door. Being Networx, it also supports remote keyfob operation and emergency global lockdown across the system.
9) How do I prove who went through a door with a PDL1300 on it?
The lock stores a 40,000 event audit trail, time and date stamped by user, and you pull it via the PC software. For a property manager or a healthcare or school facility that has to document after-hours access, that record is the whole reason to put an electronic trim on the door instead of a keyed cylinder.
10) Does the PDL1300 still have a key override if the batteries die?
Yes, the trim is cylinder-equipped and keying is a required choice at order, keyed different, keyed alike to an existing set, or cut to a key code you provide. Pick the cylinder option that matches your latch, standard or the Adams Rite 4710 / 4730 / 4900 Series version. If you're managing a portfolio, keyed alike lets one override key cover a group of doors.
