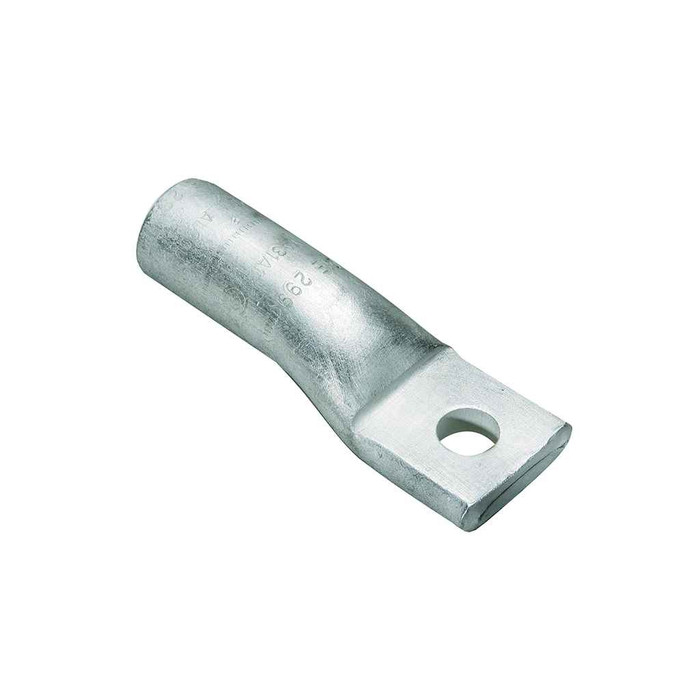

Burndy YA31A1 Aluminum Compression Lug, 1 Hole w/o Inspection Window, 350 kcmil, 1/2" Stud, Tin Plated

Burndy HYLUG YA-A Aluminum Compression Terminal 350 kcmil 1/2" Stud Tin Plated Dual-Rated

(No reviews yet) Write a Review

Model: YA31A1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.66
$24.66
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy HYLUG YA-A Aluminum Compression Terminal 350 kcmil 1/2" Stud Tin Plated Dual-Rated

Professional Heavy-Duty Electrical Termination Solution

The Burndy HYLUG YA-A aluminum compression terminal delivers reliable dual-rated performance for both aluminum and copper conductors up to 35 kV applications. Manufactured from high conductivity wrought aluminum with heavy-duty wall thickness, this tin-plated terminal features factory-prefilled PENETROX oxide inhibiting compound and color-coded end caps for professional installations requiring maximum conductivity and corrosion resistance.

Professional Features & Benefits

  • 350 kcmil Conductor Capacity: Accommodates both aluminum and copper stranded conductors for versatile installation flexibility
  • 35 kV Voltage Rating: Engineered for heavy-duty applications with high voltage capability and reliable performance
  • Electro-Tin Plated Finish: Provides durable long-lasting corrosion resistance for extended service life
  • Factory Prefilled PENETROX: Oxide inhibiting compound ensures excellent electrical continuity and airtight connections
  • UL Listed 90�C Rating: Meets UL468A-468B standards for quality electrical dual connections
  • Chamfered Barrel Design: Internally beveled barrel provides easy cable insertion and proper crimp formation
  • Color-Coded Identification: Brown color code and clear markings ensure proper die selection and installation

Technical Specifications

  • Application: For Aluminum And Copper Conductors
  • Certification Csa Approved: No
  • Certification Culus: No
  • Certification Etl: No
  • Certification Ul Recognized: No
  • Color Code: Brown
  • Conductor Al Str Size: 350 kcmil
  • Conductor Al Str Size Range: 350 kcmil
  • Conductor Copper Str Size: 350 kcmil
  • Conductor Copper Str Size Range: 350 kcmil
  • Connector Type: Terminal
  • Die Index: 299
  • Dimension B Length Fraction: 1-7/8 in
  • Dimension B Length Inch: 1.85 in
  • Dimension Bolt Hole Size Inch: 0.52 in
  • Dimension Bolt Size Fraction: 2-Jan
  • Dimension D Inch: 1.37 in
  • Dimension Hole Size Inch: 0.56 in
  • Dimension Hole Size Mm: 14 mm
  • Dimension L Length Overall Mm: 110 mm
  • Dimension Length Overall Inch: 4.33 in
  • Dimension N Inch: 0.63 in
  • Dimension Outside Diameter Inch: 1.11 in
  • Dimension Pad Width Inch: 1.52 in
  • Dimension Strip Length Inch: 2 1/8
  • Dimension Stud Size Inch: 2-Jan
  • Dimension Thread Size: 2-Jan
  • Dimension Z Inch: 0.74 in
  • Feature Barrel Style: Chamfered
  • Feature Barrel Type: Standard
  • Industry Standard S : UL468A-468B
  • Item Type: 3A
  • Physical Attribute Number Of Holes: 1
  • Physical Attribute Tongue Angle: Straight
  • Physical Attribute Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Material: Aluminum
  • Product Type: YA-A, Dual Rated
  • Rating Kva: 35 kV
  • Rating Minimum Voltage: 600
  • Standards Industry Standards Met: UL468A-468B
  • Standards Rohs Compliance Status: CM
  • Sub Brand: HYLUG
  • Temperature Rating: 194
  • Trade Name: HYLUG�
  • Ul Listed: Yes
  • Upc 12 Digit: 7.81811E+12
  • Voltage Maximum: 35000

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Power Distribution Systems
  • Commercial Electrical Installations
  • Utility Substation Connections
  • Heavy-Duty Motor Terminations
  • High-Voltage Panel Connections
  • Transformer Secondary Connections
  • Generator Connection Points

Why Choose Burndy Quality?

Burndy HYLUG terminals deliver proven reliability with UL Listed 90�C rating and compliance with UL468A-468B industry standards. The electro-tin plated finish and factory-prefilled PENETROX compound ensure long-term performance and corrosion resistance for professional electrical installations requiring dependable connections.
