Burndy HYLUG Compression Lug A...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$107.40
$51.87

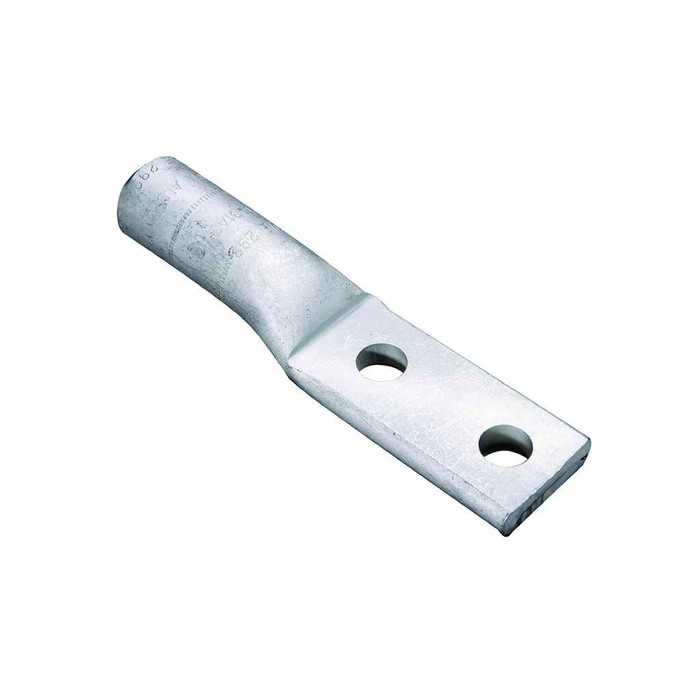

Burndy Aluminum Compression Lug, 2 Hole w/o Inspection Window, 600 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Al/Cu Rated, Tin Plated

Burndy HYLUG Compression Lug Aluminum 600 kcmil Two Hole Tin Plated 35kV

(No reviews yet) Write a Review

Model: YA36A3
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$107.40
$51.87
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy HYLUG Compression Lug Aluminum 600 kcmil Two Hole Tin Plated 35kV

Professional High Voltage Electrical Terminal for Power Distribution

The Burndy HYLUG Compression Lug delivers superior electrical connection performance for high voltage power distribution applications. This 600 kcmil, 35kV rated aluminum terminal provides exceptional conductivity and reliability designed for professional electricians, electrical contractors, and utility professionals, offering the proven performance and innovation that professionals expect from America's premier electrical connection manufacturer.

Professional Features & Benefits

High Voltage Performance

  • 35kV Voltage Rating - Engineered for high voltage applications with 600V minimum rating, providing reliable performance in utility and industrial power distribution systems
  • 600 kcmil Conductor Capacity - Accommodates both aluminum and copper stranded conductors up to 600 kcmil for versatile installation options
  • Dual Conductor Compatibility - Rated for both aluminum and copper conductors, offering flexibility in conductor selection and system design
  • UL Listed Performance - UL468A-468B compliant with 90°C temperature rating ensuring safe operation in demanding electrical environments

Professional Installation Design

  • Two Hole Configuration - Dual mounting holes provide secure mechanical connection and enhanced vibration resistance
  • Chamfered Barrel Design - Standard barrel with chamfered entry facilitates smooth conductor insertion and proper crimping
  • Die Index 473 Compatibility - Precision engineered for consistent compression with specified tooling for reliable connections

Corrosion Protection

  • Tin Electroplated Finish - Professional tin plating provides superior corrosion resistance and enhanced conductivity
  • Aluminum Construction - Lightweight yet durable aluminum body reduces installation weight while maintaining electrical performance

Technical Specifications

Conductor Size: 600 kcmil aluminum and copper stranded; Voltage Rating: 600V minimum, 35kV maximum; Temperature Rating: 194°F (90°C); Material: Aluminum with tin electroplating; Holes: 2 mounting holes; Overall Length: 7.09 inches; Outside Diameter: 1.44 inches; Stud Size: 1/2 inch; Bolt Hole Size: 0.39 inches; Standards: UL468A-468B listed; Color Code: Black; Trade Name: HYLUG; Tongue Angle: Straight; Barrel Style: Chamfered standard

Installation & Usage

  1. Strip conductor insulation to 2-7/8 inches as marked on lug barrel
  2. Insert prepared conductor fully into chamfered barrel opening
  3. Position compression tool with die index 473 over barrel
  4. Apply compression force according to manufacturer specifications
  5. Verify complete compression and conductor retention
  6. Mount lug using dual holes with appropriate hardware for application voltage

Professional Applications

Ideal for:

  • Utility Power Distribution - High voltage transmission and distribution connections requiring 35kV rating capability
  • Industrial Electrical Systems - Heavy duty power connections in manufacturing and processing facilities
  • Commercial Power Distribution - Large building electrical systems and power distribution panels
  • Transformer Connections - Primary and secondary connections on distribution and power transformers
  • Switchgear Applications - Bus connections and cable terminations in electrical switchgear assemblies
  • Motor Control Centers - High current connections for large motor and drive applications
  • Substation Equipment - Cable terminations and bus connections in electrical substations
  • Generator Connections - Power output connections for standby and prime power generators

Aluminum Construction Advantage

Burndy's choice of aluminum construction with tin electroplating provides the optimal balance of conductivity, corrosion resistance, and weight reduction. The tin plating enhances the natural conductivity of aluminum while providing superior protection against oxidation and corrosion, ensuring long-term electrical performance in demanding environments.

Why Choose Burndy Quality?

With over a century of electrical connection innovation, Burndy continues to set the standard for professional electrical termination products. Our HYLUG compression lugs are engineered to meet the demanding requirements of utility professionals and electrical contractors, featuring UL listing, rigorous quality control, and the proven reliability that has made Burndy the trusted choice for critical electrical connections across America's power infrastructure.



BUR-YA36A3 - spec sheet

Manufacturer Resources

Product Specs

Application:
For Aluminum & Copper Conductors
Certification Csa Approved:
No
Certification Culus:
No
Certification Etl:
No
Certification Ul Recognized:
No
Color Code:
Black
Conductor Al Str Size:
600 kcmil
Conductor Al Str Size Range:
600 kcmil
Conductor Copper Str Size:
600 kcmil
Conductor Copper Str Size Range:
600 kcmil
Connector Type:
Terminal
Die Index:
473
Dimension B Length Fraction:
2-1/2 in
Dimension B Length Inch:
2.47 in
Dimension Bolt Hole Size Inch:
0.39 in
Dimension Bolt Size Fraction:
8-Mar
Dimension D Inch:
3.15 in
Dimension Hole Size Inch:
0.56 in
Dimension Hole Size Mm:
14 mm
Dimension L Length Overall Mm:
180 mm
Dimension Length Overall Inch:
7.09 in
Dimension N Inch:
0.63 in
Dimension Outside Diameter Inch:
1.44 in
Dimension Pad Width Inch:
1.62 in
Dimension Strip Length Inch:
2 7/8
Dimension Stud Size Inch:
2-Jan
Dimension Thread Size:
8-Mar
Dimension Z Inch:
0.77 in
Feature Barrel Style:
Chamfered
Feature Barrel Type:
Standard
Industry Standard S :
UL468A-468B
Item Type:
3A
Physical Attribute Number Of Holes:
2
Physical Attribute Tongue Angle:
Straight
Physical Attribute Tongue Type:
Standard
Plated:
Y
Plating Type:
Tin - Electro Plated
Rating Kva:
35 kV
Rating Minimum Voltage:
600
Standards Industry Standards Met:
UL468A-468B
Standards Rohs Compliance Status:
CM
Sub Brand:
TERMINALS, HYLUG
Temperature Rating:
194
Trade Name:
HYLUG™
Ul Listed:
Yes
Voltage Maximum:
35000
Product Type:
Crimped Cable Lug
Product Group:
Wire Connectors & Termination Accessories
Department:
Electrical
Product Subgroup:
Crimped Cable Lug
Product Details:
YA36A3
Product Material:
Aluminum

Burndy YA36A3 – Frequently Asked Questions

1) What is this aluminum compression lug used for?
This 2-hole compression lug connects 600 kcmil aluminum or copper conductors to equipment terminals, bus bars, or other conductors in electrical distribution systems.
2) What wire sizes does this lug accept?
This lug is rated for 600 kcmil conductors. Verify exact wire range with manufacturer specifications before installation.
3) Can I use this with both aluminum and copper wire?
Yes, this lug is AL/CU rated for use with both aluminum and copper conductors. The tin plating prevents corrosion at connection points.
4) What does the tin plating provide?
Tin plating protects against corrosion and oxidation. It ensures reliable long-term connections in both indoor and outdoor electrical applications.
5) What size bolts fit the mounting holes?
This lug uses 1/2 inch studs with 1-3/4 inch stud hole spacing. Verify bolt torque specifications with manufacturer data.
6) Does this meet electrical code requirements?
AL/CU rated compression lugs typically meet NEC requirements when properly installed. Check local codes and manufacturer listings for your specific application.
7) What tools do I need for installation?
You need a compression tool rated for 600 kcmil lugs and appropriate wrenches for the 1/2 inch mounting studs. Use calibrated tooling for consistent results.
8) How do I prep the wire before crimping?
Strip conductor to proper length and clean aluminum wire with wire brush. Remove oxidation and apply joint compound per manufacturer recommendations.
9) What's the difference between 2-hole and single-hole lugs?
2-hole lugs provide more secure mechanical connection and better current distribution. Use them for high-current applications or where vibration is a concern.
10) Why doesn't this have an inspection window?
Some lugs omit inspection windows for cost savings or space constraints. Proper wire insertion depth must be verified by measuring before crimping.
11) How do I maintain these connections over time?
Check bolt torque annually and inspect for signs of overheating or corrosion. Retorque connections per manufacturer specifications if needed.
