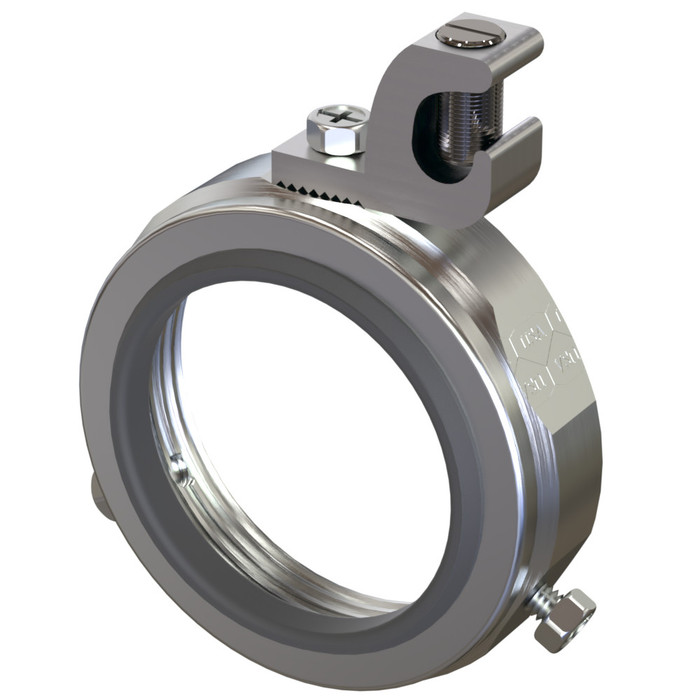

American Fittings GB200BGL0 Insulated Grounding Bushing with Lug, 2-Inch Alloy Steel

American Fittings GB200BGL0 Insulated Grounding Bushing with Lug, 2-Inch Alloy Steel

(No reviews yet) Write a Review

Model: GB200BGL0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

American Fittings GB200BGL0 Insulated Grounding Bushing with Lug, 2-Inch Alloy Steel

The American Fittings GB200BGL0 Insulated Grounding Bushing with Lug is a 2-Inch alloy steel fitting engineered to protect conductor insulation while providing a dependable bonding path for grounding and bonding conductors. Built to spec-grade standards for industrial electrical work, this insulated grounding bushing accepts grounding lug wire sizes from 8 AWG to 1/0 AWG, making it well suited for demanding commercial and industrial conduit systems.

Key Features

  • Trade Size: 2-Inch bushing sized for compatible conduit terminations in industrial electrical systems.
  • Durable Construction: Alloy steel body delivers the strength and durability required for demanding industrial applications.
  • Insulated Design: Integral insulation helps protect conductor insulation from abrasion at the conduit termination point.
  • Grounding Lug Included: Built-in grounding lug accommodates conductors from 8 AWG to 1/0 AWG for a secure bonding and grounding connection.
  • Spec-Grade Quality: Manufactured to spec-grade standards for consistent, reliable performance in industrial electrical installations.

Technical Specifications

  • Product Type: Grounding Accessory (Insulated Grounding Bushing with Lug)
  • Trade Size: 2-Inch
  • Material: Alloy Steel
  • Wire Range: 8 AWG - 1/0 AWG
  • Grade: Spec-Grade

Typical Applications

  • Industrial and Commercial Electrical Installations
  • Conduit Grounding and Bonding Systems
  • Rigid and IMC Conduit Terminations
  • Panelboard and Enclosure Bonding
  • New Construction and Retrofit Electrical Work

Why American Fittings?

American Fittings builds the GB200BGL0 insulated grounding bushing from alloy steel to spec-grade standards, giving electrical contractors a dependable, code-conscious solution for grounding and bonding conduit systems. The integrated grounding lug and insulated construction help protect conductors while maintaining a reliable bonding path, making this fitting a solid choice for industrial-grade electrical installations.

Manufacturer Resources

Product Specs

list_batch:
AMF-20260917
Product Type:
Grounding Bushing
Department:
Electrical
Product Group:
Grounding & Bonding
Product Subgroup:
Grounding & Bonding
Product Size:
2"

American Fittings GB200BGL0 – Frequently Asked Questions

1) What size conduit does the American Fittings GB200BGL0 grounding bushing fit?
The GB200BGL0 is a 2-inch trade size insulated grounding bushing. It threads onto 2-inch conduit terminations, and it's intended for rigid and IMC conduit runs entering panelboards and enclosures. If your run is a different trade size, you need the matching size bushing, not this one.
2) What wire size can I land on the lug of the GB200BGL0 bushing?
The built-in grounding lug takes bonding conductors from 8 AWG through 1/0 AWG. That covers the usual equipment grounding conductor sizes run alongside 2-inch conduit. Anything smaller than 8 AWG or larger than 1/0 won't seat properly in this lug.
3) Do I need a separate bonding lug if I use this insulated bushing?
No. The GB200BGL0 has the grounding lug built into the bushing, so one fitting both protects the conductors at the conduit end and gives you a point to land the bonding jumper. A plain insulated bushing with no lug would require adding a separate bonding bushing or lug to complete the path.
4) What's the difference between a plain insulated bushing and this grounding bushing with a lug?
A plain insulated bushing only does one job: the insulating throat keeps the conductor jackets from chafing on the cut end of the conduit. The GB200BGL0 does that and adds a lug so you can run a bonding jumper from the conduit to the enclosure or ground bar. Where you need continuity across a concentric or eccentric knockout, or across a nonmetallic section, the lugged version is the one to order.
5) Can I use this grounding bushing on a retrofit or only new construction?
Both. American Fittings lists the GB200BGL0 for new construction and retrofit electrical work, including panelboard and enclosure bonding on existing 2-inch rigid or IMC terminations. As long as the conduit end is threaded 2-inch trade size, it retrofits in place of an existing bushing.
6) Is the GB200BGL0 bushing steel or malleable iron?
Alloy steel body, built to spec-grade standards. That's the construction American Fittings specifies for industrial conduit work, where the bushing takes wrench torque on 2-inch rigid and has to hold a mechanical bonding connection.
7) What is the manufacturer part number for the 2-inch American Fittings insulated grounding bushing with lug?
GB200BGL0 is the American Fittings part number for the 2-inch insulated grounding bushing with lug. It is sold as a single model, so the part number alone identifies the exact item.
