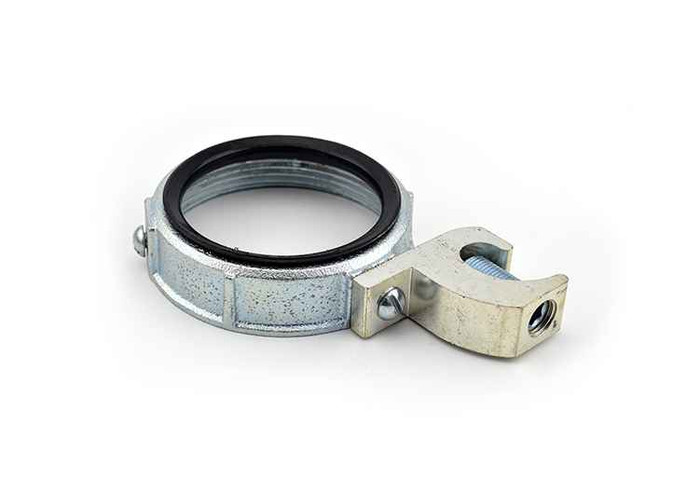

Bridgeport Fittings Heavy Duty Insulated Grounding Bushings with Tin-Plated Aluminum Lug

Bridgeport Fittings Heavy Duty Insulated Grounding Bushings with Tin-Plated Aluminum Lug

Professional Conduit Termination & Grounding Solution

Bridgeport Fittings Heavy Duty Insulated Grounding Bushings deliver reliable conduit termination and electrical grounding for professional installations. Featuring malleable iron construction with zinc electroplating and a tin-plated aluminum alloy 6061-T6 grounding lug, these bushings provide maximum precipitation hardening and corrosion resistance for demanding electrical applications.

Professional Features & Benefits

• Heavy Duty Wire Capacity: Accommodates larger conductor requirements for high-demand electrical installations and service applications.
• Malleable Iron Construction: Provides superior strength and durability for secure conduit connections in professional electrical systems.
• Zinc Electroplating: Delivers extended resistance to corrosion, ensuring long-term performance in various environmental conditions.
• Tin-Plated Aluminum Alloy 6061-T6 Grounding Lug: Offers maximum precipitation hardening and optimal electrical conductivity for reliable grounding connections.
• NEMA FB-1 Rating: Meets recognized electrical standards for professional installation confidence and code compliance.
• UL Listed (E20412): OSHA-recognized, NRTL-certified electrical standards ensure safety and reliability in critical applications.
• Grey with Black Insulator Design: Professional appearance with clear visual identification for proper installation and maintenance.

Technical Specifications

• Country Of Origin: China
• Department: Electrical
• Division: Electrical H1
• Field Application: Used with locknut to terminate service conduit to cabinet. Lug provided for bonding jumper to neut
• Grounded Insulated: The tin-plated aluminum alloy 6061-T6 grounding lug provides maximum precipitation hardening and th
• Nema Rating: FB-1
• Product Color: Grey with Black Insulator
• Product Finish: Zinc electro-plate. Grounding lug: Tin electro-plate
• Product Material: Malleable Iron
• Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-certified electrical standards and meets the str
• Sub Division: Electrical-E H2
• Ul File: E20412
• Zinc Electroplating: Zinc electroplated body provides extended resistance to corrosion

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Service Entrance Conduit Termination
• Electrical Panel and Cabinet Connections
• Commercial Building Electrical Systems
• Industrial Facility Installations
• Multi-Unit Residential Properties
• Professional Electrical Contractor Projects
• Code-Compliant Grounding Applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability through OSHA-recognized, NRTL-certified electrical standards and UL listing (E20412). The combination of malleable iron construction, zinc electroplating, and precision-engineered grounding components ensures dependable performance and extended service life in professional electrical installations.
