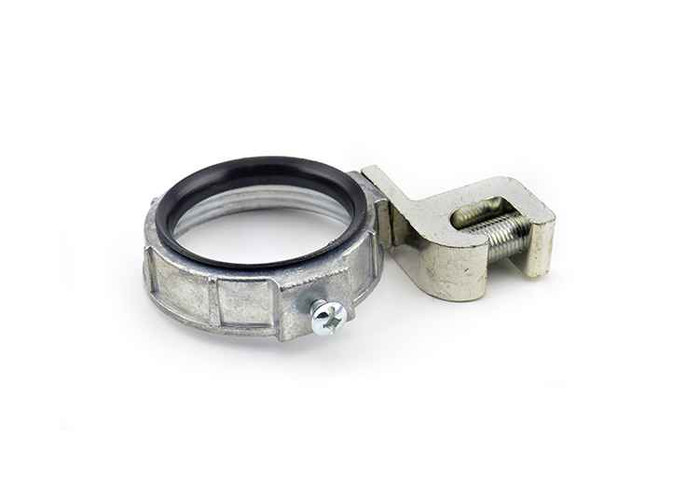

Bridgeport Fittings DC40 4" Insulated Grounding Bushing Heavy Duty Zinc Die Cast with Tin-Plated Lug

Bridgeport Fittings DC40 4" Insulated Grounding Bushing Heavy Duty Zinc Die Cast with Tin-Plated Lug

(No reviews yet) Write a Review

Model: 390-DC40

In Stock (leaves warehouse same day if ordered before 3pm ET)

$96.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings DC40 4" Insulated Grounding Bushing Heavy Duty Zinc Die Cast with Tin-Plated Lug

Professional Conduit Termination & Grounding Solution

Bridgeport Fittings DC40 4" Insulated Grounding Bushing delivers reliable conduit termination and grounding performance for industrial electrical installations. Featuring zinc die cast construction with ball burnished mirror smooth finish and tin-plated aluminum alloy 6061-T6 grounding lug, this heavy duty bushing provides maximum precipitation hardening and thermal performance rated to 150°C for demanding industrial environments.

Professional Features & Benefits

  • 4" Trade Size: Accommodates large conduit installations for high-capacity electrical service applications
  • 150°C Temperature Rating: Ensures reliable performance in industrial environments with elevated operating temperatures
  • Zinc Die Cast Construction: Provides exceptional durability and corrosion resistance for long-term service life
  • Tin-Plated Aluminum Alloy 6061-T6 Grounding Lug: Delivers maximum precipitation hardening and superior electrical conductivity
  • Ball Burnished Mirror Smooth Finish: Reduces installation friction and provides professional appearance
  • NEMA FB-1 Rating: Meets stringent electrical standards for commercial and industrial applications
  • UL Listed (E20412): Ensures compliance with recognized safety standards and code requirements

Technical Specifications

  • Bpt Trade Size: 4"
  • Collection Folder: 390-DC40
  • Country Of Origin: China
  • Department: Electrical
  • Division: Electrical H1
  • Eco Friendly: The byproducts of zinc casting can be melted down and recast to make new metals without property de
  • Field Application: Used with locknut to terminate service conduit to cabinet. Lug provided for bonding jumper to neutr
  • Grounded Insulated: The tin-plated aluminum alloy 6061-T6 grounding lug provides maximum precipitation hardening and th
  • Heat Rating: The bushing is temperature rated to 150°C for use in industrial environments
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-07T00:00:00.000Z
  • Product Color: Grey with Black Insulator
  • Product Finish: Ball burnished, mirror smooth, Grounding lug: Tin electro-plate
  • Product Length: 4.8125 in
  • Product Material: Zinc Die Cast
  • Product Weight: 74 lbs
  • Product Width: 3.875 in
  • Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-certified electrical standards and meets the str
  • Sub Division: Electrical-E H2
  • Ul File: E20412

Professional Applications

  • Industrial Service Entrance Installations
  • Commercial Electrical Panel Terminations
  • Heavy Duty Conduit Grounding Systems
  • Manufacturing Facility Electrical Infrastructure
  • Utility Service Equipment Connections
  • High-Capacity Electrical Distribution Systems

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability through OSHA-recognized, NRTL-certified electrical standards compliance and UL listing. The zinc die cast construction with eco-friendly recyclable materials and professional-grade tin electro-plate finish ensures long-term durability and performance in demanding industrial applications.

Manufacturer Resources

Product Specs

Bpt Trade Size:
4"
Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Color:
Grey with Black Insulator
Product Finish:
Ball burnished, mirror smooth, Grounding lug: Tin electro-plate
Product Length:
4.8125 in
Product Material:
Zinc Die Cast
Product Weight:
74 lbs
Product Width:
3.875 in
Sub Division:
Electrical-E H2
Certifications:
E20412
Product Type:
Grounding Bushing
Product Subgroup:
Grounding & Bonding
Product Group:
Grounding & Bonding

Bridgeport Fittings 390-DC40 – Frequently Asked Questions

1) Do I need anything else to install a 4 inch insulated grounding bushing on a service cabinet?
Plan on a locknut and a bonding jumper. The DC40 is used with a locknut to terminate service conduit into the cabinet, and its lug is there to take a bonding jumper to the neutral bar. The wire itself and the locknut are separate items.
2) Is the DC40 bushing UL listed for a service entrance inspection?
It is UL listed under file E20412 and carries a NEMA FB-1 rating, which is the standard covering fittings and conduit bodies. That is the documentation an inspector on a commercial service termination normally wants to see.
3) Will this grounding bushing hold up in a hot plant environment?
The bushing is temperature rated to 150 degrees C for industrial use, with a zinc die cast body and a tin-plated aluminum alloy 6061-T6 grounding lug. That covers boiler rooms, foundries, and other elevated ambient spaces where a standard plastic-insulated bushing would be marginal.
4) What is the difference between an insulated grounding bushing and a plain insulated bushing?
A plain insulated bushing only protects the conductors from the cut edge of the conduit. The DC40 does that with its black insulator throat and adds a tin-plated lug so you can land a bonding jumper and bring the conduit into the grounding system. If you have no bonding jumper to terminate, a plain insulated bushing is the cheaper correct part; if the conduit has to be bonded, you want the lug version.
5) Can I use the DC40 outdoors or in a damp location?
The zinc die cast body has a ball burnished, mirror smooth finish and the lug is tin electro-plated, which gives corrosion resistance for exterior service equipment and damp utility connections. It is a bushing, not a sealing fitting, so it does not make the entry watertight on its own.
6) Is the Bridgeport DC40 the same part as catalog number 390-DC40?
Yes. Bridgeport lists the 4 inch insulated grounding bushing as 390-DC40, and that is the only size configuration of the DC40.
