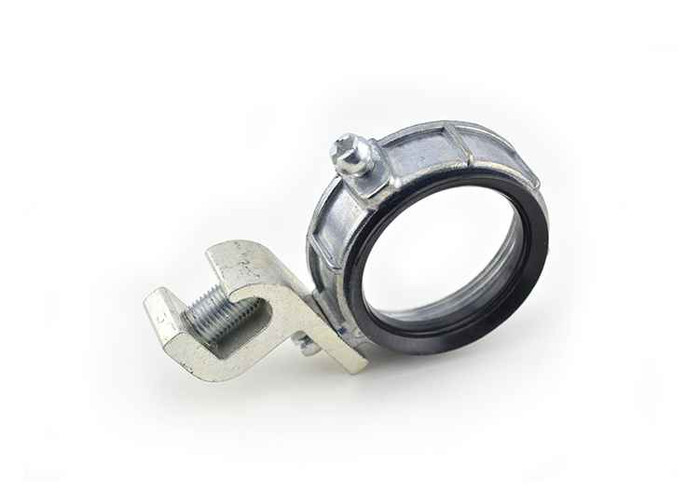

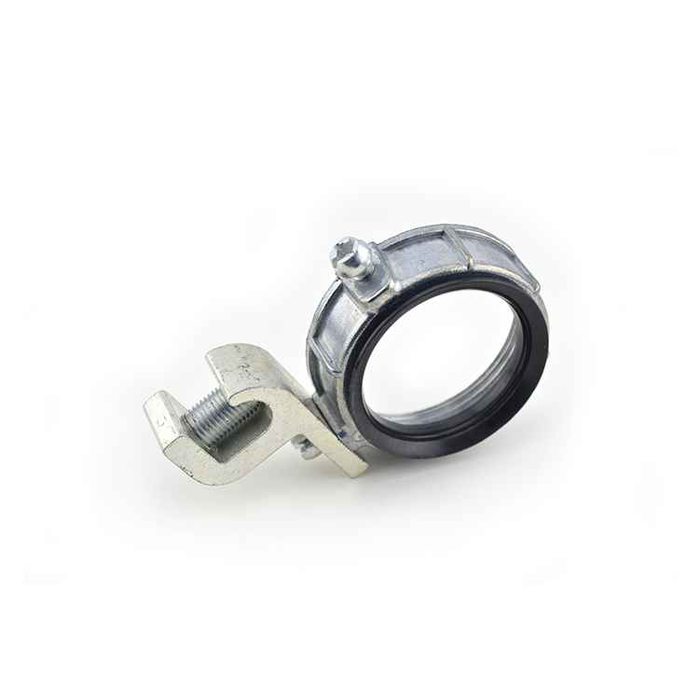

Bridgeport Fittings Insulated Grounding Bushings with Standard Wire Capacity - Zinc Die Cast Construction

Bridgeport Fittings Insulated Grounding Bushings with Standard Wire Capacity

Professional Conduit Termination & Grounding Solution

Bridgeport Fittings Insulated Grounding Bushings deliver reliable conduit termination and grounding performance for electrical installations. Featuring zinc die cast construction with grey finish and black insulator, these bushings provide secure service conduit termination to cabinets with integrated grounding capability. The tin-plated aluminum alloy grounding lug ensures maximum conductivity and corrosion resistance for professional electrical applications.

Professional Features & Benefits

• Zinc Die Cast Construction: Provides exceptional durability and dimensional stability for long-term performance in demanding electrical environments.
• 150°C Temperature Rating: Engineered for reliable operation in industrial environments with high ambient temperatures and thermal cycling.
• Tin-Plated Aluminum Alloy Grounding Lug: Delivers maximum precipitation hardening and superior electrical conductivity for effective equipment grounding.
• Ball Burnished Mirror Smooth Finish: Ensures smooth conduit installation and professional appearance while preventing wire damage during installation.
• NEMA FB-1 Rating: Meets stringent industry standards for electrical fittings in commercial and industrial applications.
• UL Listed (E20412): Certified to OSHA-recognized, NRTL electrical standards ensuring code compliance and safety.
• Eco-Friendly Design: Zinc casting byproducts can be melted down and recast without property degradation, supporting sustainable practices.

Technical Specifications

• Country Of Origin: China
• Department: Electrical
• Division: Electrical H1
• Eco Friendly: The byproducts of zinc casting can be melted down and recast to make new metals without property de
• Field Application: Used with locknut to terminate service conduit to cabinet. Lug provided for bonding jumper to neutr
• Grounded Insulated: The tin-plated aluminum alloy 6061-T6 grounding lug provides maximum precipitation hardening and th
• Heat Rating: The bushing is temperature rated to 150°C for use in industrial environments
• Nema Rating: FB-1
• Product Color: Grey with Black Insulator
• Product Finish: Ball burnished, mirror smooth, Grounding lug: Tin electro-plate
• Product Material: Zinc Die Cast
• Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-certified electrical standards and meets the str
• Sub Division: Electrical-E H2
• Ul File: E20412

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Systems
• Industrial Facility Conduit Terminations
• Service Panel and Cabinet Installations
• Equipment Grounding Applications
• Electrical Contractor Projects
• Maintenance and Retrofit Applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability through OSHA-recognized, NRTL-certified electrical standards compliance and UL listing. The zinc die cast construction with ball burnished finish ensures long-term durability, while the 150°C temperature rating provides confidence in demanding industrial environments.
