American Lock A3105CYKAMK Soli...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$70.71
American Lock American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Keyed Alike (Master Keyed) AME-A3105CYKAMK

American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Keyed Alike (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3105CYKAMK BLK 2KEY
$70.71
Selected Lockbody Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$70.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3105CYKAMK SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE STANDARD SFIC PADLOCK OVERVIEW

A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock. Small Format Interchangeable Cores & Padlocks - Aluminum.

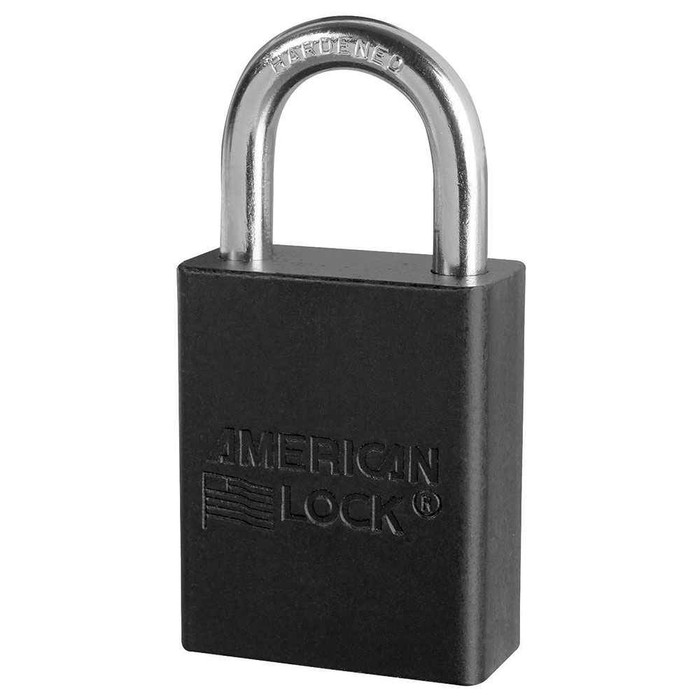

The American Lock No. A3105CYKAMK Small Format Interchangeable Core Solid Aluminum Padlock features a 1-1/2in (38mm) wide black aluminum body and a 1in (25mm) tall, 1/4in (6mm) diameter hardened boron shackle for superior cut resistance. Solid aluminum body is corrosion resistant, ideal for harsh environments while also being spark resistant and lightweight. A dual ball bearing mechanism resists pulling and prying and 16 interchangeable core keyways are available to match your door security system.

Buy the American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3105CYKAMK SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE STANDARD SFIC PADLOCK PRODUCT FEATURES

  • 1-1/2in (38mm) wide solid aluminum body offers strong protection against the elements
  • Durable black anodized finish withstands abuse and harsh environments
  • 1in (25mm) tall, 1/4in (6mm) diameter boron alloy steel shackle for superior cut resistance
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Self-Storage Units & Lockers
  • Tool Cribs
  • Utility Industry
  • Keying Options
  • Laser Engraving & Custom Marking
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - ALUMINUM COLLECTION

American Lock A3105CY (A3105CYKD) Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Keyed Different
American Lock A3105CYUN Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Uncombinated
American Lock A3105CYKA Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Keyed Alike
American Lock A3105CYMK Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Keyed Different (Master Keyed)
American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock, Standard SFIC Keyed Alike (Master Keyed)
American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3105WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3105WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3105WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3105WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3106WO (A3106WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3106WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3106WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3106WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3107WO (A3107WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3107WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3107WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3107WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3107WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
1/4"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder and Keyways:
(CY) Standard SFIC Keyway
Product Model:
A3105CYKAMK
Product Shackle Length:
1"
Product Style:
Small Format Interchangeable Cores & Padlocks
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Aluminum
Product Width:
1-1/2"
Department:
Door Hardware

American Lock AME-A3105CYKAMK BLK 2KEY – Frequently Asked Questions

1) What does the KAMK suffix mean on the American Lock A3105CYKAMK padlock?
KAMK means keyed alike and master keyed. Every lock in the order opens with the same change key, and all of them also operate under a master key. That is the setup for a group of self-storage units, lockers, or tool cribs where the crew carries one key and maintenance carries a master. If you want each lock on its own key under a master instead, that is the A3105CYMK; plain keyed alike with no master is the A3105CYKA; keyed different is A3105CY.
2) Does the A3105CY padlock come with a core installed, or do I have to supply my own SFIC?
The A3105CYKAMK ships with a standard SFIC cylinder already in it, cut to your keying. If you already run your own core program and want to drop in cores you control, order the WO version instead, the A3105WOKAMK, which is the same aluminum body supplied without a cylinder. There are also A3106WO and A3107WO bodies in that without-cylinder line if you need the taller shackles.
3) Will this padlock's shackle fit through my hasp? What are the shackle dimensions?
The shackle is 1/4 inch in diameter, 1 inch of vertical clearance, and 3/4 inch of horizontal clearance between the legs. So the hasp staple or chain link has to accept a 1/4 inch bar, and the material you are locking through has to fit within a 3/4 inch by 1 inch opening. Thick hasps or bulky gate chain often need more height, in which case step up to the A3106 or A3107 body.
4) Will this SFIC padlock accept the cores from the rest of my building's keying system?
It takes a standard small format interchangeable core, the same footprint used across most SFIC door hardware, and American Lock offers 16 interchangeable core keyways so it can be matched to the keyway your facility already runs. You do need to specify the keyway when ordering. If your system is a large format or proprietary core, this is not the lock.
5) What is the closest alternative to the American Lock A3105CYKAMK padlock if the site standard is Sargent removable core rather than SFIC?
The American Lock A3105CYKAMK is a solid aluminum padlock built around a standard SFIC keyway with a 1/4 inch diameter shackle and a 1-1/2 inch wide body. Where the keying program is Sargent removable core instead, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, so it accepts a Sargent core and gives a much taller shackle clearance than the 1 inch shackle length on the A3105CYKAMK.
6) I need an aluminum body safety padlock but 1-1/2 inch is too wide for the hasp - what is a narrower option than the A3105CYKAMK?
The American Lock A3105CYKAMK has a 1-1/2 inch wide solid aluminum body with a 1/4 inch shackle. For a tighter hasp, the ABUS 72/30 is an anodized aluminum safety padlock with a 1-1/4 inch body width and a 3/16 inch shackle diameter, so it fits a smaller opening and a thinner staple. Note the 72/30 is an ABUS 72 Series lock, not an SFIC padlock, so it will not take the small format cores the A3105CYKAMK is keyed around.
7) Is an aluminum padlock strong enough for outdoor or industrial use?
The body is solid aluminum, 1-1/2 inches wide, with a black anodized finish, and the shackle is hardened boron alloy steel for cut resistance. Aluminum gives you corrosion resistance and low weight, and it is spark resistant, which is why these get specified around fuel, utility, and gas work where a steel body is not wanted. A dual ball bearing locking mechanism resists pulling and prying.
8) Can I get these padlocks in colors to separate departments or crews?
Yes. The anodized body comes in black, blue, brown, clear, green, orange, purple, red and yellow. Color coding is the usual way facilities split locks by trade, shift, or tenant group while still keeping them all on one keyed alike master system.
9) How many keys come with each American Lock A3105CY padlock, and can I order fewer?
Standard is 2 keys per lock. You can also order 1 key per lock, 3, 4, or zero keys per lock, which is what most buyers do on a large keyed alike order where a hundred duplicate keys are just waste. Pick the key count on the order.
10) Can I get this padlock with a chain so it stays attached to the locker or gate?
Yes, it can be supplied with a #40 sash chain, 9 inches long, zinc plated, factory attached, or with no chain at all. The chain option is worth taking on lockers and gate applications where a loose padlock walks off the moment it is opened.
11) Do I need to give a key code when I order this master keyed padlock?
Yes. Because these are cut keyed alike under a master, the order asks for a key code so the cores are combinated to your existing system. If you are starting a new system rather than adding to one, you can leave it and the factory assigns the combination.
12) What else could I use instead of an aluminum SFIC padlock if my system is not SFIC?
If your facility runs removable core but not small format, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle. For a straight keyed padlock with no interchangeable core at all, the Sargent 758 is key retaining and the 858 is non-key retaining, both in US4 satin brass. Schlage's KS23D/KS23F is a brass body padlock with a 5/16 inch shackle. None of those give you the aluminum, spark resistant body or the SFIC core swap that the A3105CY does.
13) Is there a lighter aluminum padlock alternative with the same 1/4 inch shackle?
The ABUS 74/40 insulated safety padlock has the same 1/4 inch shackle diameter and 1-1/2 inch body width, with a 6 pin cylinder, and the ABUS 76/40 is a plastic covered aluminum core lock at 1/4 inch shackle and 1-37/64 inch width. Both are conventional cylinder locks, not SFIC, so they will not take the cores from your existing interchangeable core system the way the A3105CY does. For a smaller footprint, the ABUS 72/30 runs a 1-1/4 inch body with a 3/16 inch shackle.
14) What is a simpler keyed padlock alternative to the American Lock A3105CYKAMK when no interchangeable core program is in place?
The A3105CYKAMK is a commercial padlock built around a standard SFIC keyway so it can be keyed alike and master keyed across a system. If there is no core program to serve, the Sargent 758 is a key retaining standard padlock in a US4 satin brass finish, and the Schlage KS23D/KS23F is a brass padlock with a 5/16 inch diameter shackle. Both are fixed-cylinder locks rather than interchangeable core, so rekeying is handled at the cylinder instead of by swapping a core.
15) Do I need a key retaining padlock instead of the American Lock A3105CYKAMK for lockout use?
The A3105CYKAMK is a keyed solid aluminum SFIC padlock. Where key retention decides the choice, the Sargent 758 is a key retaining standard padlock, while the Sargent 858 is a non-key retaining padlock with a stainless steel shackle in US4 satin brass, and the Sargent 82-856 of the KESO Series is non-key retaining with a 2 inch by 2 inch brass case and stainless steel shackle. Matching that retention behavior to the procedure is the deciding spec, not the body material.
16) Is there an electronic padlock option if the American Lock A3105CYKAMK mechanical SFIC does not give the audit trail we need?
The A3105CYKAMK is a mechanical keyed padlock using a standard SFIC keyway. Where electronic access control is required at the padlock, the Medeco 54515G XT is an electronic indoor/outdoor padlock, non-key retaining, with a 5/16 inch shackle diameter and supplied with cylinder. It is a different credential system entirely, so it will not operate on the SFIC keys that run the A3105CYKAMK.
17) How are these padlocks packed for a bulk order?
They pack 6 per shelf pack and 24 per master carton, which is the number to work from when you are laying out a facility-wide rollout and want full cartons rather than loose counts.
18) For color coding locks by trade, is the A3105CYKAMK or an ABUS covered body the better pick?
The American Lock A3105CYKAMK comes in Black, Blue, Brown, Clear, Green, Orange, Purple, Red and Yellow lockbody colors on a solid aluminum body, which is how most color-coded SFIC programs get built. For a covered alternative, the ABUS 76/40 is a plastic-covered aluminum core padlock with a 1/4 inch shackle diameter and a 1 37/64 inch width, and the ABUS T84MB/30 Nautic uses a black sleeve over the body with a 13/64 inch shackle diameter and 1 17/64 inch body width. The ABUS locks are not SFIC, so they sit outside an interchangeable core master key system.
