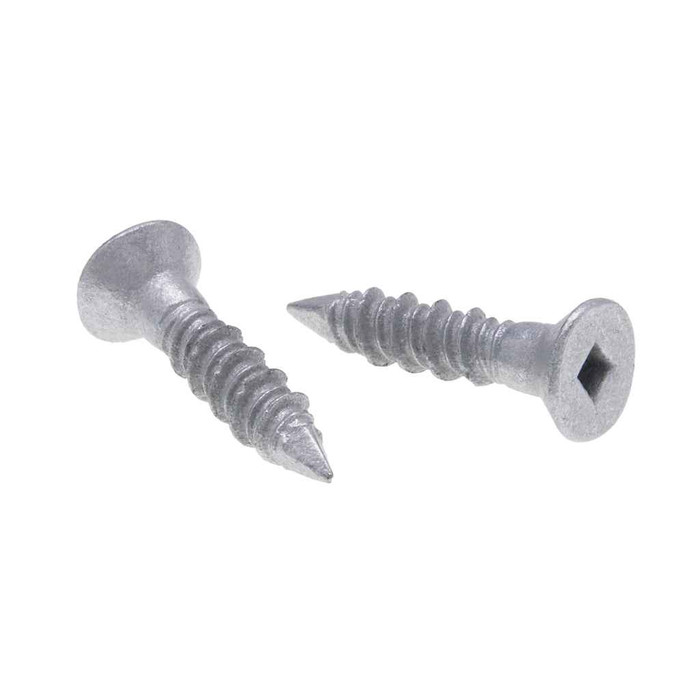

Anchor 1/4 x 1-3/4 Flat Hd Square Drive Concrete Screw Nail Point USA (100pcs)
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Screws
Metallics FSCS20 – Frequently Asked Questions
1) What size hole do I drill for a Metallics FSCS20 1/4 inch concrete screw?
The FSCS20 is a 1/4 inch diameter concrete screw, and 1/4 inch screws of this type are set in a 3/16 inch carbide bit hole drilled deeper than the embedment you want. At 1-3/4 inches overall length, subtract the thickness of whatever you are fastening to find how much screw is actually going into the concrete.
2) Is the Metallics FSCS20 a screw anchor or does it need a separate plastic or lead shield?
No shield or plug needed. The FSCS20 is a one piece concrete screw anchor: drill, blow the hole clean, and drive it straight into concrete or block. That is what separates it from a sleeve or drop-in anchor that requires a setting tool.
3) What driver bit do I need for the Metallics FSCS20 concrete screw?
Square drive, not Phillips or hex washer head. The FSCS20 has a flat head with a square recess, so you will need the matching square bit in the driver before you get on the ladder.
4) Will a flat head concrete screw sit flush for mounting strut or a panel against block?
Yes, that is the point of the flat head on the FSCS20. It countersinks into a chamfered or countersunk hole so the fixture seats flat against the substrate, unlike a hex washer head that stands proud. If your bracket has plain punched holes with no countersink, a hex head version seats better.
5) How many Metallics FSCS20 concrete screws come in a box?
100 pieces per box, all one size at 1/4 x 1-3/4 inches. For an electrical rough-in fastening straps, boxes, or conduit clamps to block or poured concrete, that is typically enough for a floor or a small run.
6) What does the nail point on the FSCS20 concrete screw do?
The nail point is a sharpened lead that helps the screw find and start in the drilled hole without walking, so you can tap it in and drive it rather than fighting it one-handed overhead. The FSCS20 is a USA-made 1/4 inch screw anchor with that point.
7) What is the Metallics part number for this 1/4 x 1-3/4 flat head concrete screw?
FSCS20 is the Metallics part number, sold as a 100 piece box of 1/4 by 1-3/4 inch flat head square drive concrete screws.
