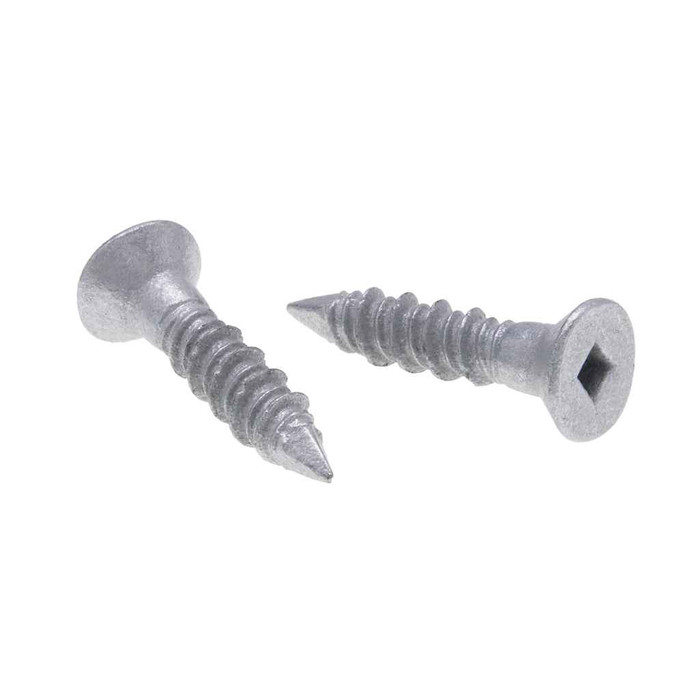

Anchor 1/4 x 2-1/4 Flat Hd Square Drive Concrete Screw Nail Point USA (100pcs)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics FSCS30 – Frequently Asked Questions
1) What size hole do I drill for the Metallics FSCS30 1/4 inch concrete screw?
The FSCS30 is a 1/4 inch diameter concrete screw, and 1/4 inch concrete screws are drilled with a 3/16 inch carbide hammer-drill bit. Drill the hole deeper than the intended embedment so dust has somewhere to go, blow it clean, then drive the screw with the square drive recess. No plastic sleeve or expansion anchor is used; the screw cuts its own threads in the masonry.
2) Is the Metallics FSCS30 a flat head screw that will sit flush in a countersunk hole?
Yes, the FSCS30 has a flat head with a square drive recess, so it seats flush in a countersunk fixture or against a countersunk clip. If you need the head to bear on top of a flat bracket or strut rather than sink into it, a hex head concrete screw is the better choice.
3) Can I use this concrete screw in drywall or wood framing?
No. The FSCS30 is a concrete screw, meant to tap its own thread into a pre-drilled hole in concrete, brick, or block. In wood or drywall it has nothing to bite into and will not hold. Use a wood screw or a hollow-wall anchor for those substrates.
4) Why does this concrete screw have a nail point, and what does that change on the job?
The nail point on the FSCS30 is a sharpened tip that helps the screw find and start in the drilled hole without walking, which matters when you are driving overhead or one-handed off a ladder. It does not let you drive the screw without drilling first; the pilot hole in the concrete or block is still required.
5) How many Metallics FSCS30 concrete screws come in a box?
The FSCS30 is packed 100 pieces per box, which is the usual quantity an electrical or MRO crew buys for a run of strut, conduit clamps, or device box mounting on masonry. They are made in the USA.
6) What is the manufacturer part number for the Metallics 1/4 x 2-1/4 flat head square drive concrete screw?
Metallics catalogs it as FSCS30. That number covers the 1/4 inch by 2-1/4 inch flat head, square drive, nail point concrete screw sold 100 to a box.
