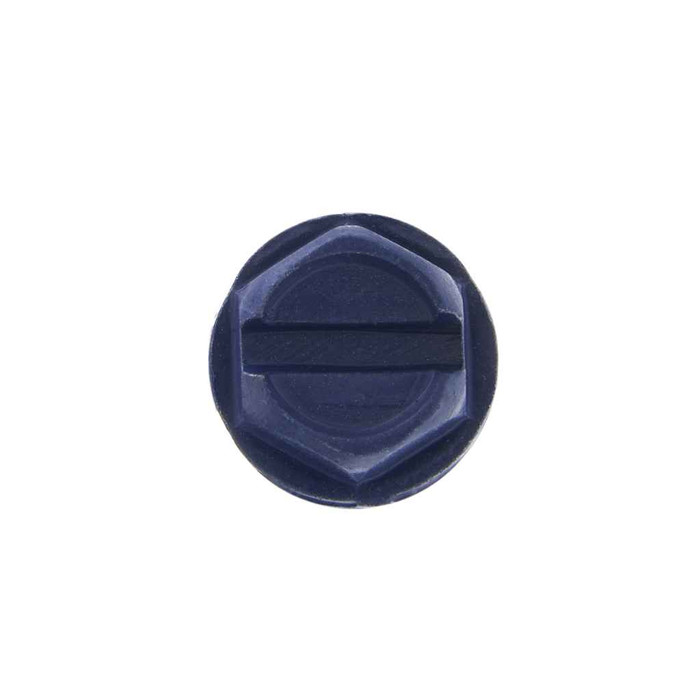

Anchors 1/4 X 1-1/4 Hwh 5/16Hd Sl Blu St-zn (Jar 1000)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics CSH10FM – Frequently Asked Questions
1) Do I need a driver bit or a nut setter for these anchors?
Hex washer head, so you drive it with a 5/16 inch nut setter or socket in an impact driver, not a screwdriver bit. Keep a spare setter on the truck if you are working through a jar of 1000.
2) Can I use these to fasten strut, conduit clamps and boxes to concrete block?
That is the job these are made for. The CSH10FM is an electrical-trade fastener for anchoring straps, clamps, strut and box brackets to concrete, block and brick. The 1-1/4 inch length suits thin fixtures such as one-hole straps and device boxes; for thicker standoffs or strut channel, step up to a longer screw so you keep about 1 inch of embedment.
3) Does the CSH10FM need a plastic or lead shield to be set first?
No shield, no expansion sleeve. It is a screw anchor that cuts its own threads directly into the drilled hole in concrete or masonry, so it is one drill and one drive per fastener. It can also be backed out and removed, unlike a drop-in or sleeve anchor.
4) Are these anchors OK for outdoor or damp locations?
The blue coating on the CSH10FM is a zinc-based corrosion coating on steel, which handles interior and protected exterior work. For permanently wet, coastal or chemically aggressive locations, specify a stainless concrete screw instead.
