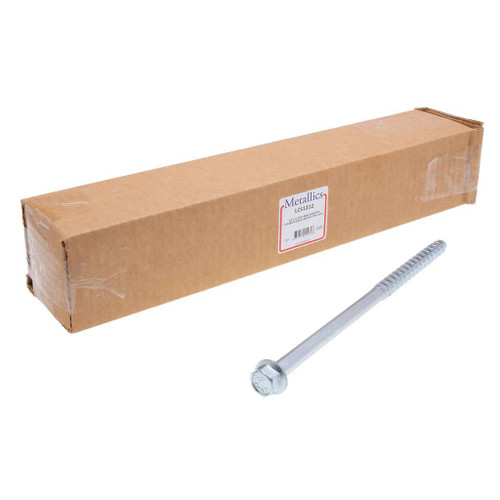

Anchors 3/4 x 4 Hx Hd Lg Dia CS SS (Box 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics LCS3440SS – Frequently Asked Questions
1) Is the LCS3440SS anchor stainless steel or carbon steel?
The LCS3440SS is designated CS SS in its description, so the body is carbon steel with a stainless component in the assembly. If your job calls for an all-stainless anchor for a wet, coastal, or corrosive location, specify a fully stainless anchor instead rather than assuming this one qualifies.
2) What size hole do I drill for a 3/4 inch diameter anchor like this one?
A 3/4 inch large diameter anchor is set in a 3/4 inch hole drilled with a carbide bit in concrete, and the hole must be drilled deeper than the embedment so debris can clear. At 4 inches of overall length, allow for the thickness of the fixture you are fastening plus the head, which leaves the balance as embedment, so thin fixtures get the most hold.
3) Can I use the Metallics LCS3440SS to hang electrical strut, trapeze, or conduit racks from concrete?
Yes, that is the use case. It is a 3/4 by 4 inch hex head anchor catalogued for electrical work, which is the size range used for strut channel, trapeze hangers, transformer and panel mounting, and heavy conduit racking into poured concrete. The hex head drives with a socket wrench, so no separate nut or washer step is needed to set it.
4) Will a 3/4 x 4 anchor work in block or brick instead of poured concrete?
Treat this as a solid concrete anchor. A 3/4 inch large diameter expansion anchor needs solid base material around the full embedment depth, and hollow CMU or brick with voids will not develop the hold. For hollow block, use a toggle or screen tube anchor sized to the wall instead.
5) Do I need anything else to install the LCS3440SS anchor?
On the hardware side, no. The hex head anchor is a one piece assembly set and tightened with a socket wrench, so there is no separate nut, washer, or insert to buy. What you do need on site is a rotary hammer with the matching carbide bit, a blow-out bulb or vacuum to clear the hole, and a torque wrench if the spec on the drawing calls out an installation torque.
