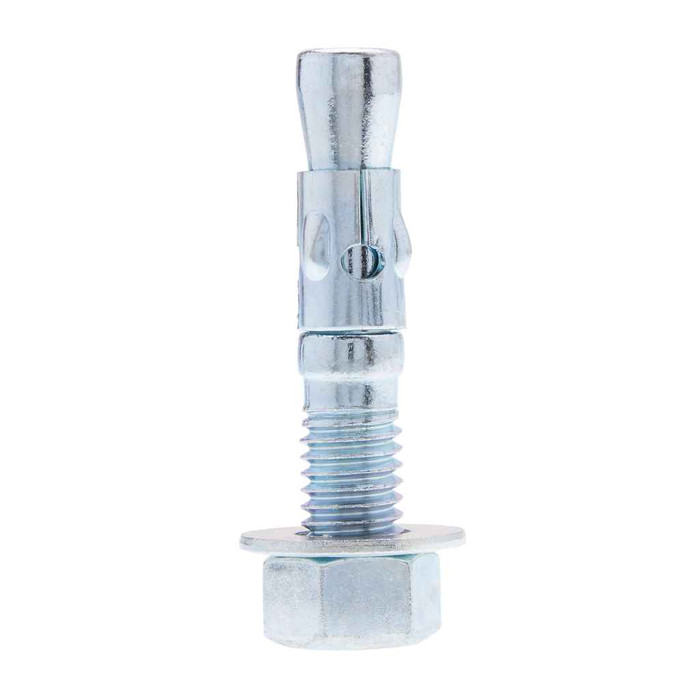

Metallics JTS380G Anchors 3/8 x 2-1/4 Wdg Galv (Jar 50)

Wedge anchors like the JTS380G are made for solid poured concrete. In hollow CMU block the expansion wedge has nothing solid to bite against in the cells, so use a sleeve anchor or a toggle rated for hollow masonry instead. The 2-1/4 inch length also means you need enough solid concrete depth below the surface for full embedment plus drill clearance, so it is not a choice for thin topping slabs or brick veneer.

Total anchor length is 2-1/4 inches, and that length is split between embedment in the concrete and the thickness of what you are clamping plus the nut and washer. On a 3/8 anchor, most of that 2-1/4 inches goes into the hole, so plan on fastening thin material, strut channel, pipe straps, equipment feet, baseplates, rather than a thick timber or a stacked shim pack. If you need more grip, step up to a longer 3/8 anchor.

The JTS380G carries a galvanized finish, which is the reason to pick it over plain zinc for exterior slabs, parking structures, loading docks, and damp mechanical rooms. For submerged or chemically aggressive environments, stainless is the step up.

No. A wedge anchor sets permanently, the clip expands against the hole wall as the nut is torqued and will not come back out of the concrete intact. You can back the nut off and take the fixture away, but the anchor body stays. If you expect to move or service the mount, pick a removable fastener such as a female threaded drop-in or a sleeve anchor instead.

They are the concrete fastener for hanging electrical work: strut and trapeze supports, conduit clamps, panelboard and enclosure backplates, transformer and equipment pads, and threaded rod bases. Metallics files them with its electrical fasteners for exactly that reason, and the 3/8 inch diameter is the common size for strut and rod work.

Order Metallics JTS380G. That single part number covers the 3/8 x 2-1/4 galvanized wedge anchor in the 50 piece jar, there are no finish or length options to specify under it.
