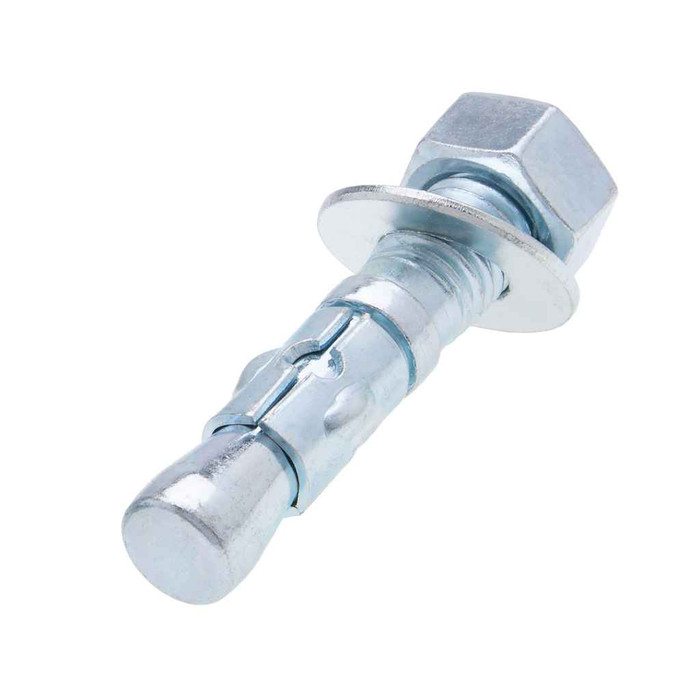

Anchors 5/8 x 10 Wdg St-zn (Box 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics TS510 – Frequently Asked Questions
1) What hole size do I drill for a 5/8 inch wedge anchor like the Metallics TS510?
Wedge anchors are drilled at the same nominal diameter as the anchor, so a 5/8 inch wedge anchor goes into a 5/8 inch carbide bit hole drilled deeper than the embedment you need. The 10 inch length on the TS510 means you need enough concrete depth to take the embedded portion plus the thickness of whatever you are fastening down.
2) Can I use the Metallics TS510 wedge anchor in block or brick instead of poured concrete?
Wedge anchors are a solid-concrete fastener. The expansion clip needs continuous dense material to bite into, so hollow block, brick and grout-filled cells are not the right base for one. For those, use a sleeve anchor or a screen tube with adhesive instead.
3) Is a zinc plated wedge anchor like the TS510 OK for outdoor or wet locations?
Zinc plating is a mild corrosion coating meant for dry interior service. The TS510 is zinc plated steel, so for exterior, damp, or chemically exposed concrete you want a stainless or hot dip galvanized wedge anchor rather than this one.
4) Can I remove a wedge anchor like this after it is set?
No. Once the clip expands, the TS510 is permanent. The nut and washer come off, but the body stays in the concrete, so it has to be cut flush or driven below the surface if you need the slab clear. If you want a removable fastener, use a drop-in anchor with a machine bolt instead.
5) Does the Metallics TS510 come with a nut and washer?
A wedge anchor of this type is supplied as a complete assembly, with the nut and washer on the threaded stud, so you tighten the nut to set the expansion clip. No separate hardware purchase is needed to install the TS510.
