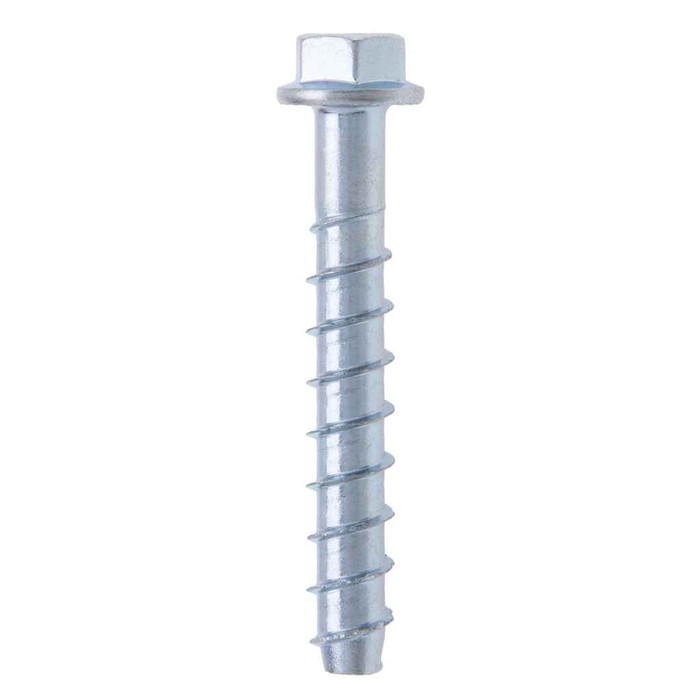

Anchors 5/8 x 6 Hx Hd Lg Dia CS SS (Box 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics LCS5860SS – Frequently Asked Questions
1) Do I need an expansion sleeve or shield with the LCS5860SS, or does it screw straight into concrete?
It is a concrete screw anchor, so it threads directly into a drilled hole in concrete with no sleeve, shield, or setting tool. Drive it with a hex socket on an impact wrench. That makes it faster than a wedge or sleeve anchor and it can be removed if you need to reposition a plate.
2) Is the Metallics LCS5860SS stainless, and can I use it outdoors or in a wet area?
Yes, the LCS5860SS is a stainless steel anchor, which is what you want for exterior pads, rooftop equipment curbs, parking structures, and wash-down or coastal areas where a plain carbon steel anchor would rust and stain the concrete. Pair it with stainless washers and clips so you are not mixing metals at the connection.
3) How much of the 6 inch length is actually embedded in the concrete?
The 6 inches is the overall screw length, so your embedment is 6 inches minus the thickness of whatever you are fastening plus the hex head. Add up your base plate, shim stack, and any washers first, then confirm the remaining embedment meets the load you need. If the fixture is thick, you may need a longer anchor in the same 5/8 inch large diameter family rather than this 6 inch version.
4) Can I use the LCS5860SS in block or brick instead of poured concrete?
It is specified as a concrete screw anchor. In hollow block or brick the holding values are very different from solid concrete and depend on whether you hit a web or a void, so a 6 inch anchor of this diameter is really intended for solid concrete. For hollow masonry, a toggle or sleeve-type masonry anchor is the better choice.
How fast can I get the Metallics LCS5860SS delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics LCS5860SS come with a warranty?
Absolutely. The Metallics LCS5860SS is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics LCS5860SS?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
Why buy the Metallics LCS5860SS from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support,
and
rewards on
every order.
Our team is always ready to help you choose the right product for your project.
