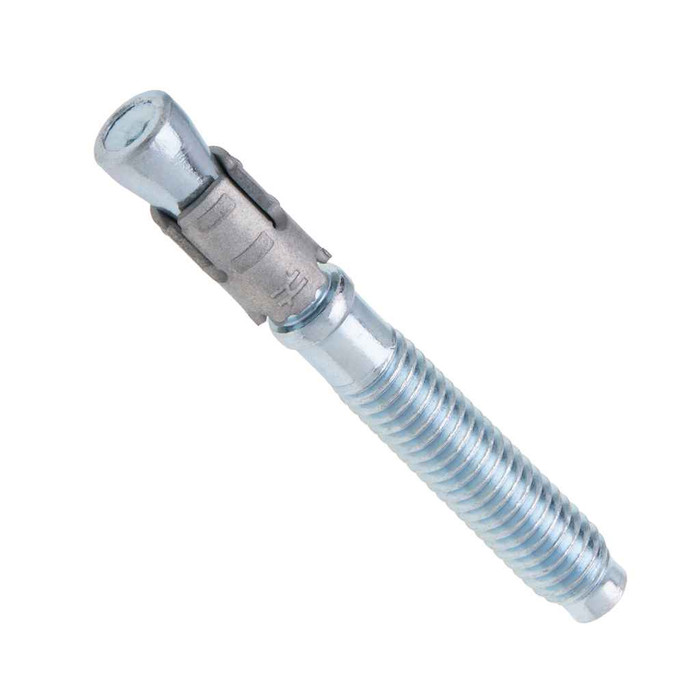

Anchors 5/8 x 7" Cracked Concrete Wed (Jar 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics SWA5870 – Frequently Asked Questions
1) What size hole do I drill for a Metallics SWA5870 wedge anchor?
The SWA5870 is a 5/8 x 7 inch wedge anchor, and wedge anchors use a hole the same nominal diameter as the anchor, so a 5/8 inch carbide bit sized to ANSI tolerances is what you drill. Drill deeper than your intended embedment so dust has somewhere to go, then drive the anchor through the fixture and expand the clip by torquing the nut.
2) Is the SWA5870 anchor approved for cracked concrete?
Yes, it is a cracked concrete rated wedge anchor, which is what inspectors look for when the anchorage is in a tension zone or a seismic application. A standard wedge anchor qualified only for uncracked concrete will not satisfy that condition.
3) Will a 7 inch long wedge anchor work for mounting strut, transformers, or equipment bases to a slab?
The 7 inch length on the SWA5870 gives you a long embedment plus enough stick-out to clear a thick fixture, grout bed, or stacked base plate. Total length has to cover the fixture thickness, the washer and nut, and your required embedment depth. For a thin bracket on a slab, a shorter 5/8 inch wedge anchor is the more economical choice.
4) Can I use a Metallics SWA5870 wedge anchor in hollow block or brick?
No. Wedge anchors rely on expansion against solid concrete and are for poured concrete only. In hollow CMU or brick, use a sleeve anchor or a screen tube with adhesive instead.
5) How many anchors come in a jar of Metallics SWA5870?
Ten anchors per jar. The pack type is a jar rather than a bulk box, so for a large anchor layout plan on multiple jars.
How fast can I get the Metallics SWA5870 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics SWA5870 come with a warranty?
Absolutely. The Metallics SWA5870 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics SWA5870?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
