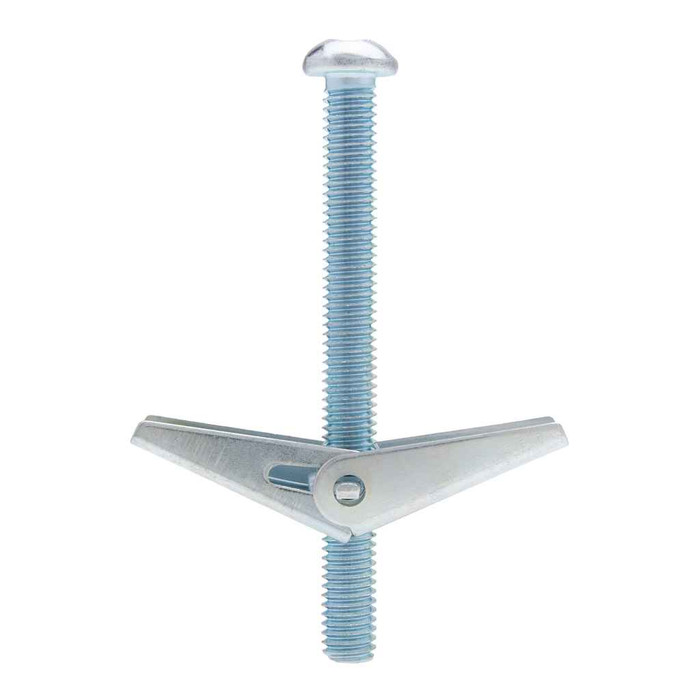

Metallics Industries Spring Wing Toggle Bolt Anchor 3/16" #10 3"

Professional Hollow Wall Fastening Solution

The Metallics Industries Spring Wing Toggle Bolt Anchor delivers exceptional performance and reliability for hollow wall mounting applications. This professional-grade anchor provides dependable fastening solutions designed for professional contractors, electricians, and industrial technicians, offering the proven quality and precision engineering that professionals trust from a leading manufacturer of electrical hardware and industrial fasteners.

Professional Features & Benefits

Superior Holding Power

  • Spring Wing Design - Provides maximum holding strength in hollow walls with wings that spring open behind the wall surface for secure anchoring
  • 3/16" Bolt with #10 Threading - Offers optimal diameter and thread configuration for reliable fastening performance in drywall and hollow masonry applications
  • 3" Length Configuration - Designed to accommodate various wall thicknesses while providing adequate thread engagement for secure mounting
  • Professional Jar Packaging - Convenient 50-piece jar packaging ensures organized storage and easy access for contractors and technicians

Installation Efficiency

  • Quick Installation Process - Spring-loaded wings collapse for easy insertion and automatically deploy for secure anchoring
  • Versatile Wall Compatibility - Engineered for reliable performance in drywall, plasterboard, and hollow masonry applications
  • Professional Load Capacity - Designed to support electrical fixtures, hardware mounting, and light to medium-duty applications

Technical Specifications

Bolt Diameter: 3/16", Thread Size: #10, Length: 3", Product Subgroup: Anchors, Product Group: Fasteners, Product Family: Electrical Supplies, Pack Type: Jar, Quantity: 50 pieces, Department: Electrical, Division: Electrical H1

Installation & Usage

  1. Drill appropriate pilot hole in hollow wall surface to accommodate collapsed wing assembly
  2. Compress spring wings and insert toggle bolt assembly through pilot hole until wings clear wall surface
  3. Pull bolt outward gently to ensure wings have fully deployed and are seated against back of wall
  4. Position mounting hardware or fixture over bolt and secure with appropriate washer and nut
  5. Tighten fastener gradually to achieve proper clamping force without over-stressing the wall material
  6. Verify secure installation by testing mounted item stability before applying full load

Professional Applications

Ideal for:

  • Electrical Installations - Mounting electrical boxes, conduit supports, and fixture brackets in hollow wall construction
  • HVAC Systems - Securing ductwork supports, register mounting, and ventilation equipment in drywall applications
  • Plumbing Applications - Installing pipe supports, fixture mounting brackets, and plumbing hardware in hollow walls
  • Construction Fastening - General construction mounting applications requiring reliable hollow wall anchoring solutions
  • Industrial Assembly - Equipment mounting and bracket installation in commercial and industrial hollow wall systems
  • Building Maintenance - Repair and replacement applications for existing hollow wall mounted fixtures and equipment
  • Hardware Mounting - Installing shelving brackets, equipment supports, and mounting hardware in drywall construction
  • Commercial Applications - Office and commercial building installations requiring professional-grade hollow wall fastening

Spring Wing Toggle Advantage

The spring wing toggle design provides superior holding power compared to standard hollow wall anchors by distributing load across a larger surface area behind the wall. The automatic wing deployment ensures consistent installation results, while the professional-grade construction delivers reliable performance for demanding electrical and construction applications.

Why Choose Metallics Industries Quality?

Metallics Industries demonstrates unwavering commitment to precision manufacturing and quality control excellence in electrical hardware and industrial fasteners. Our professional-grade materials and reliable performance standards make us the trusted choice for contractors, electricians, and industrial professionals. With comprehensive product testing and superior engineering, Metallics Industries provides dependable fastening solutions for electrical, plumbing, HVAC, and construction applications, backed by our reputation for manufacturing excellence and professional reliability.

Manufacturer Resources

Product Specs

Division:
Electrical H1
Pack Type:
Jar
Product Family:
Electrical Supplies
Product Group:
Fasteners
Sub Division:
Electrical-E H2
Department:
Electrical
Product Subgroup:
Anchors

Metallics J1506 – Frequently Asked Questions

1) What size hole do I drill for a 3/16 inch spring wing toggle bolt?
Drill a hole large enough to pass the wings folded flat alongside the bolt, not just the 3/16 inch shank. On a toggle this size that is typically a 1/2 inch bit. Fold the wings against the bolt, push the assembly through until they clear the back of the board, then pull back on the bolt so the wings seat flat against the inside face before you tighten. Undersizing the hole is the usual reason a toggle will not go in.
2) Are toggle bolts strong enough to hang an electrical box or conduit support on drywall?
For light to medium duty, yes. The spring wing toggle spreads load across a wide footprint on the back face of the board rather than gripping the hole itself, which is why it outperforms plastic expansion anchors in hollow wall. Metallics lists the J1506 for mounting electrical boxes, conduit supports, and fixture brackets, plus HVAC register and duct supports and pipe brackets. For heavy equipment or anything overhead and life-safety related, anchor into structure instead.
3) Will a spring wing toggle bolt work in a solid concrete or brick wall?
No. The J1506 is a hollow wall anchor, it needs open cavity behind the surface for the wings to open. In solid concrete, grouted CMU, or solid brick there is nowhere for the toggle to deploy and it will not set. Use a sleeve anchor, wedge anchor, or screw anchor for solid base material. The toggle is for drywall, plasterboard, and hollow masonry such as ungrouted block.
4) Can I remove the fixture later without losing the toggle in the wall?
No. On a spring wing toggle like the J1506, the wing nut is captive only while the bolt is threaded into it. Back the bolt all the way out and the toggle drops into the wall cavity and is gone. Plan for that: if the item you are hanging may come down and go back up, use a toggle-style anchor that stays in the wall, or accept that you will drill a new hole and burn another anchor. It is one reason these ship by the jar rather than in small counts.
5) What thread and nut do I need to match this toggle bolt?
The bolt is #10 thread on a 3/16 inch body, so any washer, nut, or mounting hole you pair with it needs to suit a #10-24 machine screw. That matters when you are bolting through a strut clip, a box ear, or a bracket, the through-hole has to clear the shank without letting the head pull through, so use a flat washer under the head on soft or slotted brackets.
6) How much cavity depth do I need behind the wall for these toggles?
Enough for the wings to swing to full open and lie flat against the back of the board. Behind standard stud-framed drywall that is never an issue, but watch for insulation packed tight, a stud or blocking directly behind your hole, or a furred-out wall over masonry with only a shallow air gap. If the wings cannot rotate fully, the anchor never seats and it will spin when you tighten. Probe the hole with a stiff wire before you commit on an unfamiliar wall.
7) What is the Metallics part number for the 3/16 inch by 3 inch spring wing toggle bolt?
J1506 is the Metallics part number for the spring wing toggle bolt anchor with a 3/16 inch, #10 thread bolt and 3 inch length, supplied in a jar.
