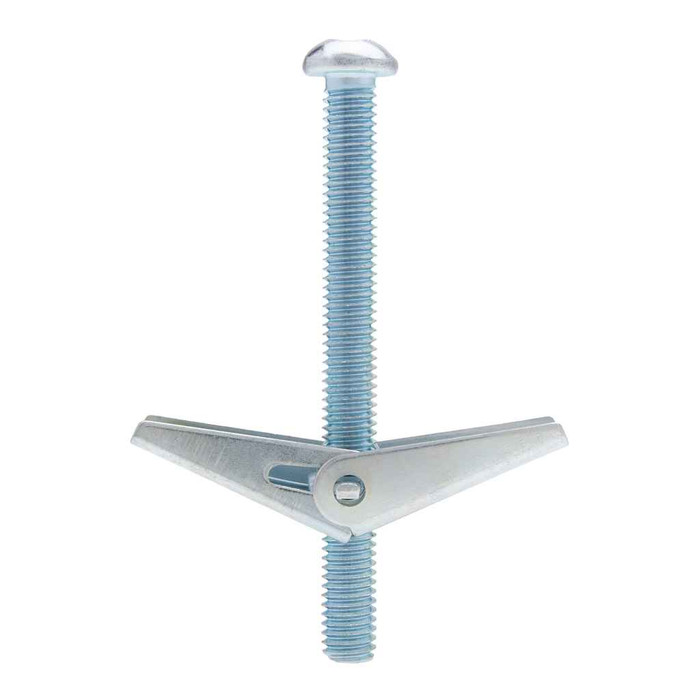

Metallics J1507SS Anchors Sprg Wing TogBt Rh Sl 3/16"x4" SS(Jar50)

Spring wing toggles like the J1507SS are made for hollow walls, drywall, plaster and hollow block, where the wings open out behind the facing and spread the load across the back of the panel. They are not a solid-concrete anchor. For solid masonry or poured concrete, use a sleeve, wedge or screw anchor instead, since the toggle has nothing to spring into.

They ship 50 per jar. The jar pack is the standard put-up for this item, so an electrician stocking a van or a shop crib buys it in that quantity rather than as loose pieces.

The SS in J1507SS is stainless, which is what you want for damp or corrosive locations: exterior soffits, parking structures, kitchens, pool rooms, coastal buildings and wash-down areas. In a dry conditioned interior a plated carbon steel toggle does the same mechanical job, so the stainless version is usually specified for the environment rather than for strength.

The hole has to be large enough for the folded wings to pass through, not just the 3/16 inch bolt, so it is noticeably bigger than the bolt diameter. Fold the wings flat against the shank, push them through the wall, and they snap open on the back side. Once the wings are through they cannot be recovered if the bolt is withdrawn, so the fixture needs to be on the bolt before you set it.

That is the normal use. Metallics catalogues the J1507SS as an electrical fastener, and a 3/16 x 4 inch stainless spring wing toggle is the typical pick for anchoring boxes, small enclosures, conduit straps and light brackets to drywall, plaster or hollow block where there is no stud or solid backing to screw into.

It is a round head, slotted bolt, so it drives with a flat blade screwdriver. Slotted heads are easy to cam out under power, so hand-tighten the last turns once the wings seat against the back of the wall.
